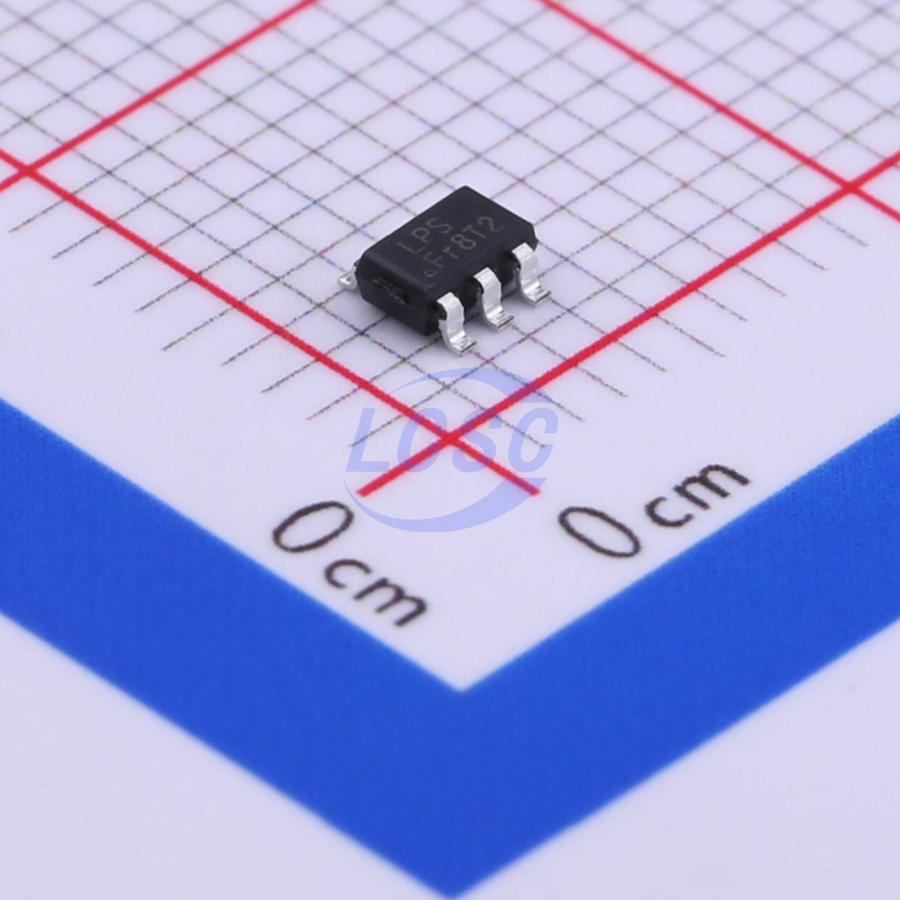

LOWPOWER

LP3318B5F

1MHz Boost Adjustable 2.7V~36V SOT-23-5 Voltage Regulators - DC DC Switching Regulators

SOT-23-5RoHSActive

1MHz, 24V/3A High Performance Boost Converter

Manufacturer: LOWPOWER
Manufacturer part #: LP3318B5F
Store part #: C387700
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,990 in stock

#C387700

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹10.88	₹54.40
50+	₹8.67	₹433.50
150+	₹7.55	₹1,132.50
500+	₹6.72	₹3,360.00
3,000+	₹5.82	₹17,460.00
6,000+	₹5.49	₹32,940.00

Quantity (min 5, multiples of 5)

5 × ₹10.88

₹54.40

excl. GST

₹64.19 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LP3318B5F

₹54.40 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 1MHz
Function: Boost
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Light load efficient mode
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.7V~6V
Switch tube (built-in/external): Built-in
Output Voltage: 2.7V~36V
Quiescent Current: 400uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.023 g

Overview

The LP3318 is a boost DC-DC converter. Its PWM circuitry with built-in 1.5A current power MOSFET makes this converter highly power efficiently. The LP3318 implements a constant frequency 1MHz PWM control scheme. The high frequency PWM operation also saves board space by reducing external component sizes. The LP3318 features automatic shifting to pulse frequency modulation mode at light loads. Highly integration and internal compensation network minimizes as 6 external component counts. Optimized operation frequency can meet the requirement of small LC filters value and low operation current with high efficiency. The LP3318 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The LP3318 is available in a small 5-pin SOT23-5 package.
