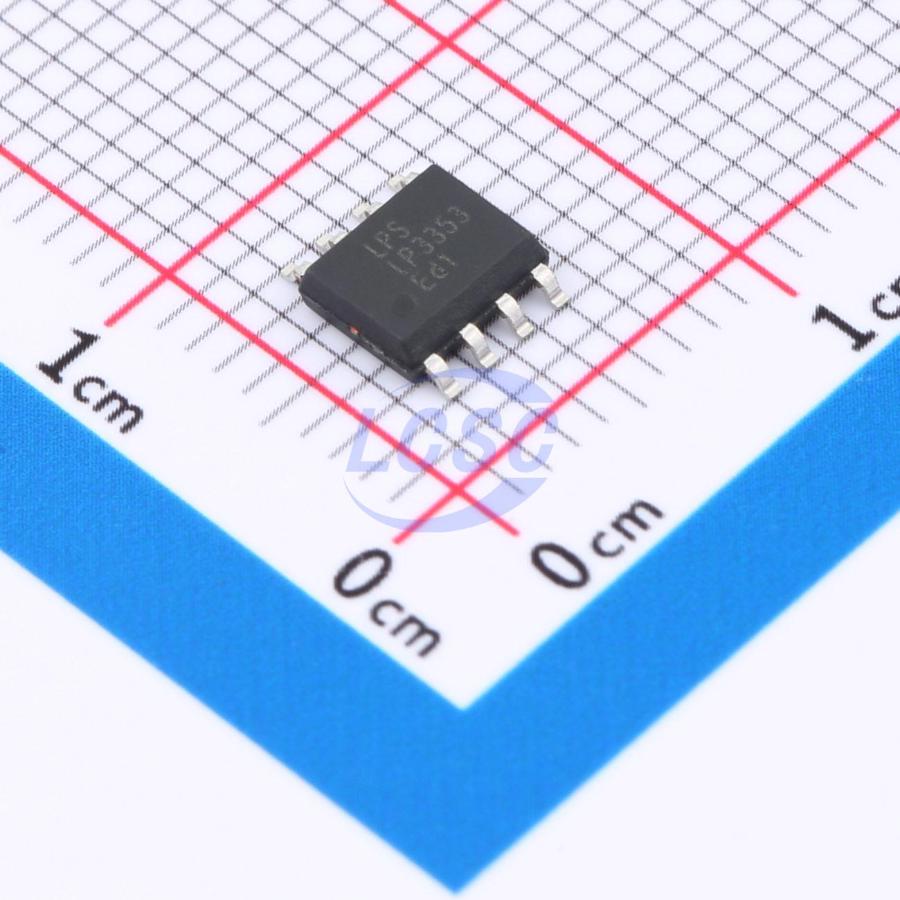

LOWPOWER

LP3353SOF

LED Driver IC Boost PWM Dimming SOP-8

SOP-8RoHSActive

LED Driver with PWM Dimming Control

Manufacturer: LOWPOWER
Manufacturer part #: LP3353SOF
Store part #: C47345736
Package / case: SOP-8
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,805 in stock

#C47345736

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹39.03	₹195.15
50+	₹30.98	₹1,549.00
150+	₹27.53	₹4,129.50
500+	₹23.23	₹11,615.00
2,500+	₹21.33	₹53,325.00
4,000+	₹20.18	₹80,720.00

Quantity (min 5, multiples of 5)

5 × ₹39.03

₹195.15

excl. GST

₹230.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

LP3353SOF

₹195.15 for 5 + GST

Specifications

Features: Over Voltage Protection;Built-in soft-start;Short Circuit Protection;Over-Temperature Protection (OTP)
Frequency - Switching: 120kHz
Switch Tube (Built-In/External): External
Operating temperature: -40℃~+85℃
Topology: Boost
Voltage - Input(DC): 7V~26V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.209 g

Overview

LP3353 is a cost-effective LED driver optimized for LCD monitor and LCD TV backlight applications. It delivers a high-performance LED backlight solution while minimizing BOM cost. The device integrates a PWM boost driver operating in current-mode control at fixed frequency to regulate LED current. LED current is sensed via an external current-sense resistor. The voltage across the sense resistor is compared to a 0.4V reference level, and the error amplifier adjusts the power switch pulse width accordingly to regulate LED current. In addition, LP3353 supports external frequency PWM dimming for wide-range dimming control. Additional features include overcurrent protection, overvoltage protection, and undervoltage lockout. LP3353 is available in a space-saving SOP-8 package.
