LOWPOWERDatasheet (PDF)

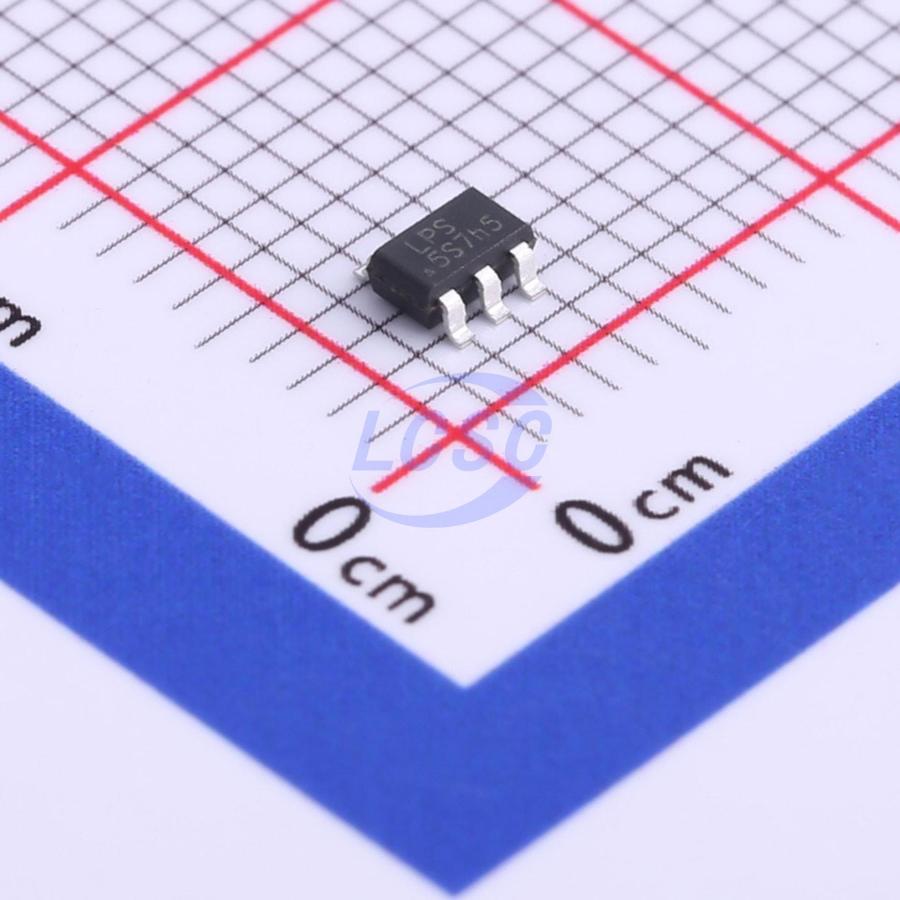

LP6210B6F
Boost Switching Regulator IC Adjustable 2.5V~24V 1 Output 2A SOT-23-6
SOT-23-6RoHSActive
Boost Ultra-Compact PWM/PFM Switching Control DC/DC Controller
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP6210B6F
- Store part #
- C517046
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,800 in stock
#C517046
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.73 | ₹163.65 |
| 50+ | ₹28.79 | ₹1,439.50 |
| 150+ | ₹27.10 | ₹4,065.00 |
| 500+ | ₹24.99 | ₹12,495.00 |
| 3,000+ | ₹24.05 | ₹72,150.00 |
| 6,000+ | ₹23.50 | ₹1,41,000.00 |
| 9,000+ | ₹23.21 | ₹2,08,890.00 |
| 21,000+ | ₹23.02 | ₹4,83,420.00 |
5 × ₹32.73
₹163.65
excl. GST
₹193.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP6210B6F
₹163.65 for 5 + GST
Specifications
- Operating Temperature
- -25℃~+85℃
- Function
- Boost
- Frequency - Switching
- 500kHz
- Number of Outputs
- 1
- Features
- Light load efficient mode
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.2V~5.5V
- Switch tube (built-in/external)
- External
- Output Voltage
- 2.5V~24V
- Output Current
- 2A
- Quiescent Current
- 150uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.065 g
Overview
LP6210 is a CMOS boost DC/DC controller comprising a voltage reference, oscillator circuit, error amplifier, phase compensation circuit, and PWM/PFM switching control circuit. By using an external low on-resistance N-channel power MOSFET, it is suitable for applications requiring high efficiency and high output current. Through the PWM/PFM switching control circuit, when the load is light, the operating mode switches to PFM control with a duty cycle of 13%, preventing efficiency degradation caused by the IC's operating current.
Applications
- Power banks
- Bluetooth devices
- Audio equipment
- Portable communication devices
- Gaming consoles
- Digital cameras
Key features
- Low-voltage operation: guaranteed startup at 0.9 V (IOUT = 1 mA)
- Duty cycle: built-in PWM/PFM switching control circuit (13~85%)
- Oscillation frequency: 500 KHz
- Output voltage: 1.5~24 V
- Output voltage accuracy: ±2%
- Soft-start: 2.2 mS
- On/off control function
- External components: inductor, diode, capacitor, MOSFET
- Package: SOT-23-6L
