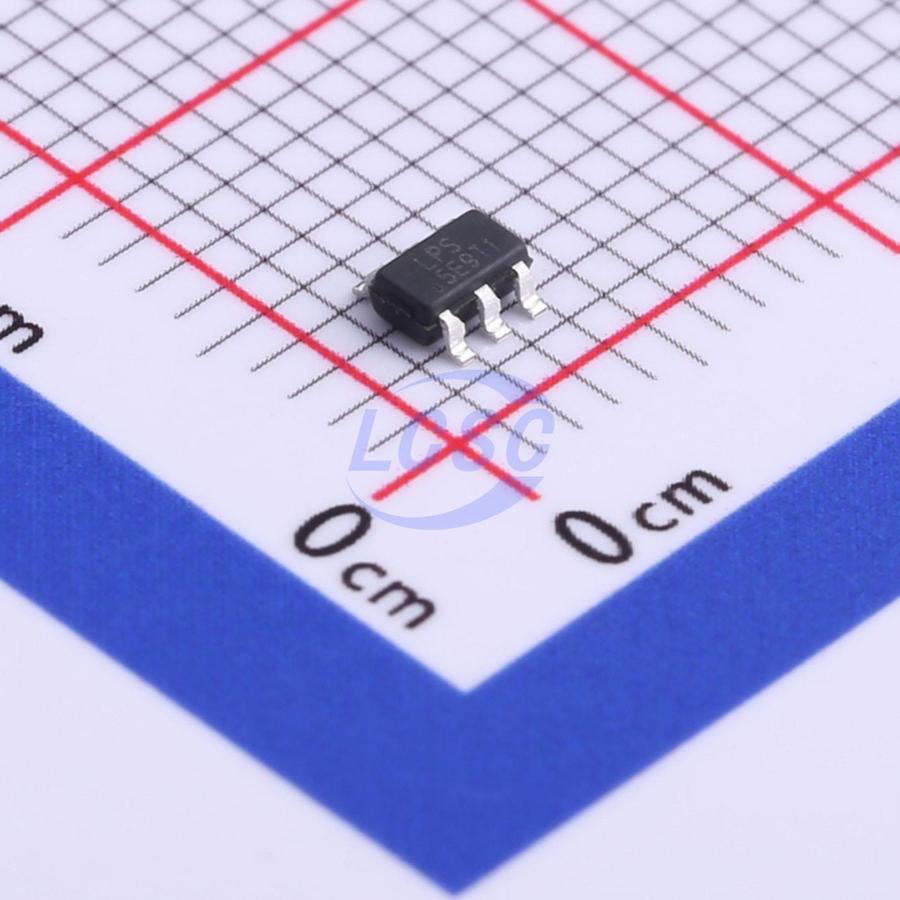

LOWPOWER

LP6216B6F

Boost 1MHz Adjustable 2.5V~24V 3A SOT-23-6 Voltage Regulators - DC DC Switching Regulators

SOT-23-6RoHSActive

High Efficiency 3A Boost DC/DC Convertor

Manufacturer: LOWPOWER
Manufacturer part #: LP6216B6F
Store part #: C517048
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,210 in stock

#C517048

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹25.28	₹126.40
50+	₹20.03	₹1,001.50
150+	₹17.77	₹2,665.50
500+	₹14.96	₹7,480.00
3,000+	₹13.71	₹41,130.00
6,000+	₹12.97	₹77,820.00

Quantity (min 5, multiples of 5)

5 × ₹25.28

₹126.40

excl. GST

₹149.15 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LP6216B6F

₹126.40 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Function: Boost
Frequency - Switching: 1MHz
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.5V~24V
Switch tube (built-in/external): Built-in
Output Voltage: 2.5V~24V
Output Current: 3A
Quiescent Current: 350uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.065 g

Overview

The LP6216 is a current mode boost DC-DC converter. Its PWM circuitry with built-in 3A current power MOSFET makes this converter highly power efficiently. The LP6216 implements a constant frequency 1MHz PWM control scheme. The high frequency PWM operation also saves board space by reducing external component sizes. The LP6216 features automatic shifting to pulse frequency modulation mode at light loads. Highly integration and internal compensation network minimizes as 6 external component counts. Optimized operation frequency can meet the requirement of small LC filters value and low operation current with high efficiency. The LP6216 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The LP6216 is available in a small 6-pin SOT23-6 package.
