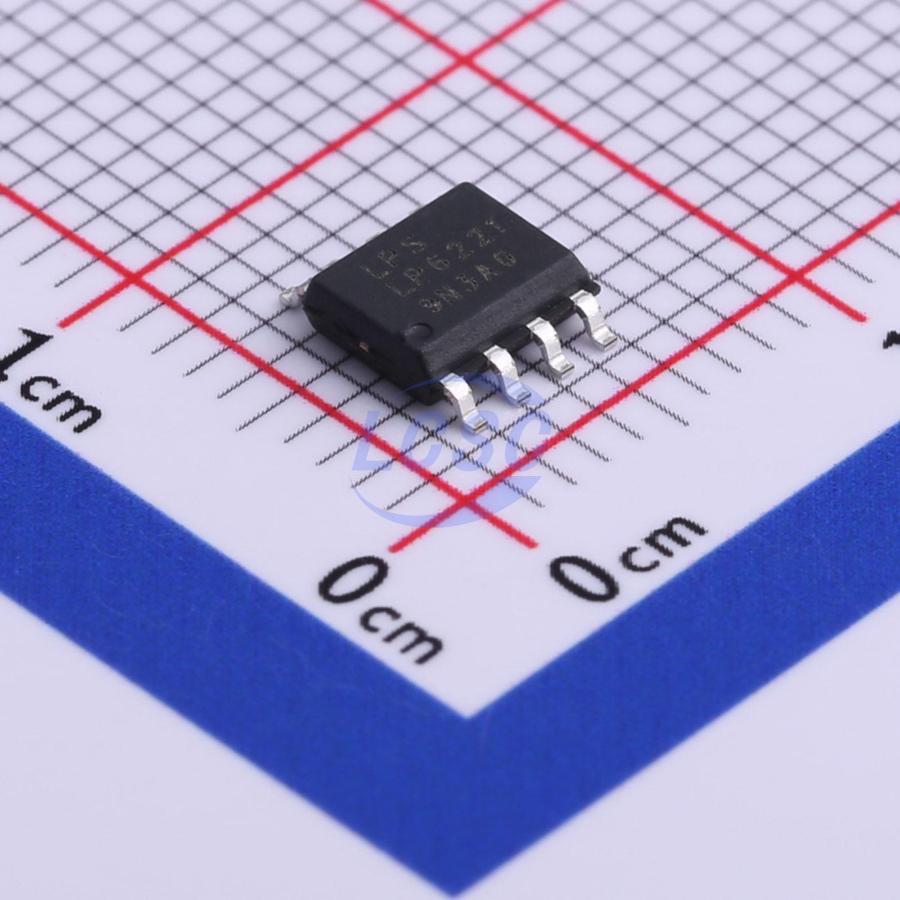

LOWPOWER

LP6221ASPF

Boost 500kHz Adjustable 20V 10A SOP-8-EP Voltage Regulators - DC DC Switching Regulators

SOP-8-EPRoHSActive

High Efficiency 10A Boost DC/DC Convertor

Manufacturer: LOWPOWER
Manufacturer part #: LP6221ASPF
Store part #: C517052
Package / case: SOP-8-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,371 in stock

#C517052

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹57.46	₹57.46
10+	₹45.33	₹453.30
30+	₹40.11	₹1,203.30
100+	₹33.83	₹3,383.00
500+	₹31.01	₹15,505.00
1,000+	₹29.28	₹29,280.00

Quantity (min 1)

1 × ₹57.46

₹57.46

excl. GST

₹67.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

LP6221ASPF

₹57.46 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TJ)
Function: Boost
Frequency - Switching: 500kHz
Number of Outputs: 1
Features: Adjustable current limiting;Cycle-by-cycle current limiting;Overcurrent Protection;Load disconnect
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.6V~15V
Switch tube (built-in/external): Built-in
Output Voltage: 20V
Output Current: 10A
Quiescent Current: 150uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.151 g

Overview

The LP6221A is a current mode boost DC-DC converter. Its PWM circuitry with built-in 10A current power MOSFET makes this converter highly power efficiently. The LP6221A implements a constant frequency 500KHz PWM control scheme. The LP6221A can drive up to 20V output voltage. The LP6221A includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The LP6221A is available in ESOP-8 package.
