LOWPOWERDatasheet (PDF)

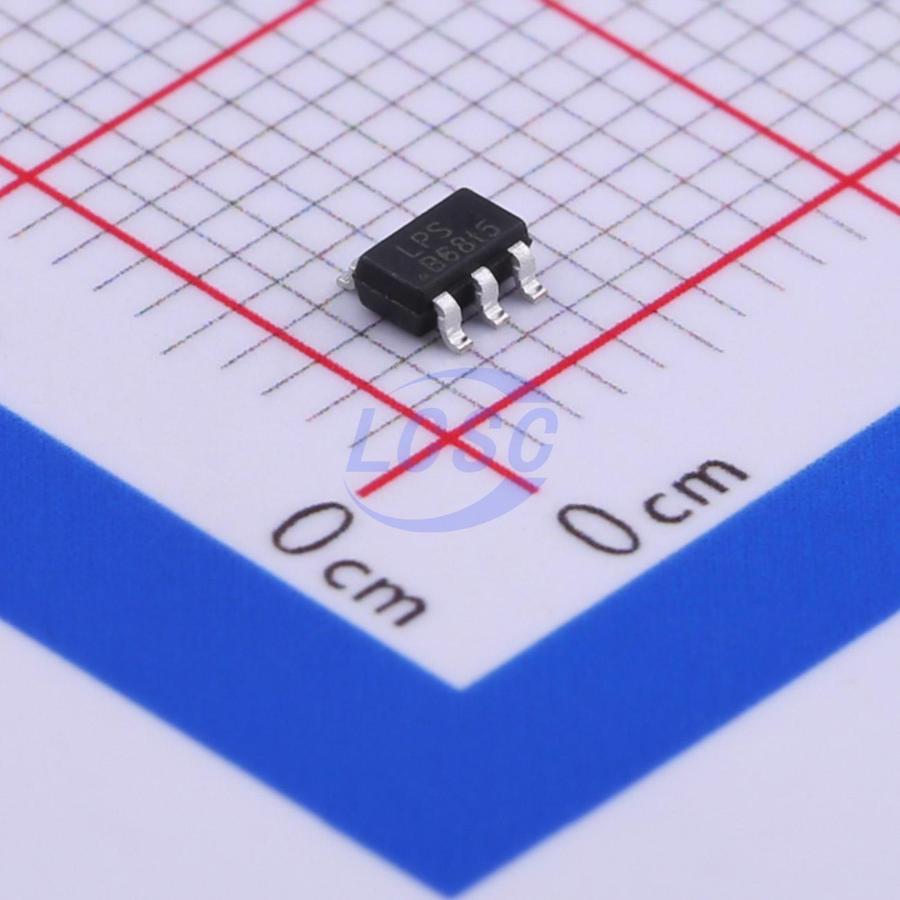

LP6238B6F
Boost 1MHz Adjustable 2.5V~9V 2.6A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
High Efficiency 2.6A Boost DC/DC Convertor
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP6238B6F
- Store part #
- C387749
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,045 in stock
#C387749
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.32 | ₹66.60 |
| 50+ | ₹10.73 | ₹536.50 |
| 150+ | ₹9.43 | ₹1,414.50 |
| 500+ | ₹8.47 | ₹4,235.00 |
| 3,000+ | ₹7.41 | ₹22,230.00 |
| 6,000+ | ₹7.03 | ₹42,180.00 |
5 × ₹13.32
₹66.60
excl. GST
₹78.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP6238B6F
₹66.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Function
- Boost
- Frequency - Switching
- 1MHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Light load efficient mode;Load disconnect
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2.5V~9V
- Output Current
- 2.6A
- Quiescent Current
- 190uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
The LP6238 is a current mode boost DC-DC converter. Its PWM circuitry with built-in 2.6A current power MOSFET makes this converter highly power efficiently. The LP6238 implements a constant frequency 1MHz PWM control scheme. The high frequency PWM operation also saves board space by reducing external component sizes. The LP6238 features automatic shifting to pulse frequency modulation mode at light loads. Highly integration and internal compensation network minimizes as 6 external component counts. Optimized operation frequency can meet the requirement of small LC filters value and low operation current with high efficiency. The LP6238 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The LP6238 is available in a small 6-pin SOT23-6 package.
Applications
- Battery products
- Host Products
- Panel
Key features
- Up to 90% efficiency
- Output to Input Disconnect at Shutdown Mode
- Shut-down current: <1uA
- Output voltage Up to 9V
- Internal Compensation, Soft-start
- 1MHz fixed frequency switching
- High switch on current: 2.6A
- Available in SOT23-6 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP6226B6F#C517053LOWPOWER · SOT-23-6 | LOWPOWER | SOT-23-6 | On request | Price on request | Quote |
