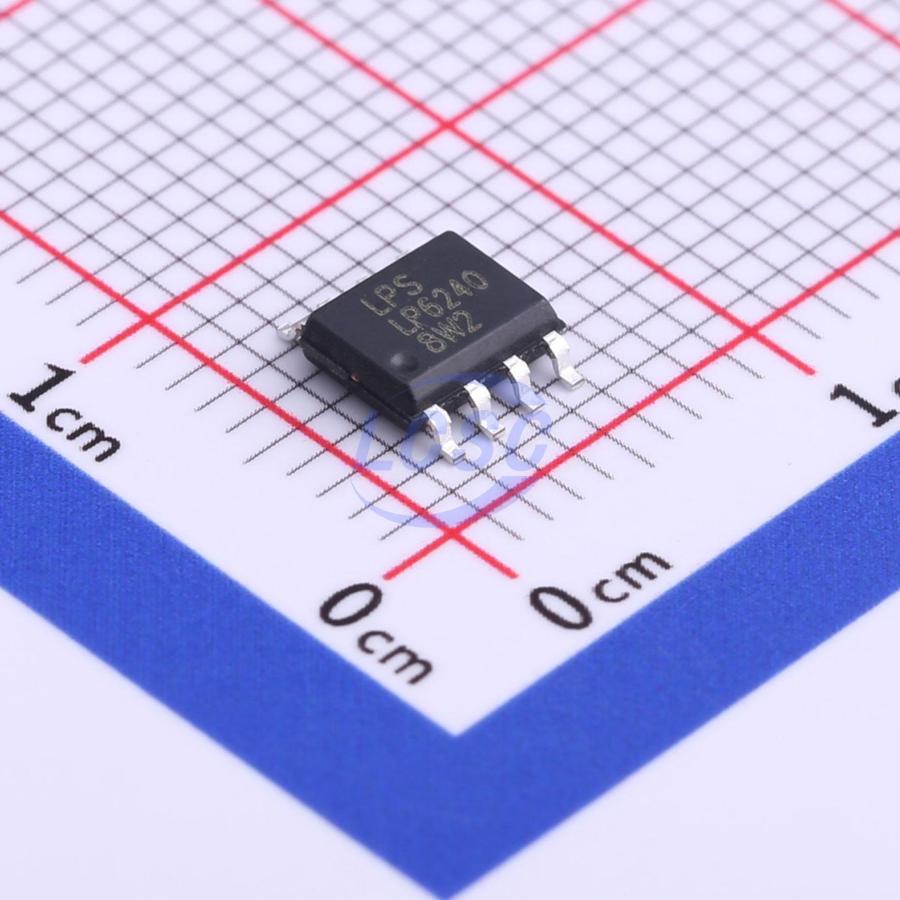

LP6240SOF

Boost Switching Regulator IC Adjustable 1 Output SOP-8

SOP-8RoHSActive

High Efficiency Boost DC/DC Controller

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,930 in stock

#C517062

Stock & price checked 6 days ago

Quantity (min 1)

1 × ₹56.78

₹56.78

excl. GST

₹67.00 incl. 18% GST

LP6240SOF

₹56.78 for 1 + GST

Specifications

Operating Temperature: -40℃~+150℃
Function: Boost
Frequency - Switching: 600kHz
Number of Outputs: 1
Features: Adjustable current limiting;Overcurrent Protection;Hiccup current limiting
Output Type: Adjustable
Topology: Boost
Operating Voltage: 4.5V~24V
Switch tube (built-in/external): External
Quiescent Current: 4mA

The LP6240 is a high performance non-synchronous boost converter controller that drives all N-channel power MOSFETs.
Synchronous rectification increases efficiency, reduces power losses and eases thermal requirements, allowing the LP6240 to be used in high power boost applications.
A 4.5V to 24V input supply range encompasses a wide range of system architectures.
The LP6240 features operating fixed-frequency at 600kHz and a 1.215V reference voltage.
The CS pin can adjustable the current limited and slope compensation by permutations the external resistor.
Other features include over current protection (OCP), output over voltage protection (OVP), and under-voltage lockout (UVLO).
The LP6240 is available in a space saving SOP-8 (0.5mm pitch) package.
