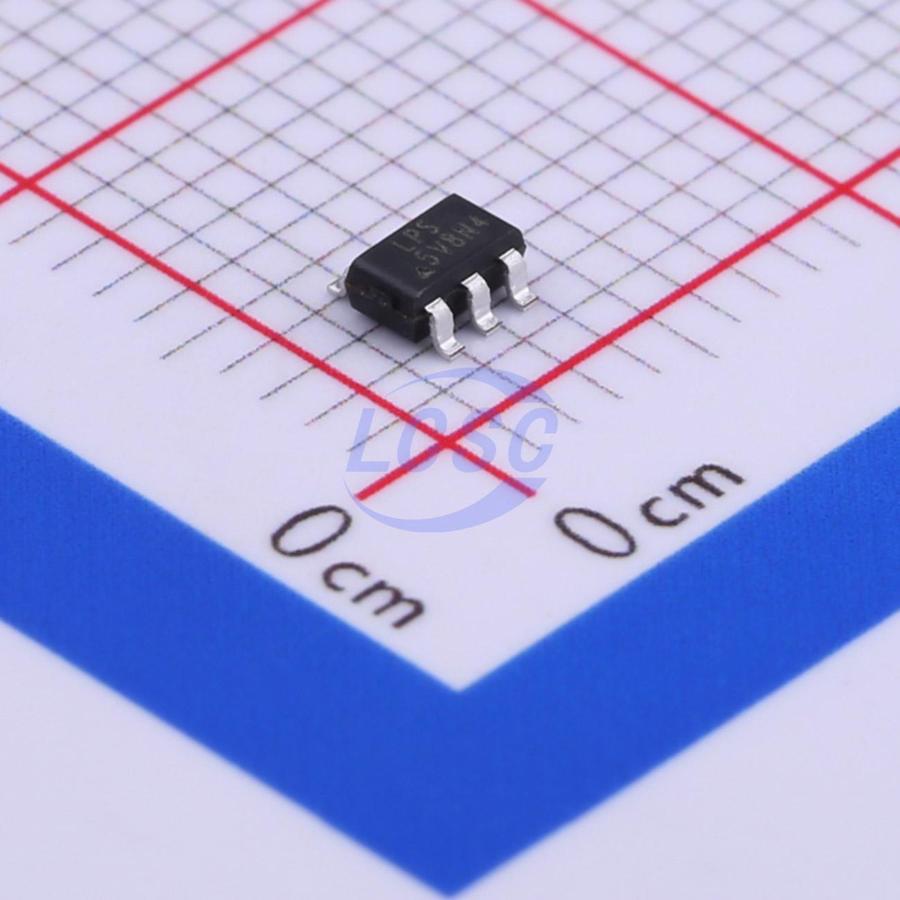

LP6252B6F
Boost 1MHz Adjustable 2.5V~5.4V 3A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
High Efficiency 2.7A Synchronous Boost Convertor
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP6252B6F
- Store part #
- C387748
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,950 in stock
#C387748
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.68 | ₹138.40 |
| 50+ | ₹21.90 | ₹1,095.00 |
| 150+ | ₹19.42 | ₹2,913.00 |
| 500+ | ₹16.34 | ₹8,170.00 |
| 3,000+ | ₹12.99 | ₹38,970.00 |
| 6,000+ | ₹12.16 | ₹72,960.00 |
5 × ₹27.68
₹138.40
excl. GST
₹163.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP6252B6F
₹138.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Function
- Boost
- Frequency - Switching
- 1MHz
- Number of Outputs
- 1
- Features
- Load disconnect;Output discharge;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2.5V~5.4V
- Output Current
- 3A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
The LP6252 is a Synchronous current mode boost DC-DC converter. Its PWM circuitry with built-in 2.7A Current power MOSFET makes this converter highly power efficiently. Selectable high switching frequency allows faster loop response and easy filtering with a low noise output. The non-inverting input its error amplifier is connected to an internal 800mV precision reference voltage. Current mode control and compensation network make it easy and flexible to stabilize the system.
Applications
- Battery products
- Host Products
- Panel
Key features
- Up to 95% efficiency
- Output to Input Disconnect at Shutdown Mode
- Shut-down current: <1uA
- Output voltage Up to 5.5V
- Over Output Voltage Protection
- Over Current Protection
- Over Temperature Protection
- Internal Compensation of Soft-start
- 1MHz fixed frequency switching
- High switch on current: 2.7A
- Available in SOT23-6 and TDFN-6 Package
