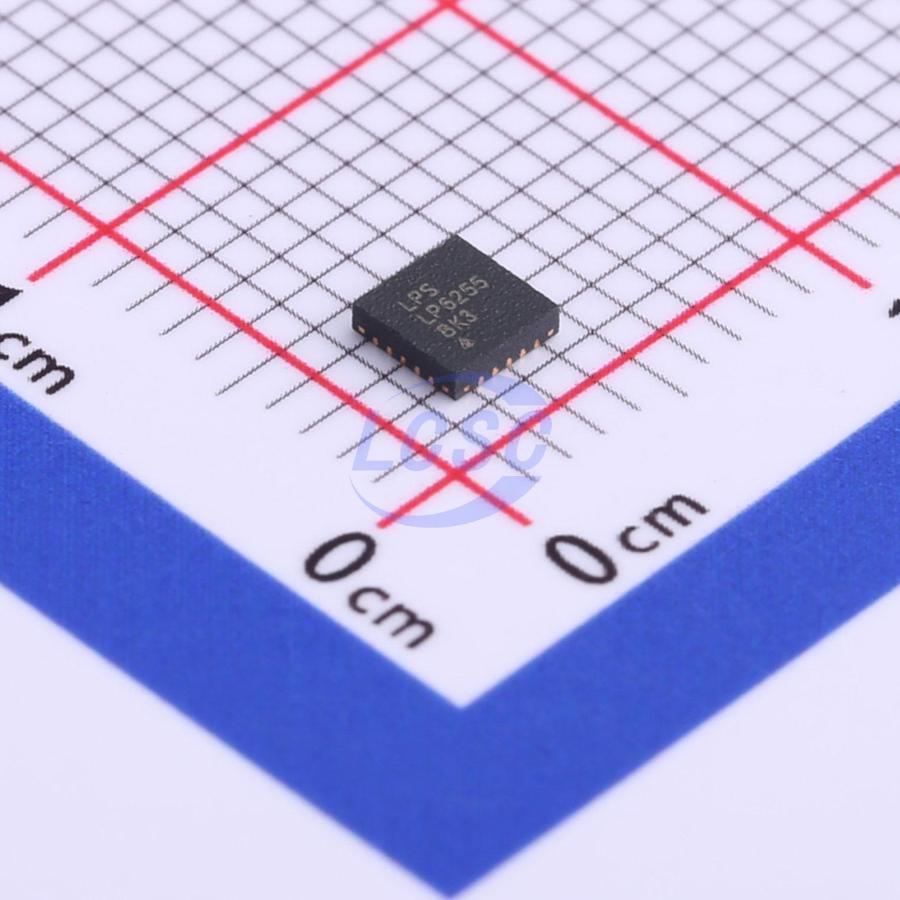

LOWPOWER

LP6255QVF

Boost 250kHz Adjustable 2.8V~30V QFN-20-EP(3x3) Voltage Regulators - DC DC Switching Regulators

QFN-20-EP(3x3)RoHSActive

High Efficiency Synchronous Boost Converter

Manufacturer: LOWPOWER
Manufacturer part #: LP6255QVF
Store part #: C517065
Package / case: QFN-20-EP(3x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,386 in stock

#C517065

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹62.80	₹62.80
10+	₹56.28	₹562.80
30+	₹53.03	₹1,590.90
100+	₹49.77	₹4,977.00
500+	₹44.12	₹22,060.00
1,000+	₹43.25	₹43,250.00

Quantity (min 1)

1 × ₹62.80

₹62.80

excl. GST

₹74.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

LP6255QVF

₹62.80 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Function: Boost
Frequency - Switching: 250kHz
Number of Outputs: 1
Features: Adjustable current limiting;Cycle-by-cycle current limiting;Hiccup current limiting;External compensation;Frequency synchronization;Built-in LDO regulator
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.5V~30V
Switch tube (built-in/external): External
Output Voltage: 2.8V~30V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.094 g

Overview

The LP6255 is a Synchronous current mode boost DC-DC converter with external N-channel MOSFET for large power output. Programmable high switching frequency allows wide application range and easy setting with a few capacitors or resistors. Its error amplifier is connected to an internal 1.31V precision reference voltage. Current mode control and external compensation network make it easy and flexible to stabilize the system.
