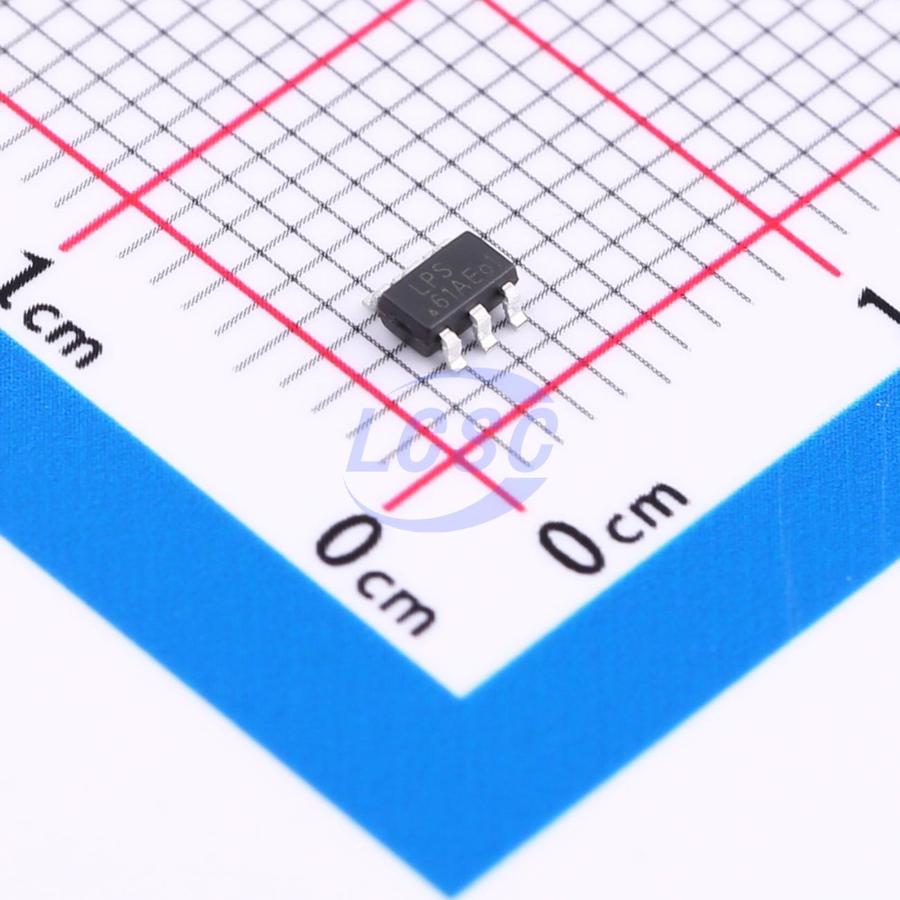

LOWPOWER

LP62610B6F

1.2MHz Boost Fixed 5V~5.2V SOT-23-6 Voltage Regulators - DC DC Switching Regulators

SOT-23-6RoHSActive

Ultra low IQ Synchronous Boost Convertor

Manufacturer: LOWPOWER
Manufacturer part #: LP62610B6F
Store part #: C42460082
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,295 in stock

#C42460082

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹32.36	₹161.80
50+	₹25.79	₹1,289.50
150+	₹22.98	₹3,447.00
500+	₹19.46	₹9,730.00
3,000+	₹17.90	₹53,700.00
6,000+	₹16.96	₹1,01,760.00

Quantity (min 5, multiples of 5)

5 × ₹32.36

₹161.80

excl. GST

₹190.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LP62610B6F

₹161.80 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 1.2MHz
Function: Boost
Number of Outputs: 1
Features: Load disconnect;Overcurrent Protection;Cycle-by-cycle current limiting
Output Type: Fixed
Topology: Boost
Operating Voltage: 1V~5V
Switch tube (built-in/external): Built-in
Output Voltage: 5V~5.2V
Quiescent Current: 1uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.051 g

Overview

The LP62610 device is a synchronous boost convertor with ultra-low quiescent current. It features a true-shutoff function that disconnects the input and output during shutdown and output short-circuit conditions. The LP62610 only consumes 1uA quiescent current under light load condition and can achieve up to 75% efficiency at 20uA load. It can achieve up to 93% efficiency at 200mA load from 3.3V to 5V conversion.
