LOWPOWERDatasheet (PDF)

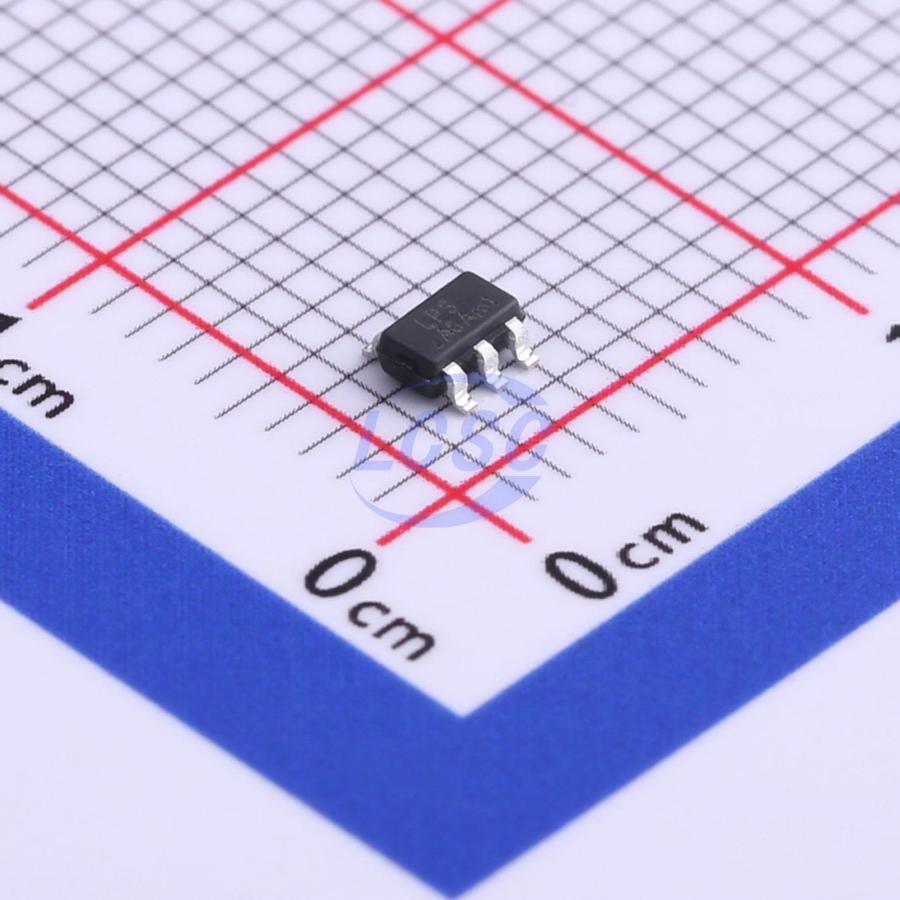

LP6460B6F
Step-down type 600kHz Adjustable 600mV~12V 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
600KHz, 16V/2A Synchronous Step-down Converter
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP6460B6F
- Store part #
- C517161
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,390 in stock
#C517161
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.27 | ₹66.35 |
| 50+ | ₹10.54 | ₹527.00 |
| 150+ | ₹9.19 | ₹1,378.50 |
| 500+ | ₹8.18 | ₹4,090.00 |
| 3,000+ | ₹7.36 | ₹22,080.00 |
| 6,000+ | ₹6.95 | ₹41,700.00 |
5 × ₹13.27
₹66.35
excl. GST
₹78.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP6460B6F
₹66.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Function
- Step-down type
- Frequency - Switching
- 600kHz
- Number of Outputs
- 1
- Features
- Overcurrent Protection;Hiccup current limiting
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~16V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~12V
- Output Current
- 2A
- Quiescent Current
- 450uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
LP6460 is a standalone 500KHz constant frequency, current mode PWM synchronous buck converter. The converter integrates both the main switch and synchronous rectifier, achieving high efficiency without an external Schottky diode. It is well suited for portable devices powered by 2-cell lithium-ion batteries. The converter delivers 2000mA load current from a 4.5V to 16V input voltage, with output voltage adjustable down to 0.6V. The LP6460 is available in a SOT23-6 package and is rated for an operating temperature range of -40℃ to 85℃.
Applications
- Portable media players
- Cellular phones & smartphones
- PDAs/digital cameras
- GPS applications
Key features
- Input voltage range: 4.5V to 16V
- Output voltage range: 0.6V to 12V
- Channel load current: 2000mA
- Efficiency up to 96%
- Shutdown current less than 10μA
- Switching frequency: 500KHz
- Short-circuit protection
- Thermal fault protection
- SOT23-6 package
- RoHS compliant and 100% lead-free
