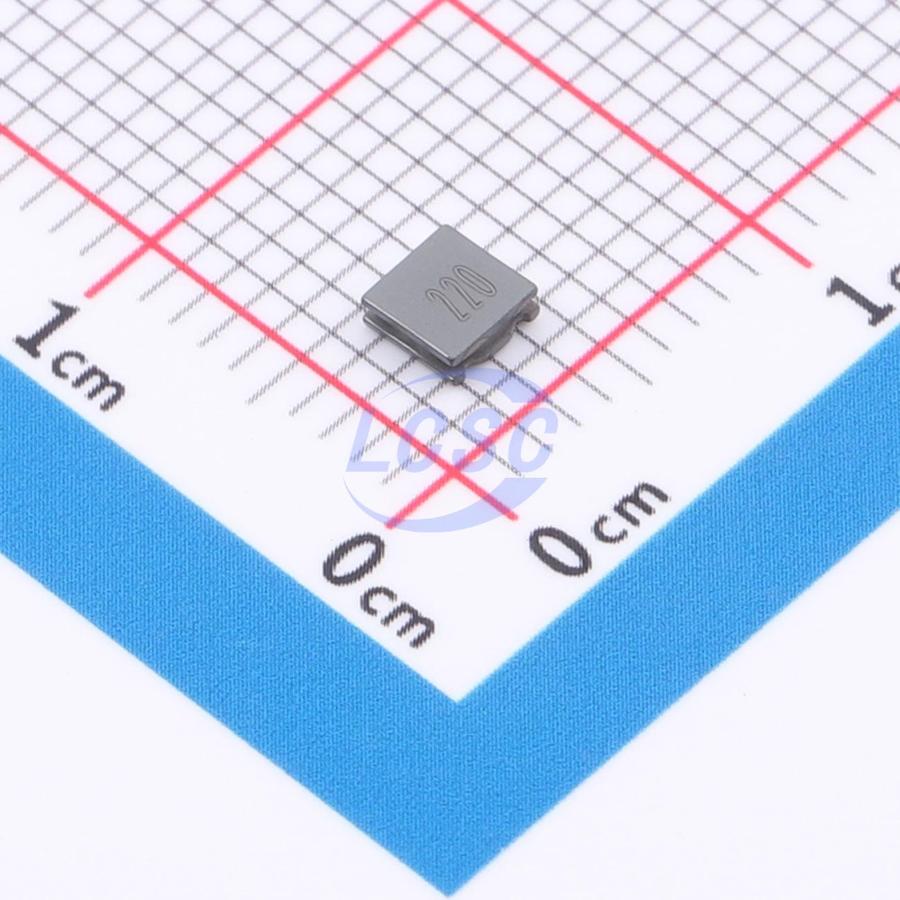

LQH3NPZ220MJRL muRata

LQH3NPZ220MJRL

800mA 22uH ±20% 600mΩ 520mA 1212 Fixed Inductors RoHS

1212ROHS3 CompliantActive

FIXED IND 22uH 600mΩ 1212

Manufacturer: muRata
Manufacturer part #: LQH3NPZ220MJRL
Store part #: C5664547
Package / case: 1212
Category: Fixed Inductors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

795 in stock

#C5664547

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
5+	₹26.20	₹131.00
50+	₹20.81	₹1,040.50
150+	₹18.50	₹2,775.00
500+	₹15.61	₹7,805.00
2,000+	₹14.33	₹28,660.00
4,000+	₹13.56	₹54,240.00

Quantity (min 5, multiples of 5)

5 × ₹26.20

₹131.00

excl. GST

₹154.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

LQH3NPZ220MJRL

₹131.00 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current Rating: 800mA
Inductance: 22uH
Tolerance: ±20%
DC Resistance(DCR): 600mΩ
Current - Saturation(Isat): 520mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.063 g

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	XFL3012-223MEC#C3911490Coilcraft · 1212	Coilcraft	1212	509	₹343.34 · 509 in stock	View
	SRN3012BTA-220M#C19947585BOURNS · 1212	BOURNS	1212	4	₹58.68 · 4 in stock	View
	SRN3015BTA-220M#C19947601BOURNS · 1212	BOURNS	1212	26	₹43.99 · 26 in stock	View
	LQH3NPH220MMEL#C1016572muRata · SMD,3x3mm	muRata	SMD,3x3mm	100	₹82.77 · 100 in stock	View
	VLS3015CX-220M-1#C3222413TDK · SMD,3x3mm	TDK	SMD,3x3mm	2,970	₹21.34 · 2,970 in stock	View
