LRCDatasheet (PDF)

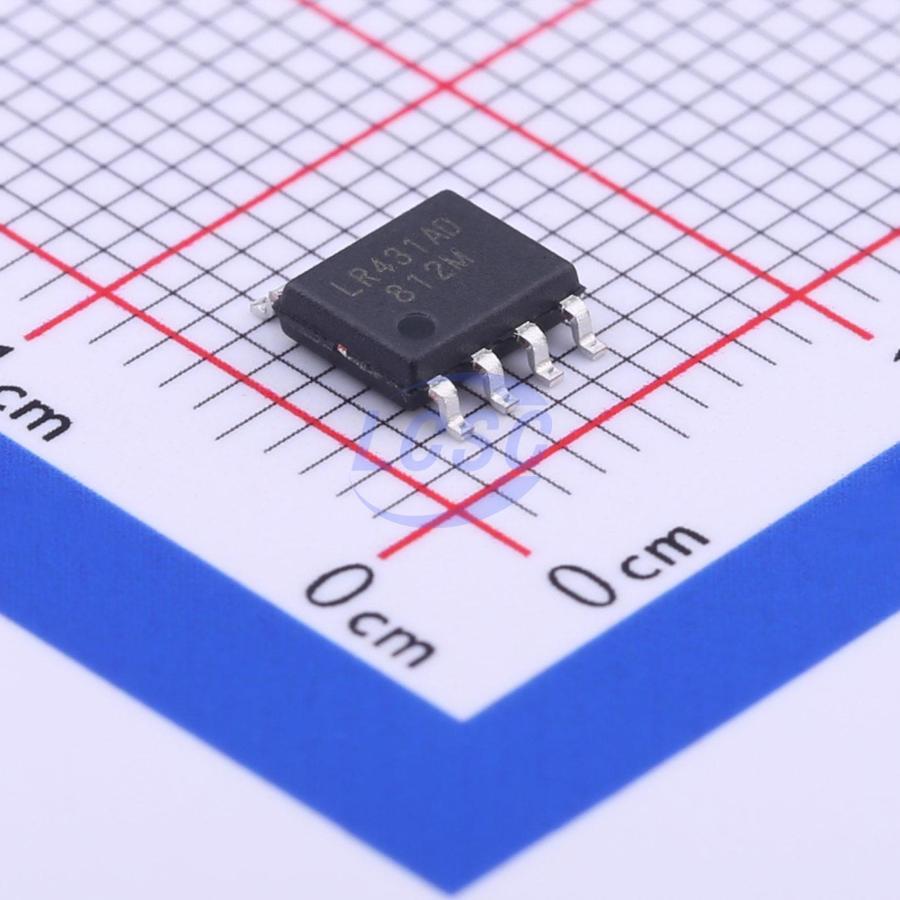

LR431AD
2.487V~36V ±0.5% 2.487V~36V 100mA Adjustable SOP-8 Voltage Reference
SOP-8RoHSActive
Programmable Precision Reference
- Manufacturer
- LRC
- Manufacturer part #
- LR431AD
- Store part #
- C411183
- Package / case
- SOP-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,830 in stock
#C411183
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.07 | ₹110.70 |
| 100+ | ₹9.22 | ₹922.00 |
| 300+ | ₹8.30 | ₹2,490.00 |
| 1,000+ | ₹7.61 | ₹7,610.00 |
| 4,000+ | ₹7.05 | ₹28,200.00 |
| 8,000+ | ₹6.77 | ₹54,160.00 |
| 20,000+ | ₹6.71 | ₹1,34,200.00 |
| 40,000+ | ₹6.67 | ₹2,66,800.00 |
10 × ₹11.07
₹110.70
excl. GST
₹130.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LR431AD
₹110.70 for 10 + GST
Specifications
- Quiescent Current
- 1uA
- Output Voltage
- 2.487V~36V
- Tolerance
- ±0.5%
- Voltage - Supply
- 2.487V~36V
- Minimum Cathode Current for Regulation
- 300uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.158 g
Overview
The LR431 is a three-terminal adjustable regulator with a guaranteed thermal stability over applicable temperature ranges. The output voltage may be set to any value between Vref (approximately 2.5V) and 36V with two external resistors. It provides very wide applications, including shunt regulator, series regulator, switching regulator, voltage reference and others.
Key features
- SOP-8
- Programmable output Voltage to 36V.
- Low dynamic output impedance 0.2Ω
- Sink current capability of 1 to 100mA.
- Equivalent full-range temperature coefficient of 50ppm/°C typical for operation over full rated operating temperature range.
- We declare that material of product compliance with ROHS requirements.
- ESD: HBM 4000V
