LRCDatasheet (PDF)

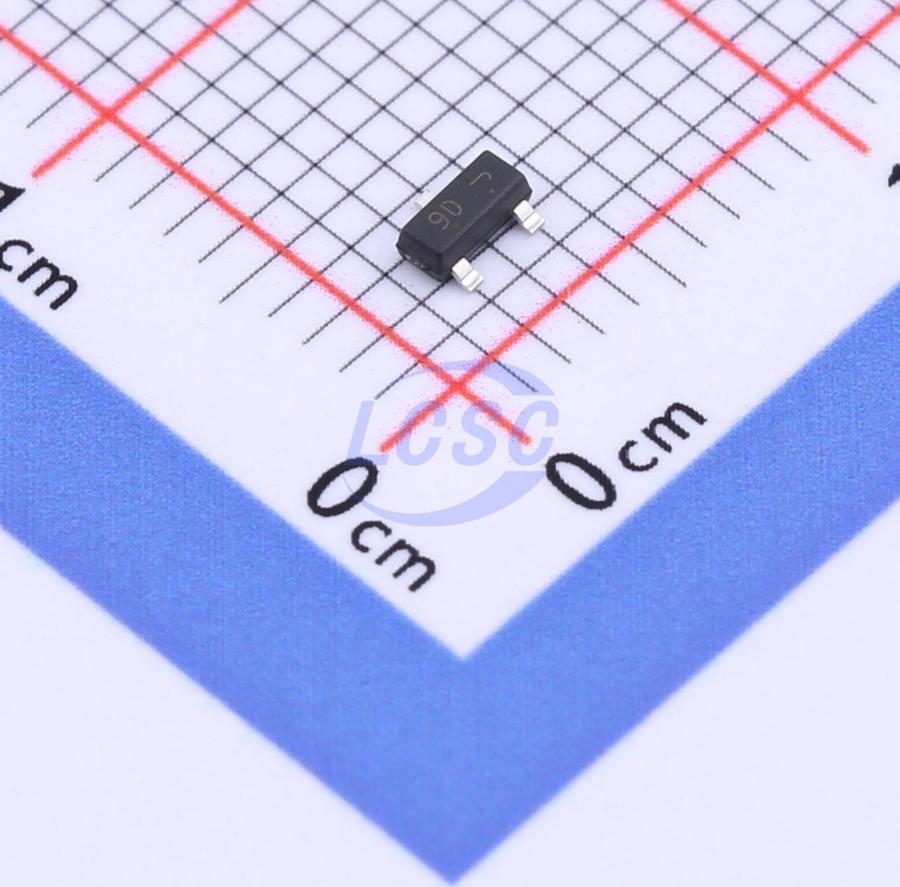

LR432ATLT1G
1.24V~18V ±1% 1.24V~18V 100mA Adjustable SOT-23 Voltage Reference
SOT-23RoHSActive
Programmable Precision Reference
- Manufacturer
- LRC
- Manufacturer part #
- LR432ATLT1G
- Store part #
- C2916239
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,700 in stock
#C2916239
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.33 | ₹103.30 |
| 100+ | ₹8.45 | ₹845.00 |
| 300+ | ₹7.51 | ₹2,253.00 |
| 3,000+ | ₹6.81 | ₹20,430.00 |
| 6,000+ | ₹6.24 | ₹37,440.00 |
| 9,000+ | ₹5.97 | ₹53,730.00 |
10 × ₹10.33
₹103.30
excl. GST
₹121.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR432ATLT1G
₹103.30 for 10 + GST
Specifications
- Output Voltage
- 1.24V~18V
- Tolerance
- ±1%
- Voltage - Supply
- 1.24V~18V
- Minimum Cathode Current for Regulation
- 55uA
- Reference Type
- Series;Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.025 g
Overview
The LR432ATLT1G is a three-terminal adjustable regulator with a guaranteed thermal stability over applicable temperature ranges. The output voltage may be set to any value between V_REF (approximately 1.24V) and 18V with two external resistors. It provides very wide applications, including shunt regulator, series regulator, switching regulator, voltage reference and others.
Key features
- Precise Reference Voltage to 1.24V Guaranteed 0.5% Reference Voltage Tolerance
- Sink Current Capability, 55μA to 100mA
- Quick Turn-on
- Adjustable Output Voltage, Vo = V_REF to 18V
- 0.05Ω Typical Output Impedance
- The material of product is ROHS compliant and does not contain any Br, Cl, and Sb2O3
- ESD HBM 7000V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LR432ALT1G#C83169LRC · SOT-23 | LRC | SOT-23 | 3,060 | ₹8.72 · 3,060 in stock | View |
