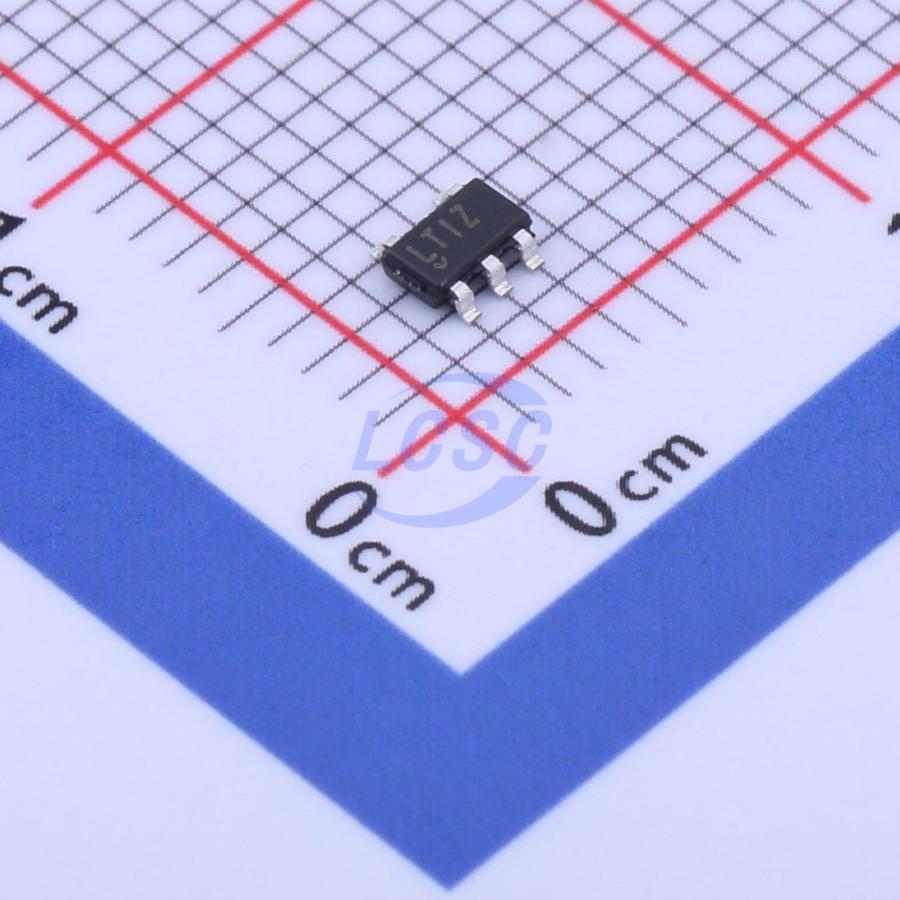

LT1615ES5#TRPBF

The LT1615/LT1615-1 are micropower step-up DC/DC converters in a 5-lead low profile (1mm) ThinSOT package. The LT1615 is designed for higher power systems with a 350mA current limit and an input voltage range of 1.2V to 15V, whereas the LT1615-1 is intended for lower power and single-cell applications with a 100mA current limit and an extended input voltage range of 1V to 15V. Otherwise, the two devices are functionally equivalent. Both devices feature a quiescent current of only 20μA at no load, which further reduces to 0.5μA in shutdown. A current limited, fixed off-time control scheme conserves operating current, resulting in high efficiency over a broad range of load current. The 36V switch allows high voltage outputs up to 34V to be easily generated in a simple boost topology without the use of costly transformers. The LT1615’s low off-time of 400ns permits the use of tiny, low profile inductors and capacitors to minimize footprint and cost in space-conscious portable applications.

Applications

• LCD Bias
• Handheld Computers
• Battery Backup
• Digital Cameras
• 1-Cell Li-Ion to 20V Converter for LCD Bias

Key features

• Low Quiescent Current: 20μA in Active Mode <1μA in Shutdown Mode
• Operates with VIN as Low as 1V
• Low VCESAT Switch: 250mV at 300mA
• Uses Small Surface Mount Components
• High Output Voltage: Up to 34V
• Low Profile (1mm) ThinSOT Package
