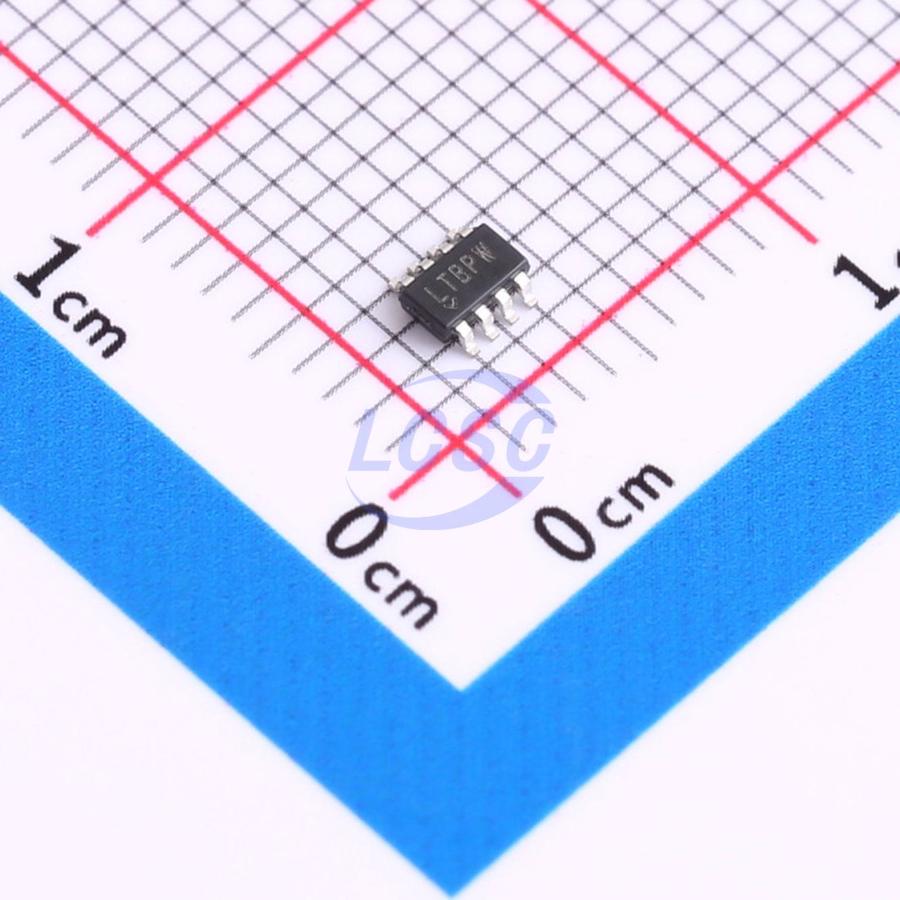

LT3470ITS8#TRMPBF

The LT3470 is a micropower step-down DC/DC converter that integrates a 300mA power switch, catch diode and boost diode into low profile 3mm x 2mm DD and ThinSOT packages. The LT3470 combines Burst Mode and continuous operation to allow the use of tiny inductor and capacitors while providing a low ripple output to loads of up to 200mA. With its wide input range of 4V to 40V, the LT3470 can regulate a wide variety of power sources, from 2-cell Li‑Ion batteries to unregulated wall transformers and lead-acid batteries. Quiescent current in regulation is just 26µA in a typical application while a zero current shutdown mode disconnects the load from the input source, simplifying power management in battery-powered systems. Fast current limiting and hysteretic control protects the LT3470 and external components against shorted outputs, even at 40V input.

Applications

• Automotive Battery Regulation
• Power for Portable Products
• Distributed Supply Regulation
• Industrial Supplies
• Wall Transformer Regulation

Key features

• Low Quiescent Current: 26µA at 12VIN to 3.3VOUT
• Integrated Boost and Catch Diodes
• Input Range: 4V to 40V
• Low Output Ripple: <10mV
• <1µA in Shutdown Mode
• Output Voltage: 1.25V to 16V
• 200mA Output Current
• Hysteretic Mode Control
• Low Ripple Burst Mode(overline) Operation at Light Loads
• Continuous Operation at Higher Loads
• Solution Size as Small as 50mm2
• Low Profile (0.75mm) 3mm×2mm Thermally Enhanced 8-Lead DD and 1mm ThinSOT Packages
• AEC-Q100 Qualified for Automotive Applications
