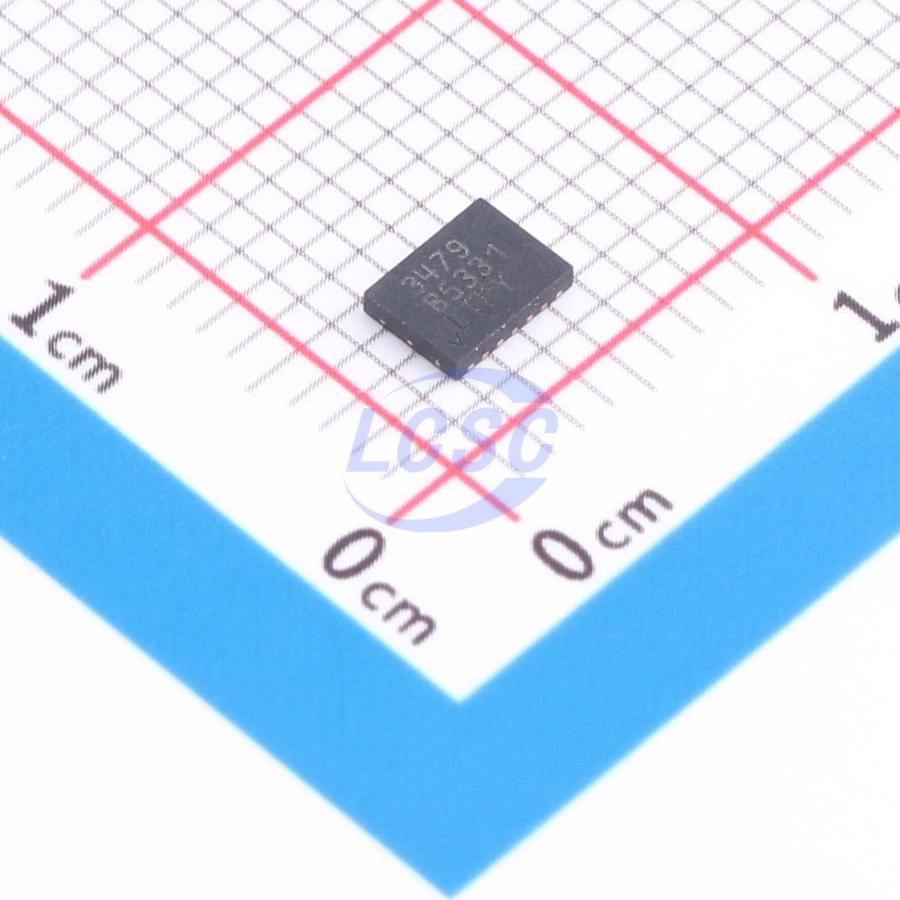

ADI

LT3479EDE#PBF

3.5MHz Boost Adjustable 3A 1.235V~42V DFN-14-EP(3x4) Voltage Regulators - DC DC Switching Regulators RoHS

DFN-14-EP(3x4)ROHS3 CompliantActive

Manufacturer: ADI
Manufacturer part #: LT3479EDE#PBF
Store part #: C670663
Package / case: DFN-14-EP(3x4)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C670663

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹2,514.90	₹2,514.90
10+	₹2,401.67	₹24,016.70
30+	₹2,205.19	₹66,155.70
100+	₹2,033.93	₹2,03,393.00

Quantity (min 1)

1 × ₹2,514.90

₹2,514.90

excl. GST

₹2,967.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 91 per tube

LT3479EDE#PBF

₹2,514.90 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 3.5MHz
Function: Boost
Number of Outputs: 1
Features: Adjustable soft-start;Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.3V~24V
Switch tube (built-in/external): Built-in
Output Current: 3A
Output Voltage: 1.235V~42V
Quiescent Current: 150nA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 91 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.62 g

Overview

The LT3479 is a current mode, fixed frequency step-up DC/DC converter with an internal 3A, 42V switch. Efficiencies of up to 89% can be achieved in typical applications. It features a programmable soft-start function to limit inductor current during start-up and inrush current protection to protect the LT3479 during shorts and line transients. Both inputs of the error amplifier are available to the user allowing positive and negative output voltages. Through an external resistor, the user can program the switching frequency from 200kHz to 3.5MHz. The low profile (0.75mm) 14-pin, 4mmx3mm DFN package provides excellent thermal performance in a small footprint. The LT3479 is also available in a thermally enhanced 16-pin TSSOP package.

Applications

High Power LED Driver
DSL Modems
Distributed Power

Key features

Wide Input Voltage Range: 2.5V to 24V
3A, 42V Internal Switch
High Efficiency Power Conversion: Up to 89%
Soft-Start
Frequency Set by External Resistor: 200kHz to 3.5MHz
Protection Against Input Short Circuits and Hot Plugging
Low VCESAT Switch: 0.3V at 2.5A (Typical)
Capable of Positive and Negative Outputs
Available in Thermally Enhanced 14-Lead (4mm×3mm) DFN and 16-Lead TSSOP Packages
