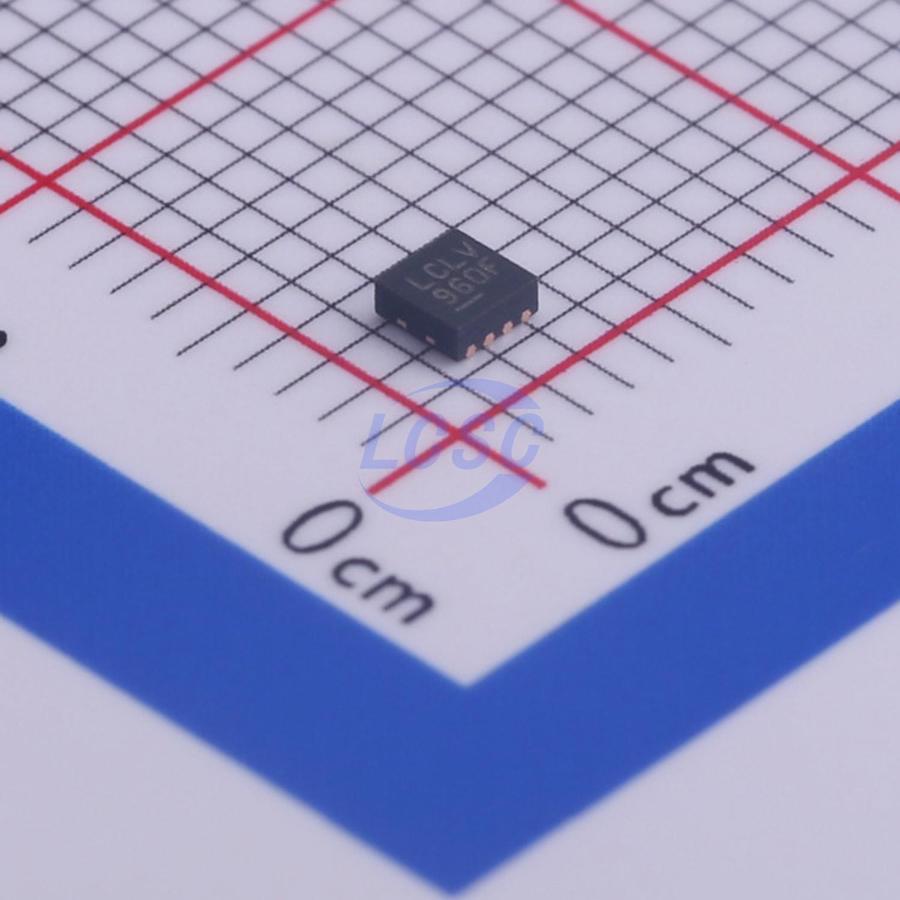

ADI

LT3502EDC#TRPBF

1.1MHz Step-down type Fixed 3.3V 500mA DFN-8-EP(2x2) Voltage Regulators - DC DC Switching Regulators RoHS

DFN-8-EP(2x2)ROHS3 CompliantActive

1.1MHz/2.2MHz, 500mA Step-Down Regulators

Manufacturer: ADI
Manufacturer part #: LT3502EDC#TRPBF
Store part #: C462637
Package / case: DFN-8-EP(2x2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,670 in stock

#C462637

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹793.56	₹793.56
10+	₹688.65	₹6,886.50
30+	₹626.19	₹18,785.70
100+	₹563.07	₹56,307.00
500+	₹534.12	₹2,67,060.00
1,000+	₹521.06	₹5,21,060.00

Quantity (min 1)

1 × ₹793.56

₹793.56

excl. GST

₹936.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LT3502EDC#TRPBF

₹793.56 for 1 + GST

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 1.1MHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Adjustable soft-start;Overcurrent Protection
Output Type: Fixed
Topology: Buck
Operating Voltage: 3V~40V
Switch tube (built-in/external): Built-in
Output Voltage: 3.3V
Output Current: 500mA
Quiescent Current: 1.5mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.02 g

Overview

The LT3502/LT3502A are current mode PWM step-down DC/DC converters with an internal 500mA power switch, in tiny 8-lead 2mm × 2mm DFN and 10-lead MS10 packages. The wide input voltage range of 3V to 40V makes the LT3502/LT3502A suitable for regulating power from a wide variety of sources, including 24V industrial supplies and automotive batteries. Its high operating frequency allows the use of tiny, low cost inductors and capacitors, resulting in a very small solution. Constant frequency above the AM band avoids interfering with radio reception, making the LT3502A particularly suitable for automotive applications. Cycle-by-cycle current limit and frequency foldback provide protection against shorted outputs. Soft-start and frequency foldback eliminates input current surge during start-up. DA current sense provides further protection in fault conditions. An internal boost diode reduces component count.
