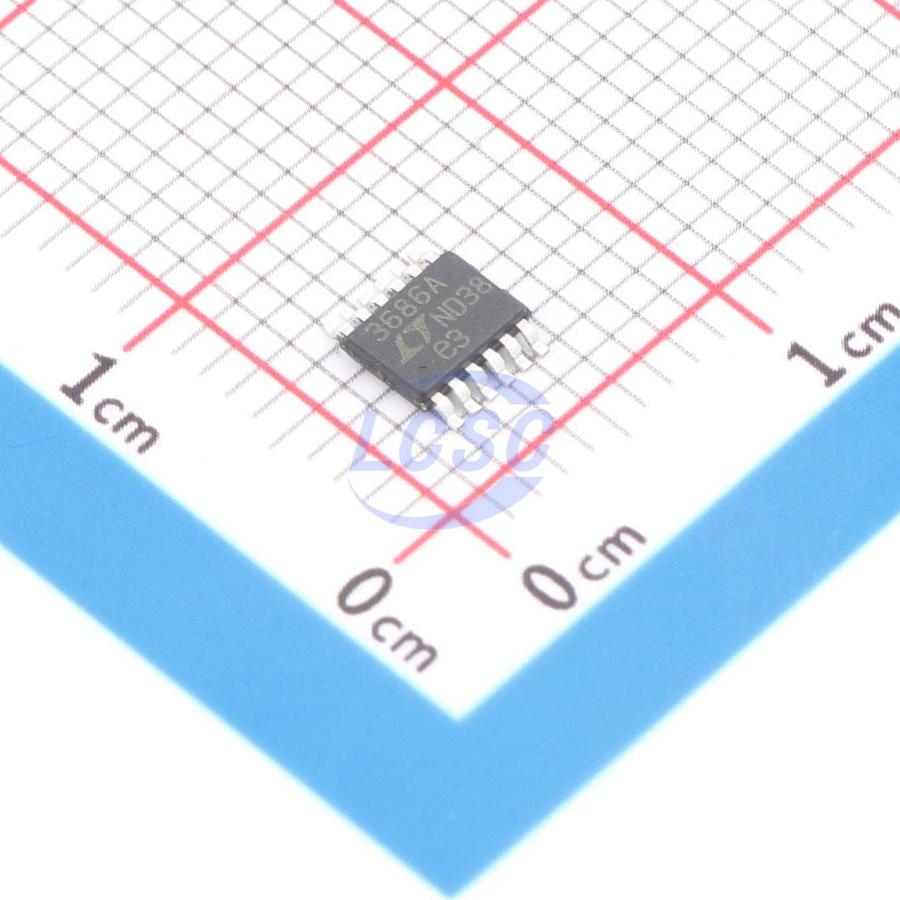

LT3686AEMSE#PBF ADI

LT3686AEMSE#PBF

2.5MHz Step-down type Adjustable 800mV~37V 1.2A MSOP-12-EP-0.65mm Voltage Regulators - DC DC Switching Regulators RoHS

MSOP-12-EP-0.65mmROHS3 CompliantActive

Manufacturer: ADI
Manufacturer part #: LT3686AEMSE#PBF
Store part #: C671202
Package / case: MSOP-12-EP-0.65mm
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5 in stock

#C671202

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹1,754.97	₹1,754.97
10+	₹1,668.99	₹16,689.90
30+	₹1,520.15	₹45,604.50
100+	₹1,390.12	₹1,39,012.00

Quantity (min 1)

1 × ₹1,754.97

₹1,754.97

excl. GST

₹2,070.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 37 per tube

LT3686AEMSE#PBF

₹1,754.97 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 2.5MHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Frequency synchronization;Output voltage tracking;Adjustable soft-start
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3.6V~37V
Switch tube (built-in/external): Built-in
Output Voltage: 800mV~37V
Output Current: 1.2A
Quiescent Current: 1.1mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 37 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.87 g
