LT3695EMSE#PBF
2.2MHz Step-down type Adjustable 1A 800mV~20V MSOP-16-EP Voltage Regulators - DC DC Switching Regulators RoHS
MSOP-16-EPROHS3 CompliantActive
- Manufacturer
- ADI
- Manufacturer part #
- LT3695EMSE#PBF
- Store part #
- C671290
- Package / case
- MSOP-16-EP
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C671290
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,496.36 | ₹2,496.36 |
| 10+ | ₹2,383.77 | ₹23,837.70 |
| 30+ | ₹2,189.01 | ₹65,670.30 |
| 100+ | ₹2,018.83 | ₹2,01,883.00 |
1 × ₹2,496.36
₹2,496.36
excl. GST
₹2,945.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 37 per tube

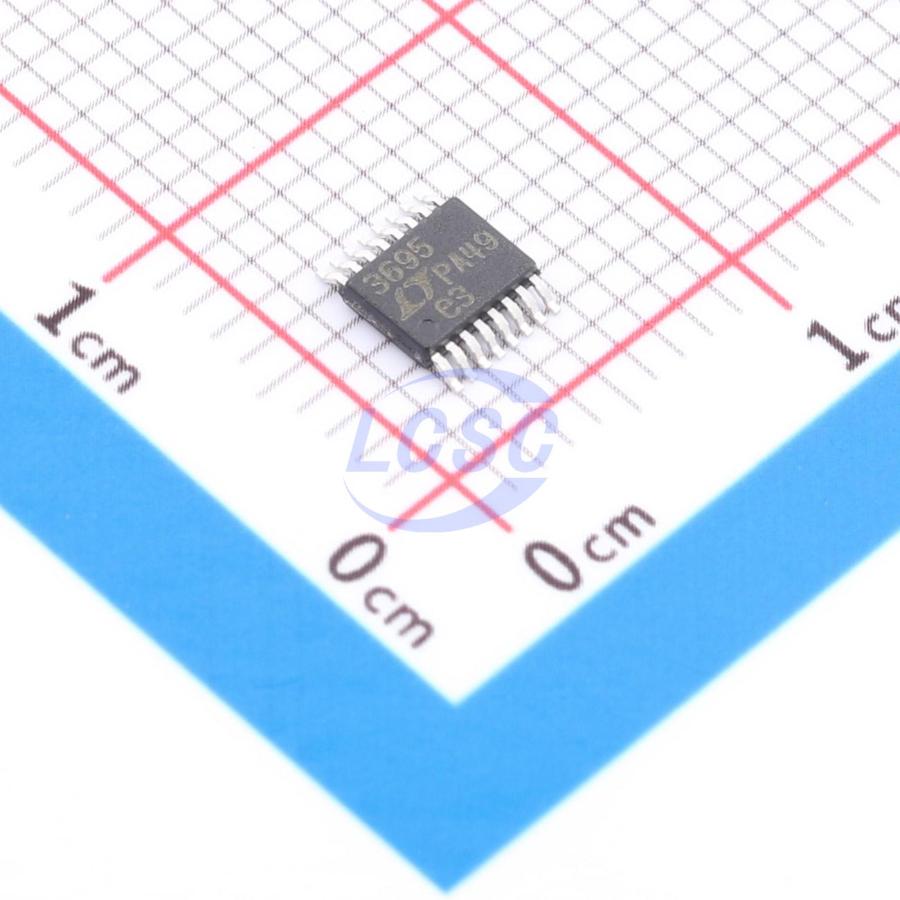

LT3695EMSE#PBF
₹2,496.36 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 2.2MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection;Frequency synchronization;Light load efficient mode;Operating status indication
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3.6V~36V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Output Voltage
- 800mV~20V
- Quiescent Current
- 75uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 37 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.68 g
Overview
The LT3695 series are adjustable frequency (250kHz to 2.2MHz) monolithic buck switching regulators that accept input voltages up to 36V and can safely sustain transient voltages up to 60V. The devices include a high efficiency switch, a boost diode, and the necessary oscillator, control and logic circuitry. Current mode topology is used for fast transient response and good loop stability. A SYNC pin allows the user to synchronize the part to an external clock, and to choose between low ripple Burst Mode operation and standard PWM operation. The LT3695 regulators tolerate adjacent pin shorts or an open pin without raising the output voltage above its programmed value. Low ripple Burst Mode operation maintains high efficiency at low output currents while keeping output ripple below 15mV in a typical application. Shutdown reduces input supply current to less than 1μA while a resistor and capacitor on the RUN/SS pin provide a controlled output voltage ramp (soft-start). Protection circuitry senses the current in the power switch and external Schottky catch diode to protect the LT3695 regulators against short-circuit conditions. Frequency foldback and thermal shutdown provide additional protection. The LT3695 series is available in a thermally enhanced 16-pin MSOP package.
Applications
- Automotive Battery Regulation
- Automotive Entertainment Systems
- Distributed Supply Regulation
- Industrial Supplies
Key features
- Wide Input Range: Operation from 3.6V to 36V Overvoltage Lockout Protects Circuits Through 60V Transients
- FMEA Fault Tolerant: Output Stays at or Below Regulation Voltage During Adjacent Pin Short or When a Pin Is Left Floating
- 1A Output Current
- Low Ripple (<15mV_P-P) Burst Mode Operation I_0 = 75μA for 12V_IN to 3.3V_OUT with No Load
- Adjustable Switching Frequency: 250kHz to 2.2MHz
- Short-Circuit Protected
- Synchronizable Between 300kHz and 2.2MHz
- Output Voltage: 0.8V to 20V
- Power Good Flag
- Fixed Output Voltage Versions for 3.3V and 5V Available
- Small, Thermally Enhanced 16-Pin MSOP Package
