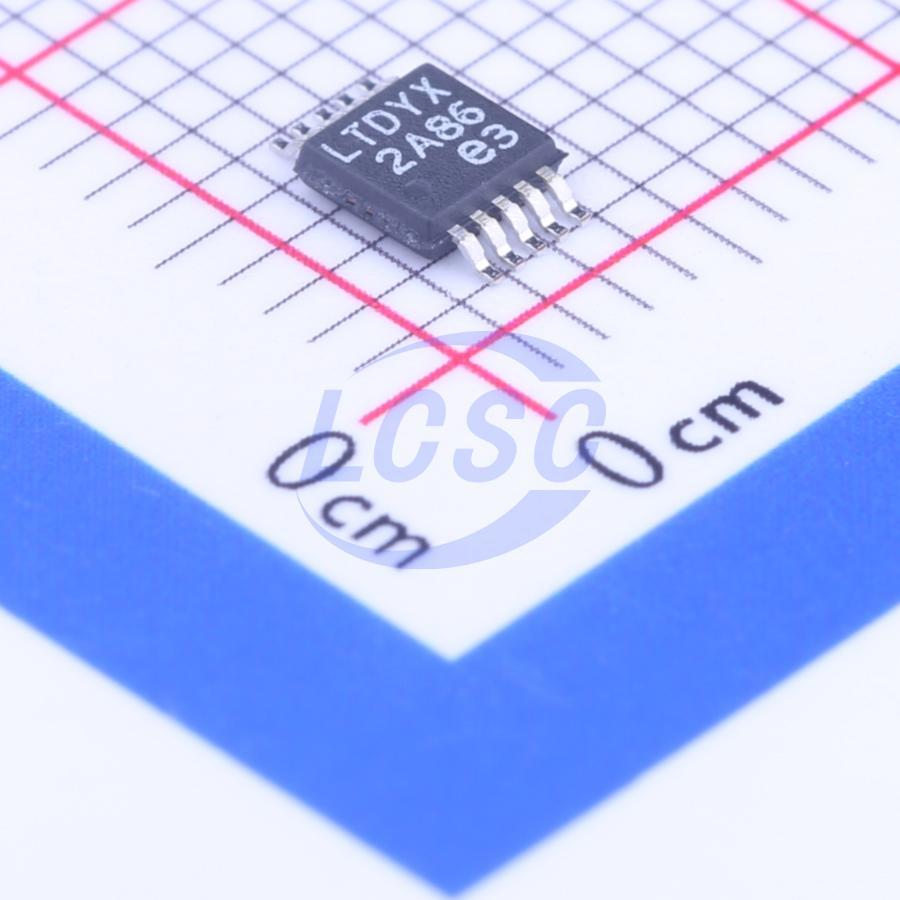

LT3757IMSE#PBF
1 Adjustable Buck-Boost MSOP-10-EP DC DC Switching Controllers RoHS
Boost, Flyback, SEPIC and Inverting Controller
- Manufacturer
- ADI
- Manufacturer part #
- LT3757IMSE#PBF
- Store part #
- C117124
- Package / case
- MSOP-10-EP
- Category
- DC DC Switching Controllers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,208 in stock
#C117124
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹833.23 | ₹833.23 |
| 10+ | ₹731.54 | ₹7,315.40 |
| 30+ | ₹669.53 | ₹20,085.90 |
| 100+ | ₹617.50 | ₹61,750.00 |
1 × ₹833.23
₹833.23
excl. GST
₹983.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
LT3757IMSE#PBF
₹833.23 for 1 + GST
Specifications
- Synchronous Rectifier
- No
- Features
- Frequency synchronization;Built-in LDO regulator;Adjustable soft-start;External compensation;Overcurrent Protection
- Number of Channels
- 1
- Topology
- Boost;Flyback;SEPIC;Inverting
- Operating Voltage
- 2.9V~40V
- Switch tube (built-in/external)
- External
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 100kHz~1MHz
- Output Type
- Adjustable
- Function
- Buck-Boost
- Quiescent Current
- 1.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.087 g
Overview
The LT3757/LT3757A are wide input range, current mode, DC/DC controllers which are capable of generating either positive or negative output voltages. They can be configured as either a boost, flyback, SEPIC or inverting converter. The LT3757/LT3757A drive a low side external N-channel power MOSFET from an internal regulated 7.2V supply. The fixed frequency, current-mode architecture results in stable operation over a wide range of supply and output voltages. The operating frequency of LT3757/LT3757A can be set with an external resistor over a 100kHz to 1MHz range, and can be synchronized to an external clock using the SYNC pin. A low minimum operating supply voltage of 2.9V, and a low shutdown quiescent current of less than 1µA, make the LT3757/LT3757A ideally suited for battery-operated systems. The LT3757/LT3757A feature soft-start and frequency foldback functions to limit inductor current during startup and output short-circuit. The LT3757A has improved load transient performance compared to the LT3757.
Applications
- Automotive and Industrial Boost, Flyback, SEPIC and Inverting Converters
- Telecom Power Supplies
- Portable Electronic Equipment
Key features
- Wide Input Voltage Range: 2.9V to 40V
- Positive or Negative Output Voltage Programming with a Single Feedback Pin
- Current Mode Control Provides Excellent Transient Response
- Programmable Operating Frequency (100kHz to 1MHz) with One External Resistor Synchronizable to an External Clock
- Low Shutdown Current < 1µA
- Internal 7.2V Low Dropout Voltage Regulator Programmable Input Undervoltage Lockout with Hysteresis
- Programmable Soft-Start
- Small 10-Lead DFN (3mm×3mm) and Thermally Enhanced 10-Pin MSOP Packages
