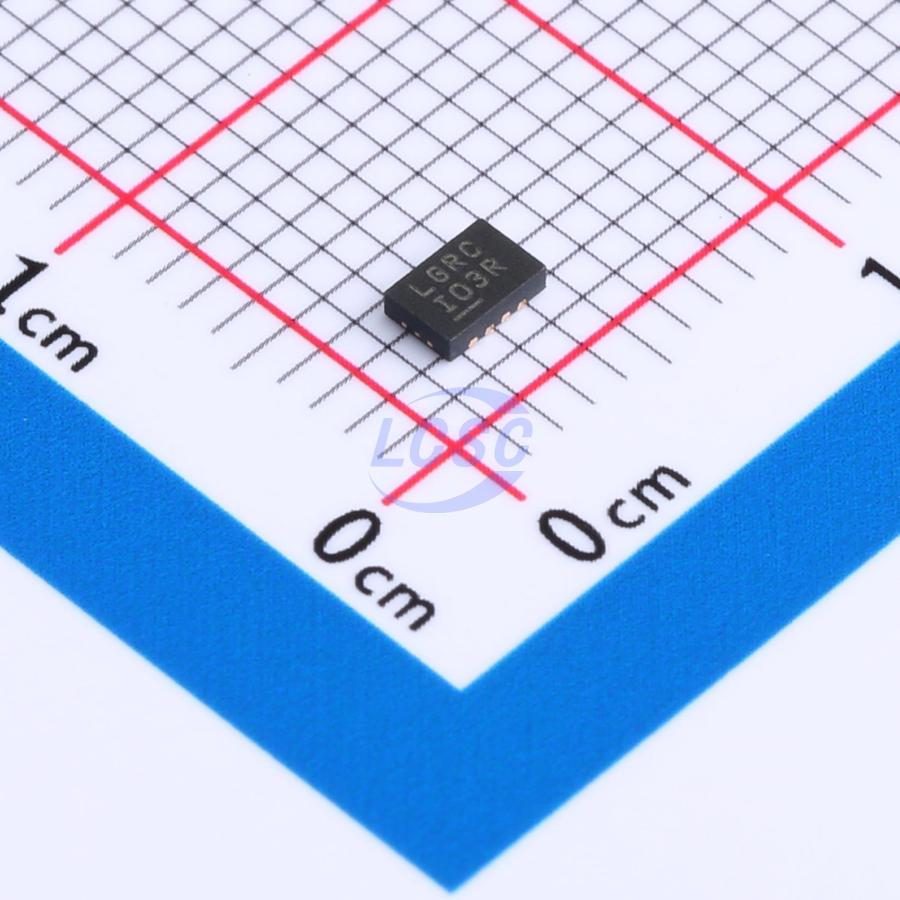

LT8330EDDB#TRPBF

The LT8330 is a current mode DC/DC converter capable of generating either positive or negative output voltages using a single feedback pin. It can be configured as a boost, SEPIC or inverting converter consuming as low as 6μA of quiescent current. Low ripple Burst Mode operation maintains high efficiency down to very low output currents while keeping the output ripple below 15mV in a typical application. The internally compensated current mode architecture results in stable operation over a wide range of input and output voltages. Integrated soft-start and frequency foldback functions are included to control inductor current during start-up. The LT8330 comes in small package options that, combined with a high switching frequency of 2MHz, help maintain a small foot print for an overall efficient, space-saving and cost effective solution.

Applications

• Industrial
• Automotive
• Telecom
• Medical Diagnostic Equipment
• Portable Electronics

Key features

• 3V to 40V Input Voltage Range
• Ultralow Quiescent Current and Low Ripple Burst Mode Operation: I₀ = 6μA
• 1A, 60V Power Switch
• Positive or Negative Output Voltage Programming with a Single Feedback Pin
• Fixed 2MHz Switching Frequency
• Accurate 1.6V EN/UVLO Pin Threshold
• Internal Compensation and Soft-Start
• Low Profile (1mm) ThinSOT Package
• Low Profile (0.75mm) 8-Lead (3mm×2mm) DFN Package
• DFN Package is AEC-Q100 Qualified
• ThinSOT Package AEC-Q100 Qualification Is in Progress
