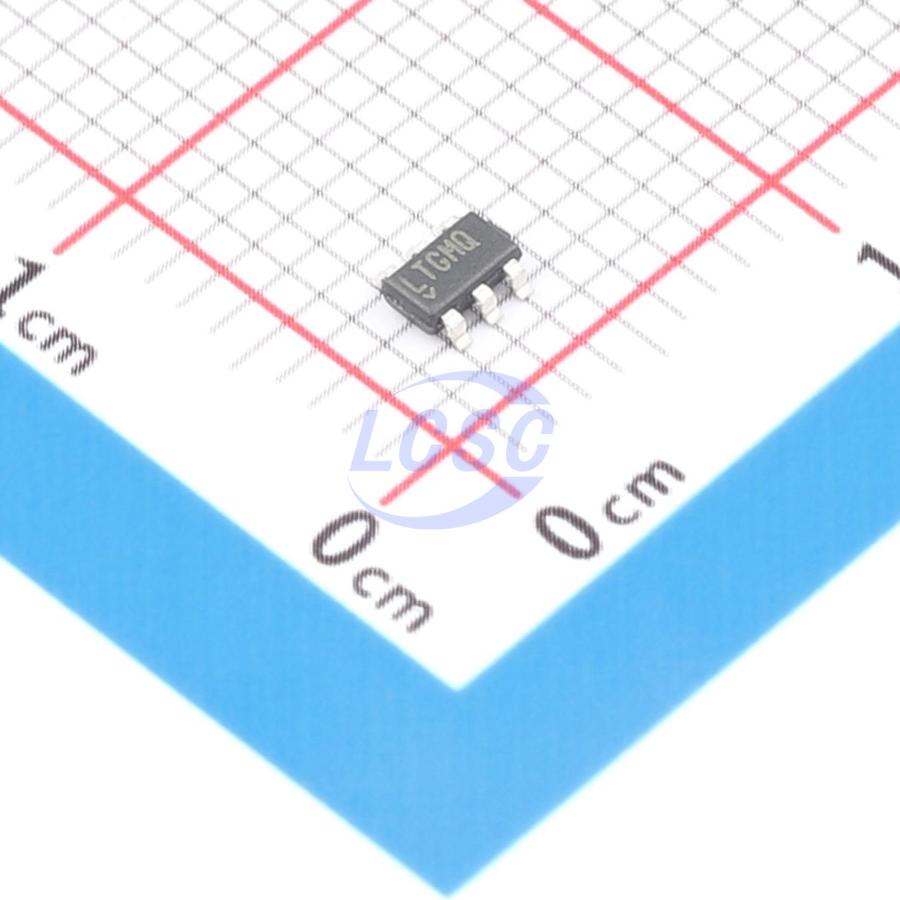

LT8330ES6#TRMPBF
2MHz Boost Adjustable 1A TSOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
TSOT-23-6ROHS3 CompliantActive
Low IQ Boost/SEPIC/Inverting Converter
- Manufacturer
- ADI
- Manufacturer part #
- LT8330ES6#TRMPBF
- Store part #
- C580285
- Package / case
- TSOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,228 in stock
#C580285
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,270.11 | ₹1,270.11 |
| 10+ | ₹1,109.88 | ₹11,098.80 |
| 30+ | ₹1,012.31 | ₹30,369.30 |
| 100+ | ₹930.57 | ₹93,057.00 |
1 × ₹1,270.11
₹1,270.11
excl. GST
₹1,498.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 500 per reel
LT8330ES6#TRMPBF
₹1,270.11 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Light load efficient mode;Built-in LDO regulator
- Output Type
- Adjustable
- Topology
- Boost;SEPIC;Inverting
- Operating Voltage
- 3V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Quiescent Current
- 6uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.174 g
Overview
The LT8330 is a current mode DC/DC converter capable of generating either positive or negative output voltages using a single feedback pin. It can be configured as a boost, SEPIC or inverting converter consuming as low as 6µA of quiescent current. Low ripple Burst Mode operation maintains high efficiency down to very low output currents while keeping the output ripple below 15mV in a typical application. The internally compensated current mode architecture results in stable operation over a wide range of input and output voltages. Integrated soft-start and frequency foldback functions are included to control inductor current during start-up. The 2MHz operation combined with small package options, enables low cost, area efficient solutions.
Applications
- Industrial and Automotive
- Telecom
- Medical Diagnostic Equipment
- Portable Electronics
Key features
- 3V to 40V Input Voltage Range
- Ultralow Quiescent Current and Low Ripple Burst Mode Operation: I₀ = 6µA
- 1A, 60V Power Switch
- Positive or Negative Output Voltage Programming with a Single Feedback Pin
- Fixed 2MHz Switching Frequency
- Accurate 1.6V EN/UVLO Pin Threshold
- Internal Compensation and Soft-Start
- Low Profile (1mm) ThinSOT Package
- Low Profile (0.75mm) 8-Lead (3mm×2mm) DFN Package
- AEC-Q100 Qualified for Automotive Applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LT8330ES6#TRPBF#C673741ADI · TSOT-23-6 | ADI | TSOT-23-6 | 800 | ₹884.17 · 800 in stock | View |
