ADI

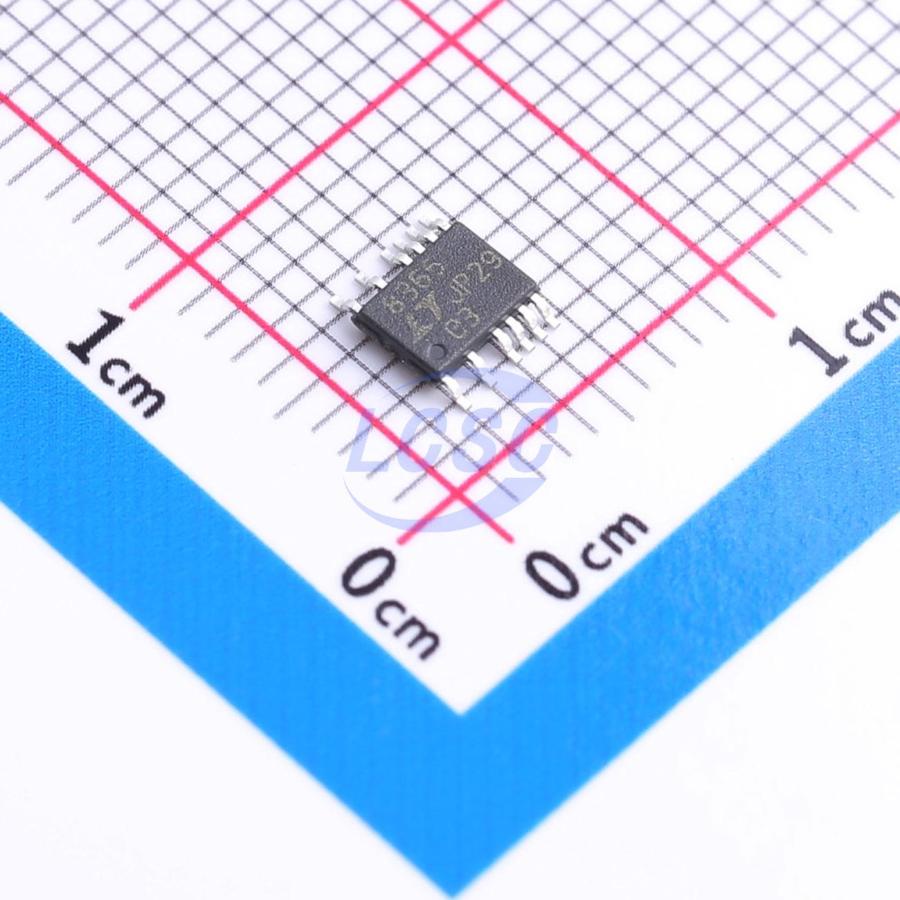

LT8365EMSE#TRPBF

100kHz~500kHz Buck-Boost Adjustable 1.5A MSOP-16 Voltage Regulators - DC DC Switching Regulators RoHS

MSOP-16ROHS3 CompliantActive

Low lQ Boost/SEPIC/Inverting Converter with 1.5A, 150v Switch

Manufacturer: ADI
Manufacturer part #: LT8365EMSE#TRPBF
Store part #: C673786
Package / case: MSOP-16
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,636 in stock

#C673786

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹1,836.20	₹1,836.20
10+	₹1,624.38	₹16,243.80
30+	₹1,495.16	₹44,854.80
100+	₹1,386.97	₹1,38,697.00

Quantity (min 1)

1 × ₹1,836.20

₹1,836.20

excl. GST

₹2,166.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LT8365EMSE#TRPBF

₹1,836.20 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 100kHz~500kHz
Function: Buck-Boost
Number of Outputs: 1
Features: Frequency synchronization;EMI optimization (spread spectrum);External compensation;Adjustable soft-start;Light load efficient mode;Built-in LDO regulator;Overcurrent Protection
Output Type: Adjustable
Topology: Boost;SEPIC;Inverting
Operating Voltage: 2.8V~60V
Switch tube (built-in/external): Built-in
Output Current: 1.5A
Quiescent Current: 9uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.41 g

Overview

The LT8365 is a current mode DC/DC converter with a 1.5A, 150V switch operating from a 2.8V to 60V input. With a unique single feedback pin architecture it is capable of boost, SEPIC or inverting configurations. Burst Mode operation consumes as low as 9µA quiescent current to maintain high efficiency at very low output currents, while keeping typical output ripple below 15mV. An external compensation pin allows optimization of loop bandwidth over a wide range of input and output voltages and programmable switching frequencies between 100kHz and 500kHz. A SYNC/MODE pin allows synchronization to an external clock. It can also be used to select between burst or pulse-skipping modes of operation with or without spread spectrum frequency modulation for low EMI. For increased efficiency, a BIAS pin can accept a second input to supply the INTVCC regulator. Additional features include frequency foldback and programmable soft-start to control inductor current during startup. The LT8365 is available in a thermally enhanced 16-lead MSOP package with four pins removed for high voltage pin spacings.
