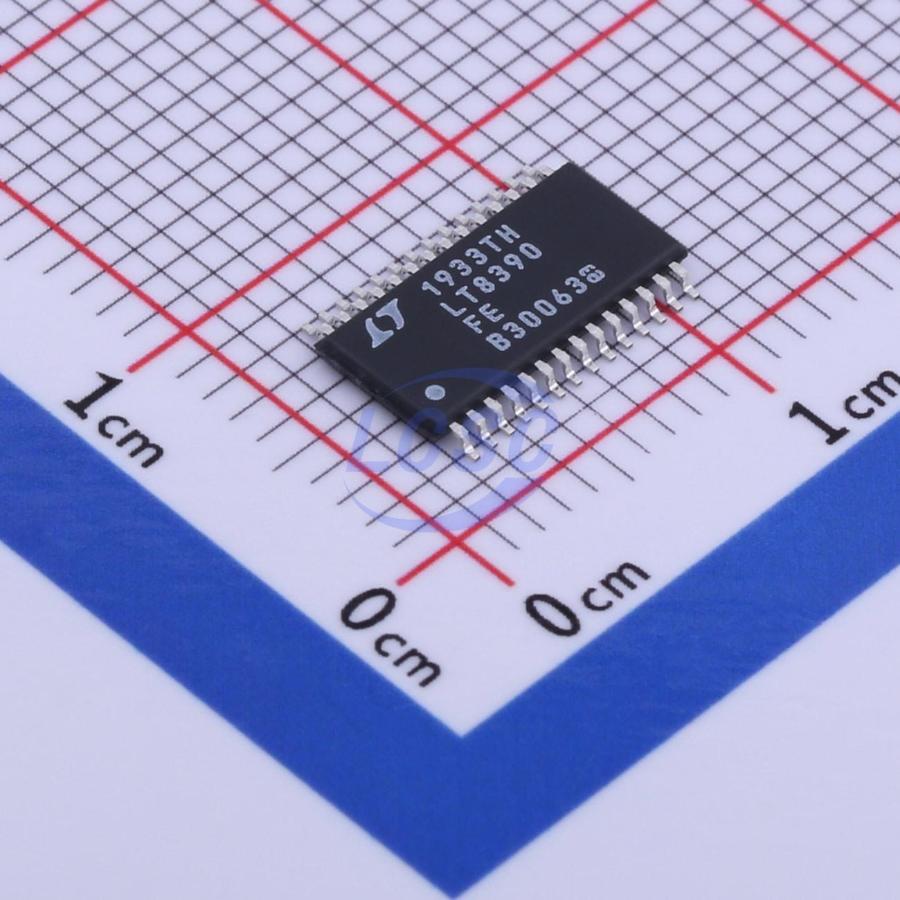

LT8390EFE#TRPBF
1 0V~60V Adjustable Buck-Boost HTSSOP-28 DC DC Switching Controllers RoHS
60V Synchronous 4-Switch Buck-Boost Controller
- Manufacturer
- ADI
- Manufacturer part #
- LT8390EFE#TRPBF
- Store part #
- C673802
- Package / case
- HTSSOP-28
- Category
- DC DC Switching Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,366 in stock
#C673802
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,569.54 | ₹1,569.54 |
| 10+ | ₹1,362.24 | ₹13,622.40 |
| 30+ | ₹1,235.99 | ₹37,079.70 |
| 100+ | ₹1,129.95 | ₹1,12,995.00 |
1 × ₹1,569.54
₹1,569.54
excl. GST
₹1,852.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LT8390EFE#TRPBF
₹1,569.54 for 1 + GST
Specifications
- Synchronous Rectifier
- Yes
- Features
- Adjustable current limiting;Hiccup current limiting;Protection latch;Adjustable soft-start;Load disconnect;Frequency synchronization;EMI optimization (spread spectrum);External compensation;Operating status indication;Overcurrent Protection
- Number of Channels
- 1
- Topology
- Buck-Boost
- Operating Voltage
- 4V~60V
- Switch tube (built-in/external)
- External
- Output Voltage
- 0V~60V
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 630kHz
- Output Type
- Adjustable
- Function
- Buck-Boost
- Quiescent Current
- 2.1mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.9 g
Overview
The LT8390 is a synchronous 4-switch buck-boost DC/DC controller that regulates output voltage, input or output current from an input voltage above, below, or equal to the output voltage. The proprietary peak-buck/peak-boost current mode control scheme allows adjustable and synchronizable 150kHz to 650kHz fixed frequency operation, or internal ±15% triangle spread spectrum frequency modulation for low EMI. With a 4V to 60V input voltage range, 0V to 60V output voltage capability, and seamless low noise transitions between operation regions, the LT8390 is ideal for voltage regulator, battery and supercapacitor charger applications in automotive, industrial, telecom, and even battery-powered systems. The LT8390 provides input or output current monitor and power good flag. Fault protection is also provided to detect output short-circuit condition, during which the LT8390 retries, latches off, or keeps running.
Applications
- Automotive
- Industrial
- Telecom Systems
- High Power Battery-Powered System
Key features
- 4-Switch Single Inductor Architecture Allows VIN Above, Below or Equal to VOUT
- Synchronous Switching: Up to 98% Efficiency
- Proprietary Peak-Buck Peak-Boost Current Mode
- Wide VIN Range: 4V to 60V
- ±1.5% Output Voltage Accuracy: 1V ≤ VOUT ≤ 60V
- ±3% Input or Output Current Accuracy with Monitor
- Spread Spectrum Frequency Modulation for Low EMI
- High Side PMOS Load Switch Driver
- Integrated Bootstrap Diodes
- No Top MOSFET Refresh Noise in Buck or Boost
- Adjustable and Synchronizable: 150kHz to 650kHz
- VOUT Disconnected from VIN During Shutdown
- Available in 28-Lead TSSOP with Exposed Pad and 28-Lead QFN (4mm×5mm)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LT8390EFE#PBF#C111660ADI · TSSOP-28-EP | ADI | TSSOP-28-EP | 32 | ₹1,675.98 · 32 in stock | View |
