ADIDatasheet (PDF)

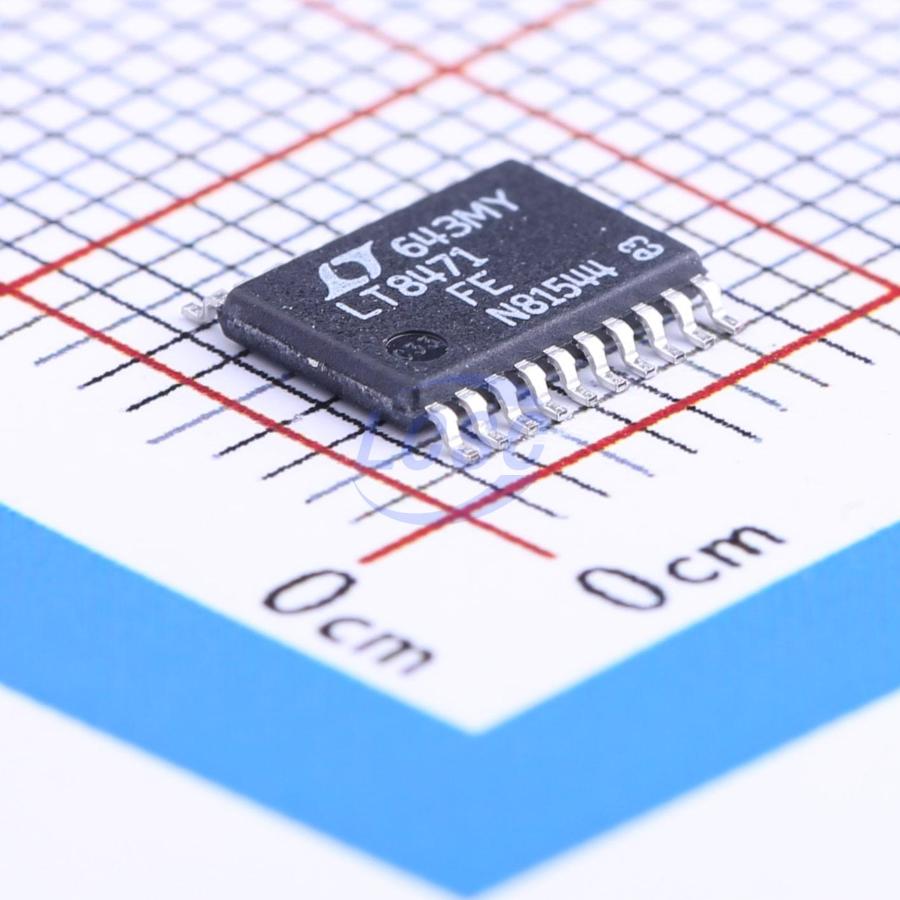

LT8471IFE#PBF
2MHz Adjustable TSSOP-20-EP Voltage Regulators - DC DC Switching Regulators RoHS
TSSOP-20-EPROHS3 CompliantActive
Dual Multitopology DC/DC Converters with 2A Switches and Synchronization
- Manufacturer
- ADI
- Manufacturer part #
- LT8471IFE#PBF
- Store part #
- C74200
- Package / case
- TSSOP-20-EP
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C74200
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,787.31 | ₹2,787.31 |
| 10+ | ₹2,657.25 | ₹26,572.50 |
| 30+ | ₹2,432.27 | ₹72,968.10 |
| 100+ | ₹2,235.75 | ₹2,23,575.00 |
1 × ₹2,787.31
₹2,787.31
excl. GST
₹3,289.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 75 per tube
LT8471IFE#PBF
₹2,787.31 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 2MHz
- Function
- Boost;Step-down type
- Number of Outputs
- 2
- Features
- Adjustable soft-start;Frequency synchronization;Operating status indication
- Output Type
- Adjustable
- Topology
- Buck;Boost;SEPIC;Flyback;Inverting
- Operating Voltage
- 2.6V~50V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.35A;2.1A
- Quiescent Current
- 29uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
The LT8471 is a dual PWM DC/DC converter containing two internal 2A, 50V switches and an additional 500mA switch to facilitate step-down and inverting conversion. Each 2A channel can be independently configured as a buck, boost, SEPIC, flyback or inverting converter. Capable of generating positive and negative outputs from a single input rail, the LT8471 is ideal for many local power supply designs. The LT8471 has an adjustable oscillator, set by a resistor placed from the RT pin to ground. Additionally, the LT8471 can be synchronized to an external clock. The free running or synchronized switching frequency range of the part can be set between 100kHz and 2MHz. Dual Rail Power for Signal Chain. Buck/Buck, Buck/Boost, Boost/Boost, Boost/Invert, Invert/Invert, Buck/Invert Additional features such as frequency foldback, soft-start, and power good are integrated. The LT8471 is available in 20-lead TSSOP and 28-Lead (4mm×5mm) QFN packages.
Applications
- Dual-rail power supply for signal chains: buck/buck, buck/boost, boost/boost, boost/inverting, inverting/inverting, buck/inverting
Key features
- Dual 2A and One 500mA, 50V Internal Power Switch Channels
- 2A Primary Channels Can Be Buck, Boost, SEPIC, ZETA, Flyback or Inverting DC/DC Converter
- 500mA Skyhook Channel Efficiently Generates Boosted Input Voltage
- Wide Input Voltage Range of 2.6V to 50V
- UVLO and OVLO Programmable on OV/UV Pin
- Soft-Start Programmable for Each Channel
- Fixed Frequency PWM (Set by RT Pin or Synchronized to External Clock)
- Anti-Phase Switching Reduces Input Ripple
- 20-Lead TSSOP and 28-Lead QFN Packages
