ADIDatasheet (PDF)

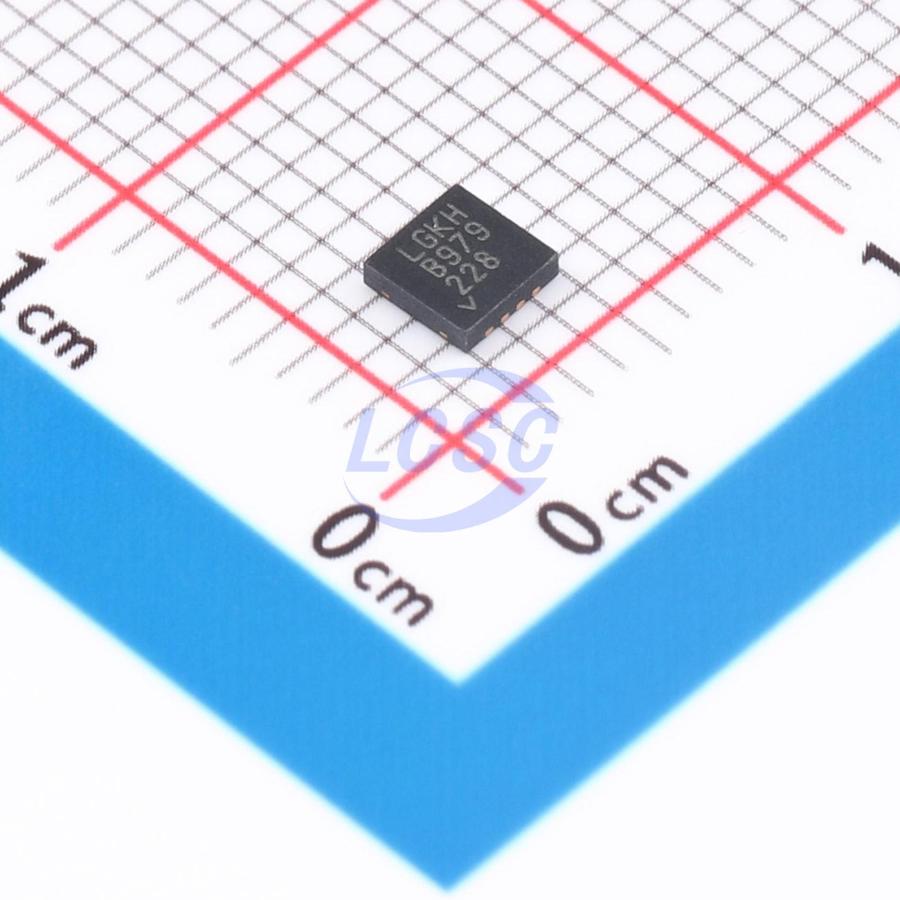

LT8580HDD#PBF
1.5MHz Boost Adjustable 1.2V~65V 1A DFN-8-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS
DFN-8-EP(3x3)ROHS3 CompliantActive
- Manufacturer
- ADI
- Manufacturer part #
- LT8580HDD#PBF
- Store part #
- C673911
- Package / case
- DFN-8-EP(3x3)
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C673911
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,320.84 | ₹1,320.84 |
| 10+ | ₹1,279.21 | ₹12,792.10 |
1 × ₹1,320.84
₹1,320.84
excl. GST
₹1,558.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 121 per tube
LT8580HDD#PBF
₹1,320.84 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃@(TJ)
- Frequency - Switching
- 1.5MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Adjustable soft-start;Frequency synchronization;External compensation;Load disconnect;Overcurrent Protection
- Topology
- Boost;SEPIC;Inverting
- Output Type
- Adjustable
- Operating Voltage
- 2.9V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.2V~65V
- Output Current
- 1A
- Quiescent Current
- 1.7mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 121 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.045 g
Overview
The LT8580 is a PWM DC/DC converter containing an internal 1A, 65V switch. The LT8580 can be configured as either a boost, SEPIC or inverting converter. The LT8580 has an adjustable oscillator, set by a resistor from the RT pin to ground. Additionally, the LT8580 can be synchronized to an external clock. The switching frequency of the part may be free running or synchronized, and can be set between 200kHz and 1.5MHz. The LT8580 also features innovative SHDN pin circuitry that allows for slowly varying input signals and an adjustable undervoltage lockout function. Additional features such as frequency foldback and soft-start are integrated. The LT8580 is available in tiny thermally enhanced 3mm×3mm 8-lead DFN and 8-lead MSOP packages.
Applications
- VFD Bias Supplies
- TFT-LCD Bias Supplies
- GPS Receivers
- DSL Modems
- Local Power Supply
Key features
- 1A, 65V Power Switch
- Adjustable Switching Frequency
- Single Feedback Resistor Sets VOUT
- Synchronizable to External Clock
- High Gain SHDN Pin Accepts Slowly Varying Input Signals
- Wide Input Voltage Range: 2.55V to 40V
- Low VCESAT Switch: 400mV at 0.75A (Typical)
- Integrated Soft-Start Function
- Easily Configurable as a Boost, SEPIC, or Inverting Converter
- User Configurable Undervoltage Lockout (UVLO)
- Pin Compatible with LT3580
- Tiny Thermally Enhanced 8-Lead 3mm×3mm DFN and 8-Lead MSOP Packages
- AEC-Q100 Qualified for Automotive Applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LT8580EDD#PBF#C673907ADI · DFN-8-EP(3x3) | ADI | DFN-8-EP(3x3) | On request | ₹1,325.42 · 0 in stock | View |
