ADIDatasheet (PDF)

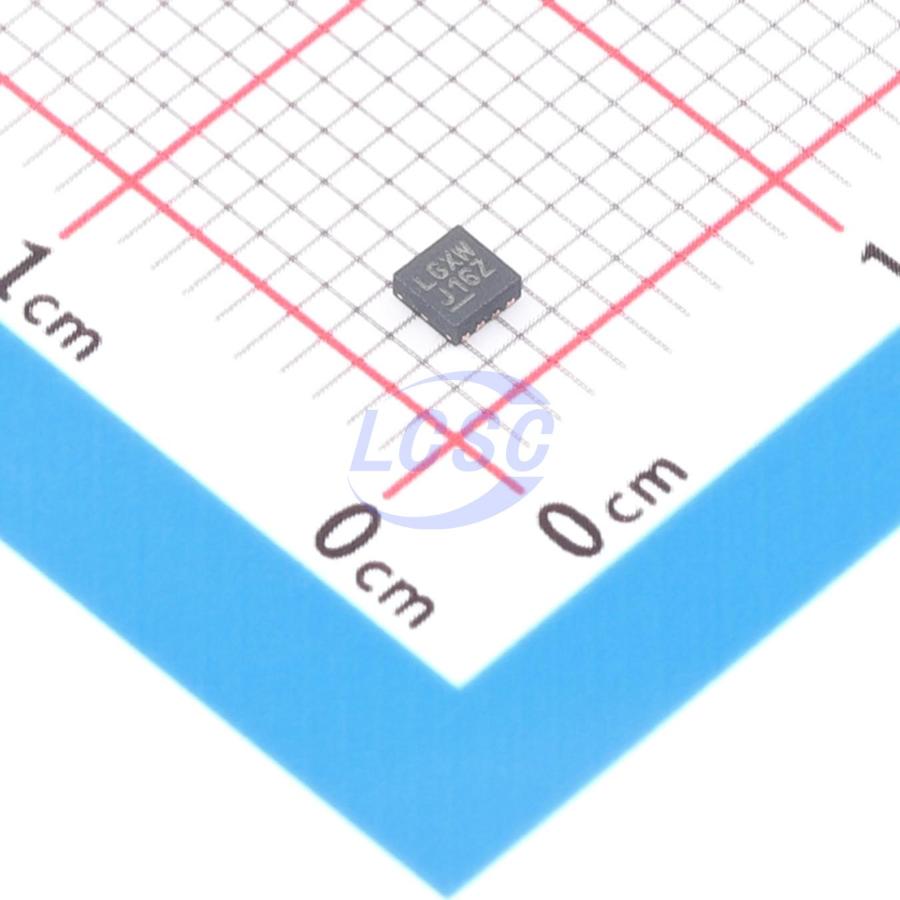

LT8606BEDC#TRPBF
Buck Switching Regulator IC Adjustable 1 Output 350mA DFN-8-EP(2x2)
DFN-8-EP(2x2)ROHS3 CompliantActive
42V 350mA synchronous step-down regulator with a quiescent current of 2.5μA
- Manufacturer
- ADI
- Manufacturer part #
- LT8606BEDC#TRPBF
- Store part #
- C2073106
- Package / case
- DFN-8-EP(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C2073106
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹657.49 | ₹657.49 |
| 10+ | ₹641.93 | ₹6,419.30 |
| 30+ | ₹631.56 | ₹18,946.80 |
| 100+ | ₹621.19 | ₹62,119.00 |
1 × ₹657.49
₹657.49
excl. GST
₹775.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LT8606BEDC#TRPBF
₹657.49 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 200kHz~2.2MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Frequency synchronization;EMI optimization (spread spectrum);Light load efficient mode;Output voltage tracking;Operating status indication
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3V~42V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 350mA
- Quiescent Current
- 1.7uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
