ADI

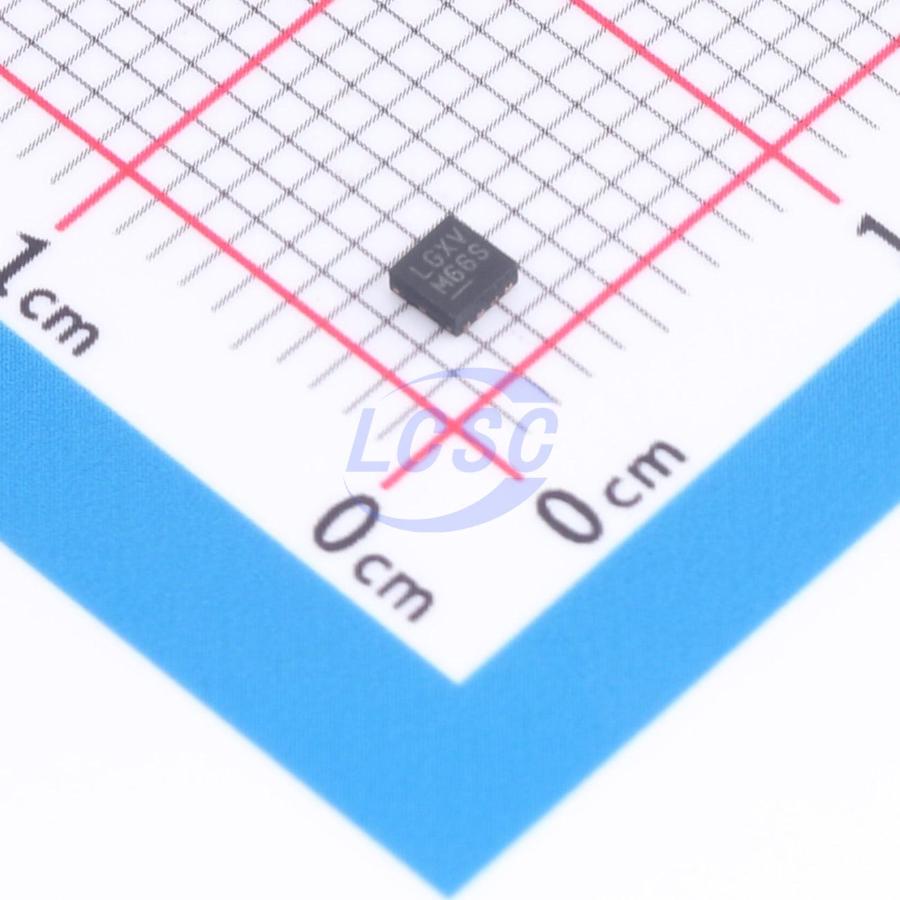

LT8606EDC#TRMPBF

Buck Switching Regulator IC Adjustable 1 Output 350mA DFN-8-EP(2x2)

DFN-8-EP(2x2)ROHS3 CompliantActive

42V 350mA synchronous step-down regulator with a quiescent current of 2.5μA

Manufacturer: ADI
Manufacturer part #: LT8606EDC#TRMPBF
Store part #: C673945
Package / case: DFN-8-EP(2x2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

54 in stock

#C673945

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹492.41	₹492.41
10+	₹419.35	₹4,193.50
30+	₹375.96	₹11,278.80
100+	₹332.13	₹33,213.00
500+	₹311.84	₹1,55,920.00
1,000+	₹302.69	₹3,02,690.00

Quantity (min 1)

1 × ₹492.41

₹492.41

excl. GST

₹581.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 500 per reel

LT8606EDC#TRMPBF

₹492.41 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 2MHz
Function: Step-down type
Number of Outputs: 1
Features: Frequency synchronization;EMI optimization (spread spectrum);Adjustable soft-start;Output voltage tracking;Light load efficient mode;Operating status indication
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3V~42V
Switch tube (built-in/external): Built-in
Output Current: 350mA
Quiescent Current: 1.7uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.064 g

Overview

The LT8606 is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 1.7µA of non-switching quiescent current. The LT8606 can deliver 350mA of continuous current. Low ripple Burst Mode operation enables high efficiency down to very low output currents while keeping the output ripple below 10mVP-P. Internal compensation with peak current mode topology allows the use of small inductors and results in fast transient response and good loop stability. The EN/UV pin has an accurate 1V threshold and can be used to program VIN undervoltage lockout or to shut down the LT8606. The PG pin signals when VOUT is within ±8.5% of the programmed output voltage as well as fault conditions. The MSOP package includes a SYNC pin to synchronize to an external clock, or to select Burst Mode operation or pulse-skipping with or without spread-spectrum; the TR/SS pin programs soft-start or tracking. The DFN package omits these pins and can be purchased in pulse-skipping or Burst Mode operation variety.

Applications

General Purpose Step-Down Converter
Low EMI Step Down

Key features

Wide Input Voltage Range: 3.0V to 42V
Ultralow Quiescent Current Burst Mode Operation: <3µA | Regulating 12VIN to 3.3VOUT Output Ripple <10mVP-P
High Efficiency 2MHz Synchronous Operation: >92% Efficiency at 0.35A, 12VIN to 5VOUT
350mA Maximum Continuous Output
Fast Minimum Switch-On Time: 35ns
Adjustable and Synchronizable: 200kHz to 2.2MHz
Spread Spectrum Frequency Modulation for Low EMI
Allows Use of Small Inductors
Low Dropout
Peak Current Mode Operation
Accurate 1V Enable Pin Threshold
Internal Compensation
Output Soft-Start and Tracking
Small Thermally Enhanced 10-Lead MSOP Package or 8-Pin 2mm × 2mm DFN Package
AEC-Q100 Qualified for Automotive Applications
