ADI

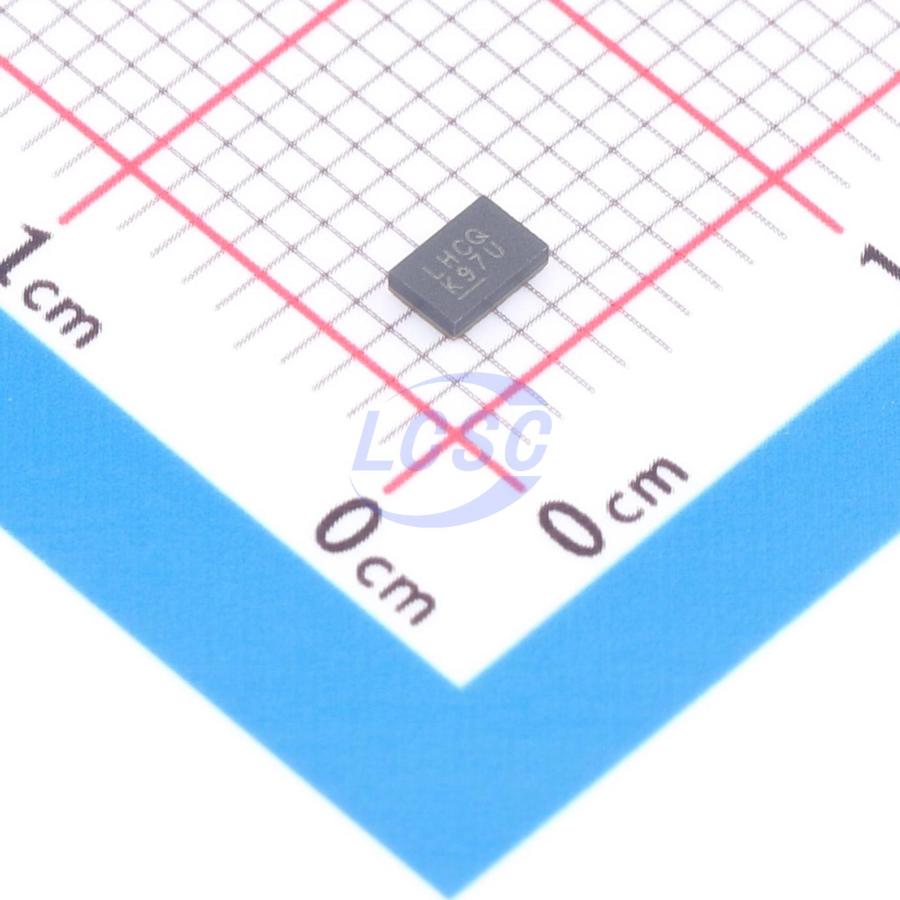

LT8608SIV#TRMPBF

200kHz~2.2MHz Step-down type Adjustable 1.5A LQFN-12(2x3) Voltage Regulators - DC DC Switching Regulators RoHS

LQFN-12(2x3)ROHS3 CompliantActive

42V 1.5A Synchronous Step-Down Regulator

Manufacturer: ADI
Manufacturer part #: LT8608SIV#TRMPBF
Store part #: C7455756
Package / case: LQFN-12(2x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

46 in stock

#C7455756

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹1,960.82	₹1,960.82
10+	₹1,871.37	₹18,713.70
30+	₹1,716.62	₹51,498.60
100+	₹1,581.46	₹1,58,146.00

Quantity (min 1)

1 × ₹1,960.82

₹1,960.82

excl. GST

₹2,313.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 500 per reel

LT8608SIV#TRMPBF

₹1,960.82 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TA)
Frequency - Switching: 200kHz~2.2MHz
Function: Step-down type
Number of Outputs: 1
Features: EMI optimization (spread spectrum);Frequency synchronization;Adjustable soft-start;Output voltage tracking;Built-in LDO regulator;Operating status indication;Light load efficient mode
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3V~42V
Switch tube (built-in/external): Built-in
Output Current: 1.5A
Quiescent Current: 3uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.149 g

Overview

The LT8608S is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 1.7µA of quiescent current. The LT8608S can deliver 1.5A of continuous current. Top and bottom power switches are included with all necessary circuitry to minimize the need for external components. Low ripple Burst Mode operation enables high efficiency down to very low output currents while keeping the output ripple below 10mV. A SYNC pin allows synchronization to an external clock, or spread spectrum modulation of switching frequencies for low EMI operation. Internal compensation with peak current mode topology allows the use of small inductors and results in fast transient response and good loop stability. The EN/UV pin has an accurate 1V threshold and can be used to program VIN undervoltage lockout or to shut down the LT8608S reducing the input supply current to 1µA. A capacitor on the TR/SS pin programs the output voltage ramp rate during start-up while the PG flag signals when VOUT is within ±8.0% of the programmed output voltage as well as fault conditions. The LT8608S is available in a small 12-lead LQFN package.

Applications

General Purpose Step Down
Low EMI Step Down

Key features

Silent Switcher 2 Architecture Ultralow EMI/EMC Emissions on Any PCB Eliminates PCB Layout Sensitivity
Internal Bypass Capacitors Reduce Radiated EMI Optional Spread Spectrum Modulation
Wide Input Voltage Range: 3.0V to 42V
Ultralow Quiescent Current Burst Mode Operation: 3µA Regulating 12VIN to 3.3VOUT Output Ripple <10mVP-P
High Efficiency 2MHz Synchronous Operation: >90% Efficiency at 0.75A, 5VOUT from 12VIN
1.5A Continuous Output Current
Fast Minimum Switch-On Time: 35ns
Adjustable and Synchronizable: 200kHz to 2.2MHz
Allows Use of Small Inductors
Low Dropout
Peak Current Mode Operation
Internal Compensation
Output Soft-Start and Tracking
Small 12-Lead LQFN Package
