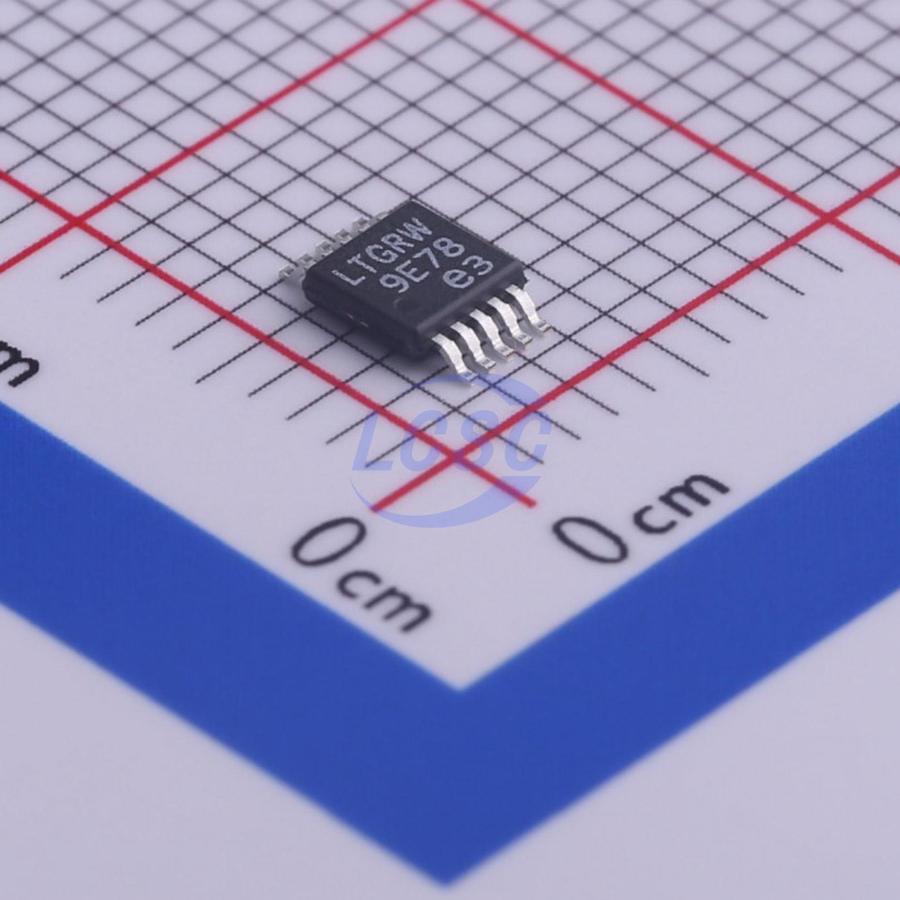

LT8609EMSE#TRPBF

200kHz~2.2MHz Step-down type Adjustable 3A MSOP-10-EP Voltage Regulators - DC DC Switching Regulators RoHS

MSOP-10-EPROHS3 CompliantActive

42V, 3A Synchronous Step-Down Regulator

Manufacturer: ADI
Manufacturer part #: LT8609EMSE#TRPBF
Store part #: C459916
Package / case: MSOP-10-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,091 in stock

#C459916

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹858.03	₹858.03
10+	₹745.18	₹7,451.80
30+	₹666.69	₹20,000.70
100+	₹608.84	₹60,884.00

Quantity (min 1)

1 × ₹858.03

₹858.03

excl. GST

₹1,012.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LT8609EMSE#TRPBF

₹858.03 for 1 + GST

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 200kHz~2.2MHz
Function: Step-down type
Number of Outputs: 1
Features: Frequency synchronization;EMI optimization (spread spectrum);Adjustable soft-start;Output voltage tracking;Light load efficient mode;Operating status indication
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3V~42V
Switch tube (built-in/external): Built-in
Output Current: 3A
Quiescent Current: 1.7uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.058 g

Overview

A compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 1.7µA of nonswitching quiescent current. It can deliver 3A of continuous current. Burst Mode operation enables high efficiency down to very low output currents while keeping the output ripple below 10mVP-P. A SYNC pin allows synchronization to an external clock, or spread spectrum modulation for low EMI operation. Internal compensation with peak current mode topology allows the use of small inductors and results in fast transient response and good loop stability. The EN/UV pin has an accurate 1V threshold and can be used to program VIN UVLO or to shut down the part. A capacitor on the TR/SS pin programs the output voltage ramp rate during start-up while the PG flag signals when VOUT is within ±8.5% of the programmed output voltage as well as fault conditions. The LT8609A has slower switch edges for lower EMI emissions. The LT8609B operates in pulse-skipping mode only.

Applications

GSM Transceivers
General Purpose Step-Down
Low EMI Step-Down

Key features

Wide Input Voltage Range: 3.0V to 42V
Ultralow Quiescent Current Burst Mode Operation: <2.5µA Regulating 12VIN to 3.3VOUT, Output Ripple <10mVP-P
High Efficiency 2MHz Synchronous Operation: >93% Efficiency at 1A, 5VOUT from 12VIN
3A Maximum Continuous Output
Fast Minimum Switch-On Time: 45ns
Adjustable and Synchronizable: 200kHz to 2.2MHz
Spread Spectrum Frequency Modulation for Low EMI
Allows Use of Small Inductors
Low Dropout
Peak Current Mode Operation
Accurate 1V Enable Pin Threshold
Internal Compensation
Output Soft-Start and Tracking
Small 10-Lead or 16-Lead MSOP Package
