ADI

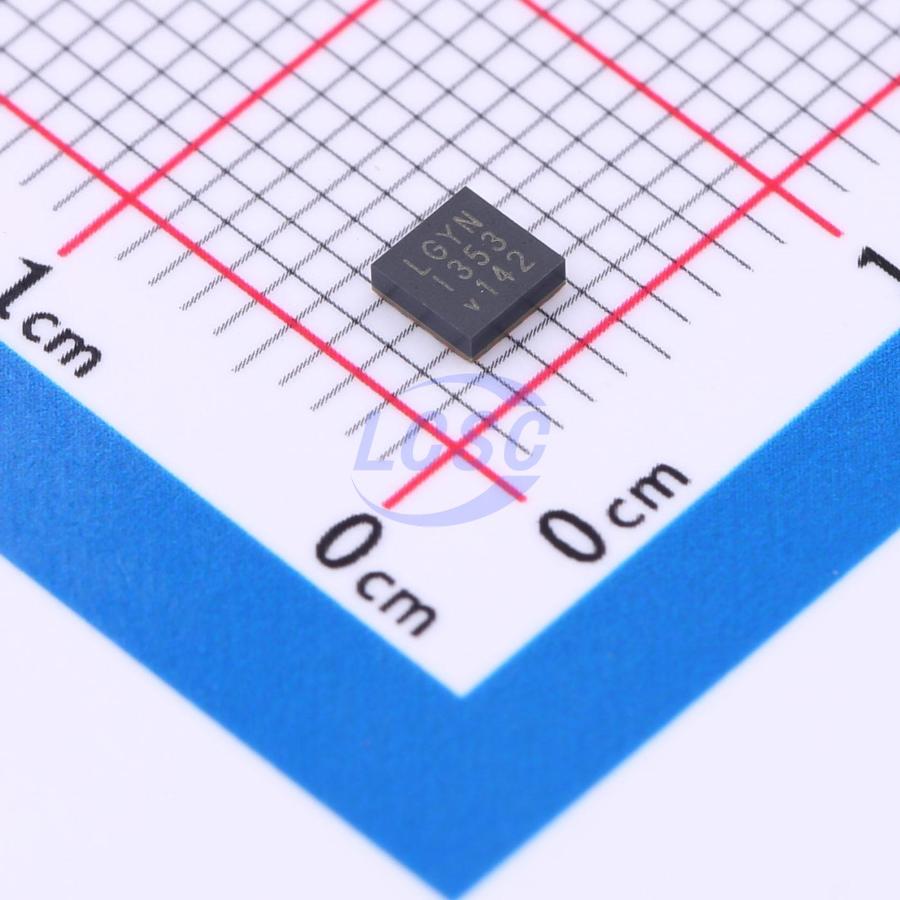

LT8609SEV#PBF

2.2MHz Step-down type Adjustable 3A LQFN-16-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS

LQFN-16-EP(3x3)ROHS3 CompliantActive

42V, 2A/3A Peak Synchronous Step-Down Regulator with 2.5uA Quiescent Current

Manufacturer: ADI
Manufacturer part #: LT8609SEV#PBF
Store part #: C674006
Package / case: LQFN-16-EP(3x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

18 in stock

#C674006

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹1,306.44	₹1,306.44
10+	₹1,061.01	₹10,610.10
30+	₹956.48	₹28,694.40
100+	₹868.93	₹86,893.00

Quantity (min 1)

1 × ₹1,306.44

₹1,306.44

excl. GST

₹1,541.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 624 per tray

LT8609SEV#PBF

₹1,306.44 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 2.2MHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable soft-start;Frequency synchronization;EMI optimization (spread spectrum);Light load efficient mode;Built-in LDO regulator;Operating status indication
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3V~42V
Switch tube (built-in/external): Built-in
Output Current: 3A
Quiescent Current: 1.7uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tray
Standard pack: 624 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 3.4 g

Overview

The LT8609S is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 1.7μA of non-switching quiescent current. The LT8609S can deliver 2A of continuous current with peak loads of 3A (<1sec) to support applications such as GSM transceivers which require high transient loads. Top and bottom power switches are included with all necessary circuitry to minimize the need for external components. Low ripple Burst Mode operation enables high efficiency down to very low output currents while keeping the output ripple below 10mVP-P. A SYNC pin allows synchronization to an external clock, or spread spectrum modulation of switching frequencies for low EMI operation. Internal compensation with peak current mode topology allows the use of small inductors and results in fast transient response and good loop stability. The EN/UV pin has an accurate 1V threshold and can be used to program VIN undervoltage lockout or to shut down the LT8609S reducing the input supply current to 1µA. A capacitor on the TR/SS pin programs the output voltage ramp rate during start-up while the PG flag signals when VOUT is within ±8.5% of the programmed output voltage as well as fault conditions. The LT8609S is available in a small 16-lead 3mm × 3mm LQFN package.

Applications

General Purpose Step Down
Low EMI Step Down

Key features

Silent Switcher 2 Architecture
Ultralow EMI Emissions on Any PCB
Eliminates PCB Layout Sensitivity
Internal Bypass Capacitors Reduce Radiated EMI
Optional Spread Spectrum Modulation
Wide Input Voltage Range: 3.0V to 42V
Ultralow Quiescent Current Burst Mode Operation: <2.5μA Regulating 12VIN to 3.3VOUT
Output Ripple <10mVP-P
High Efficiency 2MHz Synchronous Operation: >93% Efficiency at 1A, 12VIN to 5VOUT
2A Maximum Continuous Output, 3A Peak Transient Output
Fast Minimum Switch-On Time: 45ns
Adjustable and Synchronizable: 200kHz to 2.2MHz
Allows Use of Small Inductors
Low Dropout Peak Current Mode Operation
Internal Compensation
Output Soft-Start and Tracking
Small 16-Lead 3mm × 3mm LQFN Package
AEC-Q100 Qualified for Automotive Applications
