ADI

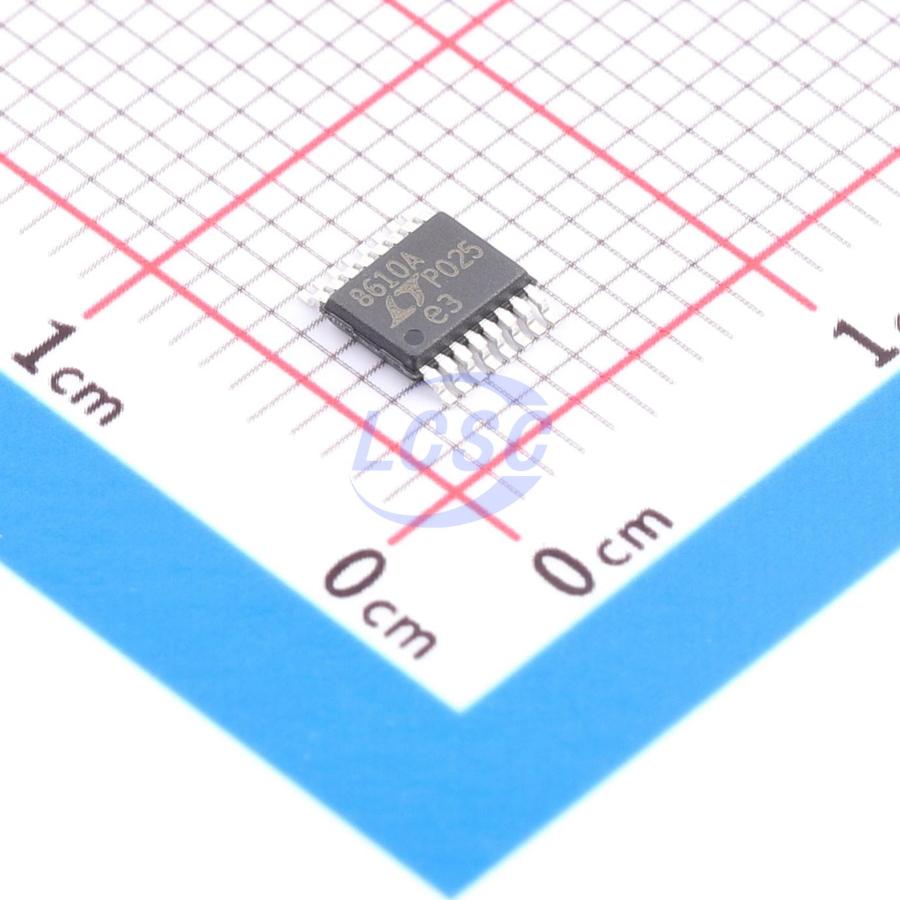

LT8610AEMSE#TRPBF

2.2MHz Step-down type Adjustable 3.5A MSOP-16-EP Voltage Regulators - DC DC Switching Regulators RoHS

MSOP-16-EPROHS3 CompliantActive

Manufacturer: ADI
Manufacturer part #: LT8610AEMSE#TRPBF
Store part #: C674033
Package / case: MSOP-16-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

12 in stock

#C674033

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹1,023.26	₹1,023.26
10+	₹999.35	₹9,993.50
30+	₹983.28	₹29,498.40
100+	₹967.19	₹96,719.00

Quantity (min 1)

1 × ₹1,023.26

₹1,023.26

excl. GST

₹1,207.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LT8610AEMSE#TRPBF

₹1,023.26 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 2.2MHz
Function: Step-down type
Number of Outputs: 1
Features: Frequency synchronization;Adjustable soft-start;Light load efficient mode;Operating status indication
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3.4V~42V
Switch tube (built-in/external): Built-in
Output Current: 3.5A
Quiescent Current: 2.5uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.26 g

Overview

The LT8610A/LT8610AB series are compact, high efficiency, high speed synchronous monolithic step-down switching regulators that consume only 2.5µA of quiescent current. Compared to the LT8610, they have higher maximum output currents of 3.5A and a faster minimum switch-on time of 30ns. The LT8610A has the same low ripple burst mode performance of the LT8610, while the LT8610AB has even higher light load efficiency. The other features of the LT8610 remain unchanged in the LT8610A/LT8610AB series. A SYNC pin allows synchronization to an external clock. The EN/UV pin has an accurate 1V threshold for V₁N undervoltage lockout or shut down. A capacitor on the TR/SS pin programs the output voltage ramp rate during startup. The PG flag signals when VOUT is within ±9% of the programmed output voltage as well as fault conditions.

Applications

Automotive and Industrial Supplies
GSM Power Supplies

Key features

LT8610 Feature Set, Plus: 3.5A Maximum Output Current
Fast 30ns Minimum Switch-On Time
Improved Burst Mode Efficiency (LT8610AB Only)
Improved EMI
Wide Input Voltage Range: 3.4V to 42V
Ultralow Quiescent Current Burst Mode Operation: 2.5µA I₀ Regulating 12VIN to 3.3VOUT
Fixed Output Voltages: 3.3V, 5V
Output Ripple <10mV p.p (LT8610A Only)
High Efficiency Synchronous Operation: 95% Efficiency at 1A, 5V₀UT from 12VIN; 93% Efficiency at 1A, 3.3V₀UT from 12VIN
Low Dropout Under All Conditions: 200mV at 1A
Safely Tolerates Inductor Saturation in Overload
Adjustable and Synchronizable Frequency: 200kHz to 2.2MHz
Accurate 1V Enable Pin Threshold
Output Soft-Start and Tracking
Small Thermally Enhanced 16-Lead MSOP Package
AEC-Q100 Qualified for Automotive Applications
