ADI

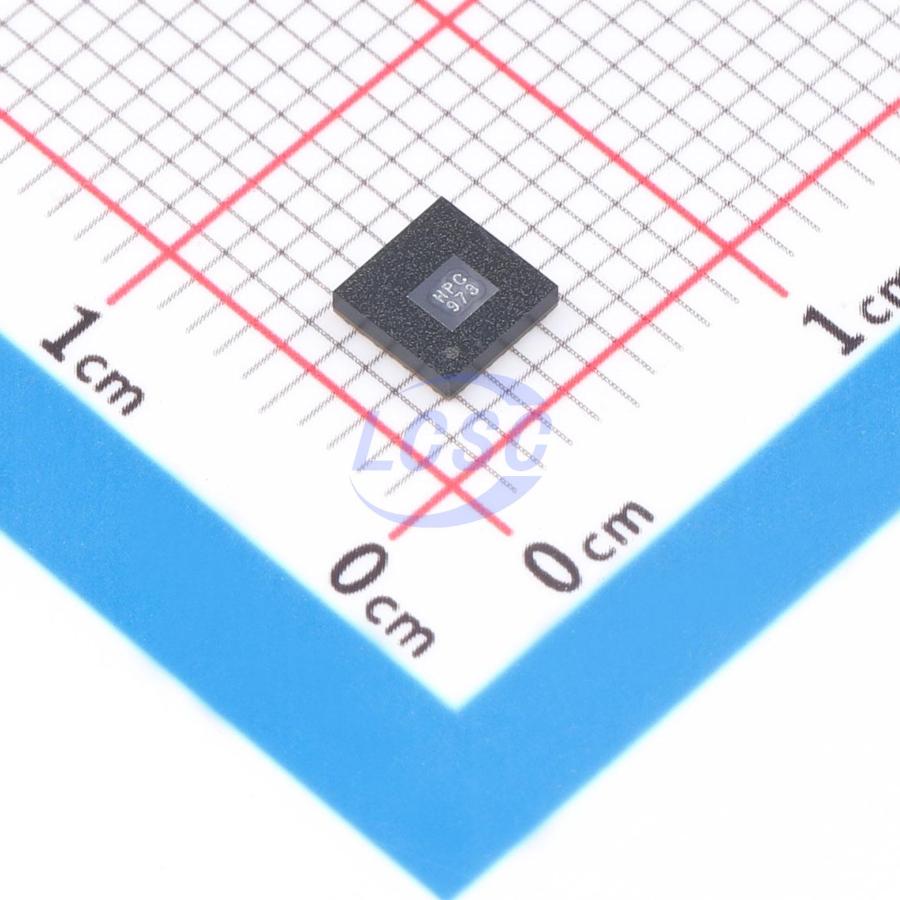

LT8625SPJV-1#TRMPBF

Step-down type Adjustable 0V~17.5V 8A LQFN-24-EP(4x4) Voltage Regulators - DC DC Switching Regulators RoHS

LQFN-24-EP(4x4)ROHS CompliantActive

18V/8A Step-Down SilentSwitcher3 with Ultralow Noise Reference

Manufacturer: ADI
Manufacturer part #: LT8625SPJV-1#TRMPBF
Store part #: C37130042
Package / case: LQFN-24-EP(4x4)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

34 in stock

#C37130042

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹1,607.97	₹1,607.97
10+	₹1,392.21	₹13,922.10
30+	₹1,260.62	₹37,818.60
100+	₹1,150.35	₹1,15,035.00

Quantity (min 1)

1 × ₹1,607.97

₹1,607.97

excl. GST

₹1,897.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 500 per reel

LT8625SPJV-1#TRMPBF

₹1,607.97 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃@(TJ)
Frequency - Switching: 300kHz;2MHz;4MHz
Function: Step-down type
Number of Outputs: 1
Features: Dynamic voltage scaling;Frequency synchronization;Light load efficient mode;External compensation;Operating status indication
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.7V~18V
Switch tube (built-in/external): Built-in
Output Voltage: 0V~17.5V
Output Current: 8A
Quiescent Current: 3.3mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.134 g

Overview

The LT8625SP/LT8625SP-1 synchronous step-down regulator features third-generation Silent Switcher technology which is uniquely designed to combine an ultralow noise reference with Silent Switcher architecture in order to achieve both high efficiency and excellent wideband noise performance. The innovative ultralow noise architecture provides exceptional low frequency (0.1Hz to 100kHz) output noise performance in a switching regulator. The output voltage can be programmed with a single resistor, resulting in virtually constant output noise independent of output voltage. Silent Switcher architecture minimizes EMI emissions while delivering high efficiency at high switching frequencies. The top of the package features exposed die for optional heat sink attachment which can be used to significantly improve thermal performance. The LT8625SP/LT8625SP-1 is ideal for high current, noise sensitive applications which benefit from the high efficiency of a synchronous switching regulator.

Applications

RF Power Suppliers: PLLs, VCOs, Mixers, LNAs, PAs
High Speed/High Precision ADCs/DACs
Low Noise Instrumentation

Key features

Silent Switcher3 Architecture
Ultralow RMS Noise (10Hz to 100kHz): 4uVRMS
Ultralow Spot Noise: 4nV/Hz at 10kHz
Ultralow EMI Emissions on Any PCB
Internal Bypass Capacitors Reduce Radiated EMI
High Efficiency at High Frequency
Ultrafast Transient Response: 1us
Fast Minimum Switch On-Time: 15ns
Input Voltage Range: 2.7V to 18V
Output Voltage Range: 0V to (PVIN - 0.5V)
8A Maximum Continuous Output Current
Precision Reference: ±0.8% Over Temperature with Remote Sense
Supports Dynamic Output Voltage Control
PolyPhase Operation: Up to 12 Phases
Forced Continuous Mode Capability
Adjustable and Synchronousizable: 300kHz to 4MHz
Programmable Power Good
Small 20-Lead 4mm × 3mm (LT8625SP) or 24-Lead 4mm × 4mm (LT8625SP - 1) LQFN Exposed Back Package for Optional Heat Sink Mount
