ADI

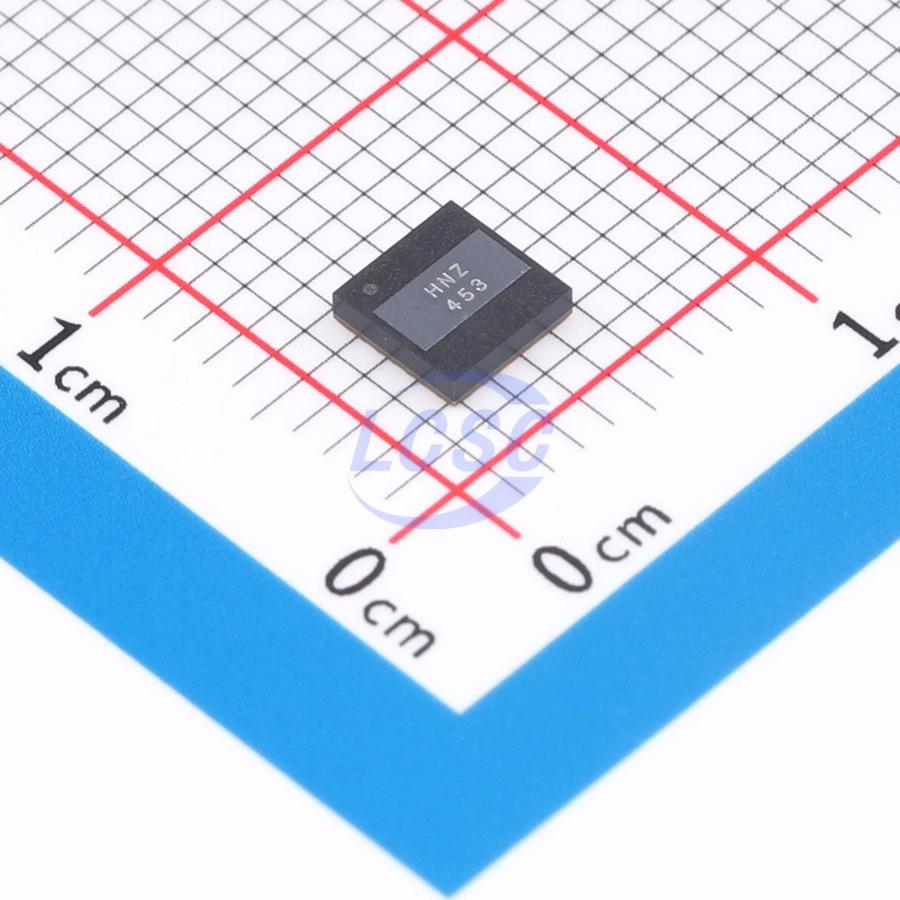

LT8627SPJV#TRPBF

300kHz~4MHz Step-down type Adjustable 16A 0V~17.5V LQFN-24(4x4) Voltage Regulators - DC DC Switching Regulators RoHS

LQFN-24(4x4)ROHS CompliantActive

Manufacturer: ADI
Manufacturer part #: LT8627SPJV#TRPBF
Store part #: C38271483
Package / case: LQFN-24(4x4)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9 in stock

#C38271483

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹3,634.18	₹3,634.18
10+	₹3,531.30	₹35,313.00

Quantity (min 1)

1 × ₹3,634.18

₹3,634.18

excl. GST

₹4,288.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LT8627SPJV#TRPBF

₹3,634.18 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃
Frequency - Switching: 300kHz~4MHz
Function: Step-down type
Number of Outputs: 1
Features: Frequency synchronization;Light load efficient mode;External compensation;Operating status indication;Dynamic voltage scaling
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.8V~18V
Switch tube (built-in/external): Built-in
Output Current: 16A
Output Voltage: 0V~17.5V
Quiescent Current: 3.6mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.075 g

Overview

The LT8627SP synchronous step-down regulator employs third-generation Silent Switcher technology, specifically designed to combine an ultra-low noise reference with the Silent Switcher architecture for high efficiency and outstanding broadband noise performance. The innovative ultra-low noise architecture delivers superior low-frequency (0.1Hz to 100kHz) output noise performance in a switching regulator. Output voltage is programmable with a single resistor, making output noise virtually independent of output voltage. The Silent Switcher architecture minimizes EMI radiation while achieving high efficiency at high switching frequencies. An exposed die on top of the package allows optional heatsink attachment for significantly improved thermal performance. The LT8627SP is ideal for high-current, noise-sensitive applications that can benefit from the high efficiency of a synchronous switching regulator.

Applications

RF power supplies: PLL, VCO, mixer, LNA, PA
High-speed/high-precision ADC/DAC
Low-noise instrumentation

Key features

Silent Switcher 3 architecture
Ultra-low RMS noise (10Hz to 100kHz): 4μV RMS
Ultra-low spot noise: 4nV/√Hz at 10kHz
Ultra-low EMI radiation on any PCB
Internal bypass capacitors reduce radiated EMI
High efficiency at high frequency
Ultra-fast transient response: 1μs
Fast minimum switch on-time: 15ns
Input voltage range: 2.8V to 18V
Output voltage range: 0V to (PVIN - 0.5V)
Maximum continuous output current 16A
Precision reference: ±0.8% accuracy over full temperature range with remote sense
Dynamic output voltage control support
PolyPhase operation: up to 12 phases
Forced continuous mode capability
Adjustable and synchronizable: 300kHz to 4MHz
Programmable power good signal
24-lead 4mm×4mm LQFN package, exposed bottom pad, optional heat spreader
