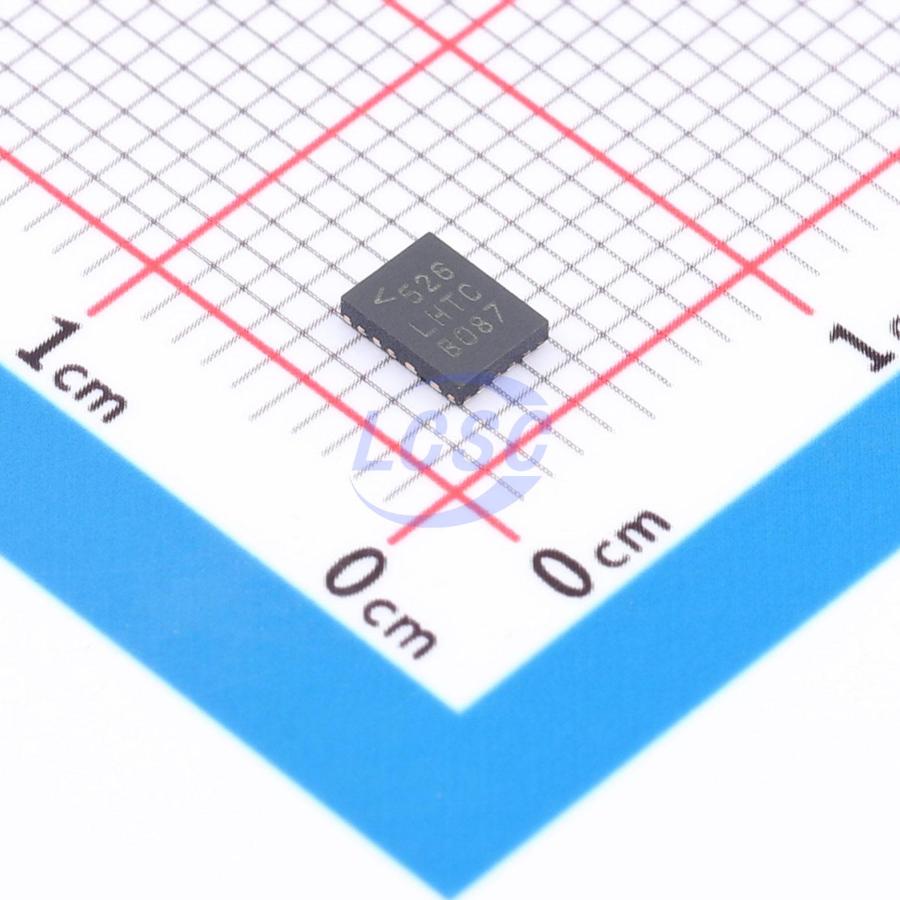

LT8641ARUDCM#PBF

The LT8641A step-down regulator features Silent Switcher architecture designed to minimize EMI emissions while delivering high efficiency at frequencies up to 3MHz. Assembled in a 3mm×4mm side wettable QFN, the monolithic construction with integrated power switches and inclusion of all necessary circuitry yields a solution with a minimal PCB footprint. An ultralow 2.5μA quiescent current — with the output in full regulation — enables applications requiring highest efficiency at very small load currents. Transient response remains excellent and output voltage ripple is below 10mVₚ₋ₚ at any load, from zero to full current. The LT8641A allows high VIN to low Vₒᵤₜ conversion at high frequency with a fast minimum top switch on-time of 35ns. Operation is safe in overload even with a saturated inductor. Essential features are included and easy to use: an opendrain PG pin signals when the output is in regulation. The SYNC/MODE pin selects between Burst Mode, pulseskipping, or spread spectrum mode, and also allows synchronization to an external clock. Soft-start and tracking functionality are accessed through the TR/SS pin. An accurate enable threshold can be set using the EN/UV pin and a resistor at the RT pin programs switch frequency.

Applications

• Automotive and Industrial Supplies
• General Purpose Step-Down

Key features

• Silent Switcher Architecture
• Ultralow EMI Emissions
• Spread Spectrum Frequency Modulation
• High Efficiency at High Frequency
• Up to 95% Efficiency at 1MHz, 12V₁ₙ to 5Vₒᵤₜ
• Up to 94% Efficiency at 2MHz, 12V₁ₙ to 5Vₒᵤₜ
• Wide Input Voltage Range: 3V to 65V
• 3.5A Maximum Continuous, 5A Peak Transient Output
• Ultralow Quiescent Current Burst Mode Operation
• 2.5μA Iₒ Regulating 12V₁ₙ to 3.3Vₒᵤₜ
• Output Ripple < 10mVₚ₋ₚ
• Fast Minimum Switch On-Time: 35ns
• True 2MHz Operation for 24V₁ₙ Systems
• Low Dropout Under All Conditions: 130mV at 1A
• Safely Tolerates Inductor Saturation in Overload
• Adjustable and Synchronizable: 200kHz to 3MHz
• Output Soft-Start and Tracking
• Small 18-Lead 3mm×4mm Side Wettable QFN wit Improved Solder Joint Reliability
• AEC-Q100 Qualified for Automotive Applications
