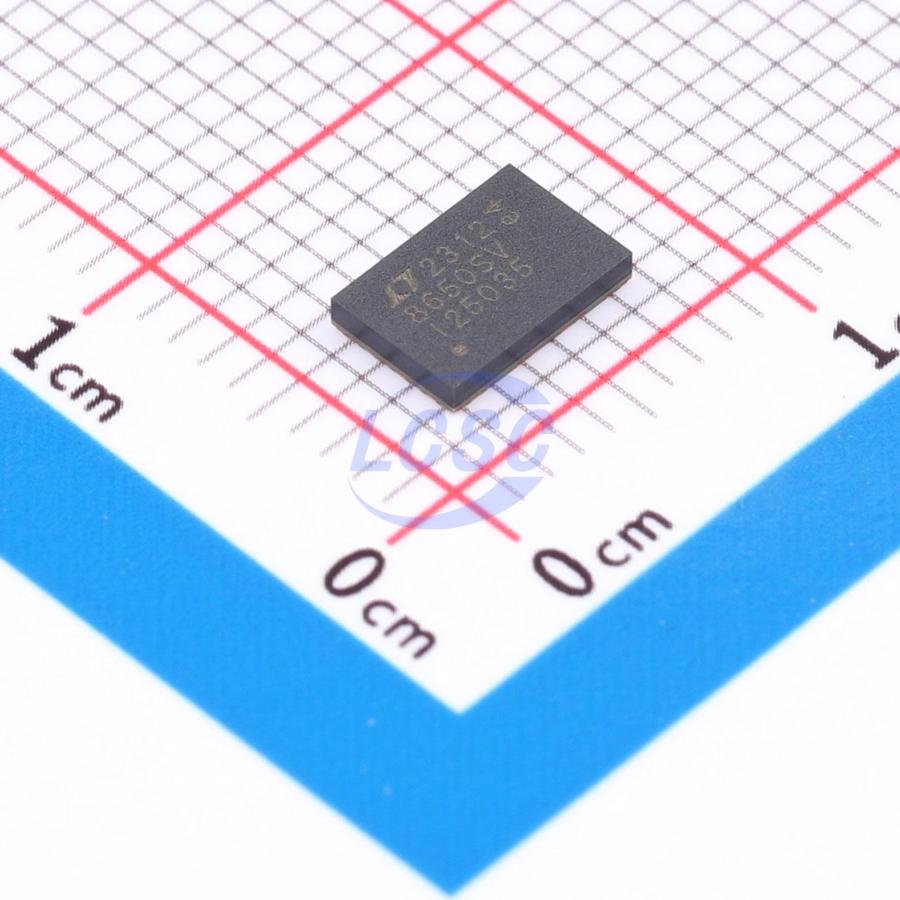

LT8650SHV#PBF

300kHz~3MHz Step-down type Adjustable 4A LQFN-32-EP(4x6) Voltage Regulators - DC DC Switching Regulators RoHS

LQFN-32-EP(4x6)ROHS CompliantActive

Manufacturer: ADI
Manufacturer part #: LT8650SHV#PBF
Store part #: C18166978
Package / case: LQFN-32-EP(4x6)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

30 in stock

#C18166978

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹3,568.46	₹3,568.46
10+	₹3,455.21	₹34,552.10

Quantity (min 1)

1 × ₹3,568.46

₹3,568.46

excl. GST

₹4,210.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 490 per tray

LT8650SHV#PBF

₹3,568.46 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃
Number of Outputs: 2
Frequency - Switching: 300kHz~3MHz
Function: Step-down type
Features: EMI optimization (spread spectrum);Frequency synchronization;Light load efficient mode;Adjustable soft-start;External compensation;Operating status indication
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3V~42V
Switch tube (built-in/external): Built-in
Output Current: 4A
Quiescent Current: 6.2uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tray
Standard pack: 490 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 0.8 g

Overview

The LT8650S is a dual step-down regulator that delivers up to 4A of continuous current from both channels and supports loads up to 6A from each channel. The LT8650S features the second generation Silent Switcher architecture to minimize EMI emissions while delivering high efficiency at high switching frequencies. This includes integration of bypass capacitors to optimize high frequency current loops and make it easy to achieve advertised EMI performance by eliminating layout sensitivity. The fast, clean, low overshoot, switching edges enable high efficiency operation even at high switching frequencies, leading to a small overall solution size. Peak current mode control with a 40ns minimum on-time allows high step down ratios at high switching frequencies. Burst Mode operation features a 6.2µA quiescent current resulting in high efficiency at low output currents, forced continuous mode allows fixed switching frequency operation over the entire output load range, and spread spectrum operation can further reduce EMI emissions. External VC pins allow optimal loop compensation for fast transient response. The VC pins can also be used for current sharing and the CLKOUT pin enables synchronizing two LT8650S chips to generate a 4-phase, 16A supply.

Applications

General Purpose Step-Down
Automotive and Industrial Supplies

Key features

Silent Switcher 2 Architecture: Ultralow EMI on Any PCB Eliminates PCB Layout Sensitivity Internal Bypass Capacitors Reduce Radiated EMI Optional Spread Spectrum Modulation
4A DC from Each Channel Simultaneously
Up to 6A on Either Channel
Ultralow Quiescent Current Burst Mode Operation: 6.2µA I0 Regulating 12VIN to 5VOUT1 and 3.3VOUT2
Output Ripple < 10mVPP
Optional External VC Pin: Fast Transient Response and Current Sharing (Extra 50µA I0/ Channel)
Forced Continuous Mode
High Efficiency at High Frequency
94.6% Efficiency at 2A, 5VOUT from 12VIN at 2MHz
93.3% Efficiency at 4A, 5VOUT from 12VIN at 2MHz
Fast Minimum Switch On-Time: 40ns
Wide Input Voltage Range: 3.0V to 42V
Adjustable and Synchronizable: 300kHz to 3MHz
Small 4mm×6mm 32-Pin LQFN Package
AEC-Q100 Qualified for Automotive Applications
