ADIDatasheet (PDF)

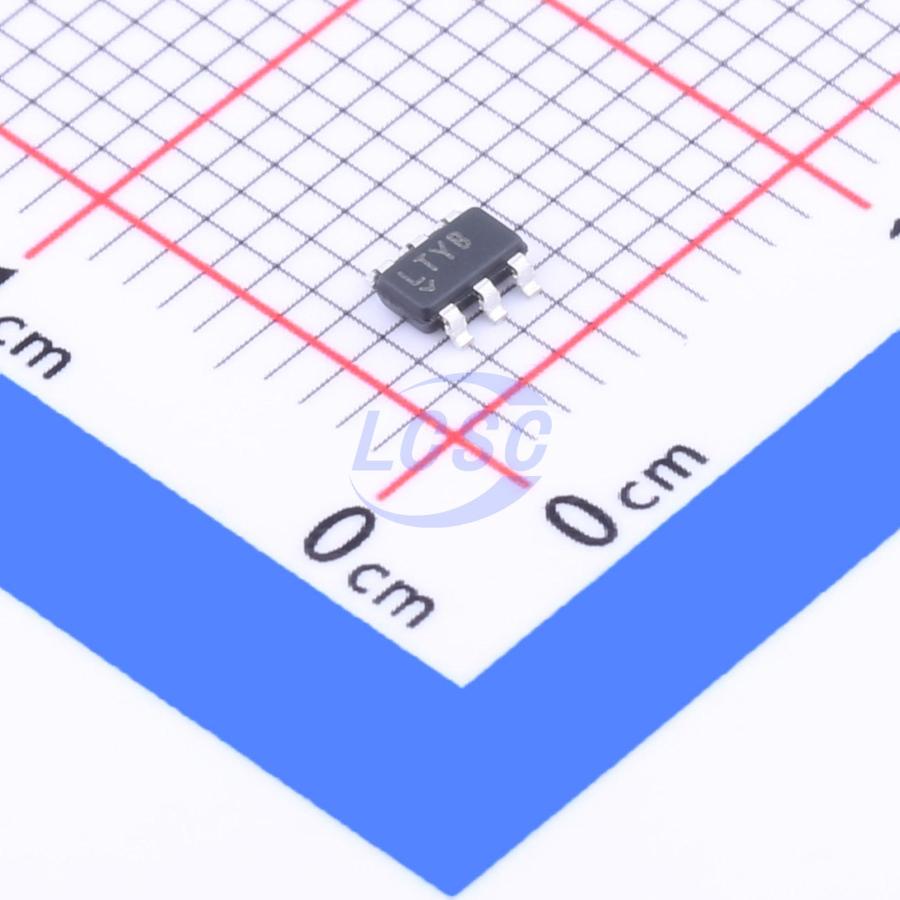

LTC1983ES6-5#TRPBF
Inverted 900kHz -5V 100mA TSOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
TSOT-23-6ROHS3 CompliantActive
100mA Regulated Charge-Pump Inverters in ThinSOT
- Manufacturer
- ADI
- Manufacturer part #
- LTC1983ES6-5#TRPBF
- Store part #
- C580474
- Package / case
- TSOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,593 in stock
#C580474
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹702.26 | ₹702.26 |
| 10+ | ₹613.40 | ₹6,134.00 |
| 30+ | ₹560.42 | ₹16,812.60 |
| 100+ | ₹493.62 | ₹49,362.00 |
| 500+ | ₹468.96 | ₹2,34,480.00 |
| 1,000+ | ₹457.94 | ₹4,57,940.00 |
1 × ₹702.26
₹702.26
excl. GST
₹828.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LTC1983ES6-5#TRPBF
₹702.26 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Inverted
- Frequency - Switching
- 900kHz
- Features
- Low-power standby;Load disconnect;Output short-circuit protection
- Operating Voltage
- 5V~5.5V
- Output Voltage
- -5V
- Output Current
- 100mA
- Quiescent Current
- 25uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
The LTC1983-3 and LTC1983-5 are inverting charge pump DC/DC converters that produce negative regulated outputs. The parts require only three tiny external capacitors and can provide up to 100mA of output current. The devices can operate in open loop mode (creating a -VIN supply) or regulated output mode depending on the input supply voltage and the output current. The LTC1983-3/LTC1983-5 have many useful features for portable applications including very low quiescent current (25µA typical) and a zero current shutdown mode programmed through the SHDN pin. The LTC1983-3/LTC1983-5 are over-temperature and short-circuit protected. The parts are available in a 6-pin low profile (1mm) ThinSOT package.
Applications
- –3V Generation in Single-Supply Systems
- Portable Equipment
- LCD Bias Supplies
- GaAs FET Bias Supplies
Key features
- Fixed Output Voltages: -3V, –5V or Low Noise VIN to -VIN Inverted Output
- ±4% Output Voltage Accuracy
- Low Quiescent Current: 25µA
- 100mA Output Current Capability
- 2.3V to 5.5V Operating Voltage Range
- Internal 900kHz Oscillator
- “Zero Current” Shutdown
- Short-Circuit and Over-Temperature Protected
- Low Profile (1mm) ThinSOT Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LTC1983ES6-5#TRMPBF#C117346ADI · TSOT-23-6 | ADI | TSOT-23-6 | 528 | ₹851.51 · 528 in stock | View |
