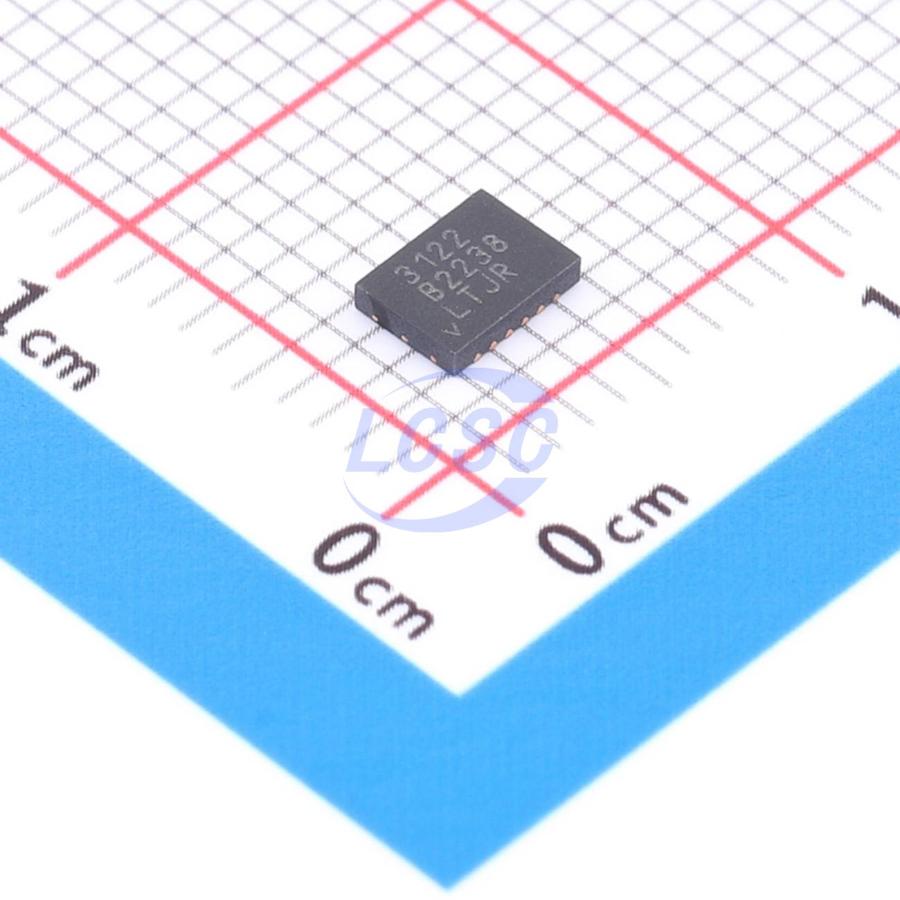

LTC3122IDE#PBF

A synchronous step-up DC/DC converter with true output disconnect and inrush current limiting. The 2.5A current limit along with the ability to program output voltages up to 15V makes it well suited for a variety of demanding applications. Once started, operation will continue with inputs down to 500mV, extending runtime in many applications. It features output disconnect in shutdown, dramatically reducing input power drain and enabling VOUT to completely discharge. Adjustable PWM switching from 100kHz to 3MHz optimizes applications for highest efficiency or smallest solution footprint. The oscillator can also be synchronized to an external clock for noise sensitive applications. Selectable Burst Mode operation reduces quiescent current to 25µA, ensuring high efficiency across the entire load range. An internal soft-start limits inrush current during start-up. Other features include <1µA shutdown current and robust protection under short-circuit, thermal overload, and output overvoltage conditions. It is offered in both a low profile 12-lead 3mm×4mm×0.75mm DFN package and a 12-lead thermally enhanced MSOP package.

Applications

• RF Power
• Piezo Actuators
• Small DC Motors
• 12V Analog Rail From Battery, 5V, or Backup Capacitor

Key features

• VIN Range: 1.8V to 5.5V, 500mV After Start-Up
• Output Voltage Range: 2.21 to 15V
• 800mA Output Current for VIN = 5V and VOUT = 12V
• Output Disconnects from Input When Shut Down
• Synchronous Rectification: Up to 95% Efficiency
• Inrush Current Limit
• Up to 3MHz Adjustable Switching Frequency
• Synchronizable to External Clock
• Selectable Burst Mode Operation: 25µA
• Output Overvoltage Protection
• Soft-Start
• <1µA in Shutdown
• 12-Lead, 3mm×4mm×0.75mm Thermally Enhanced DFN and MSOP Packages
