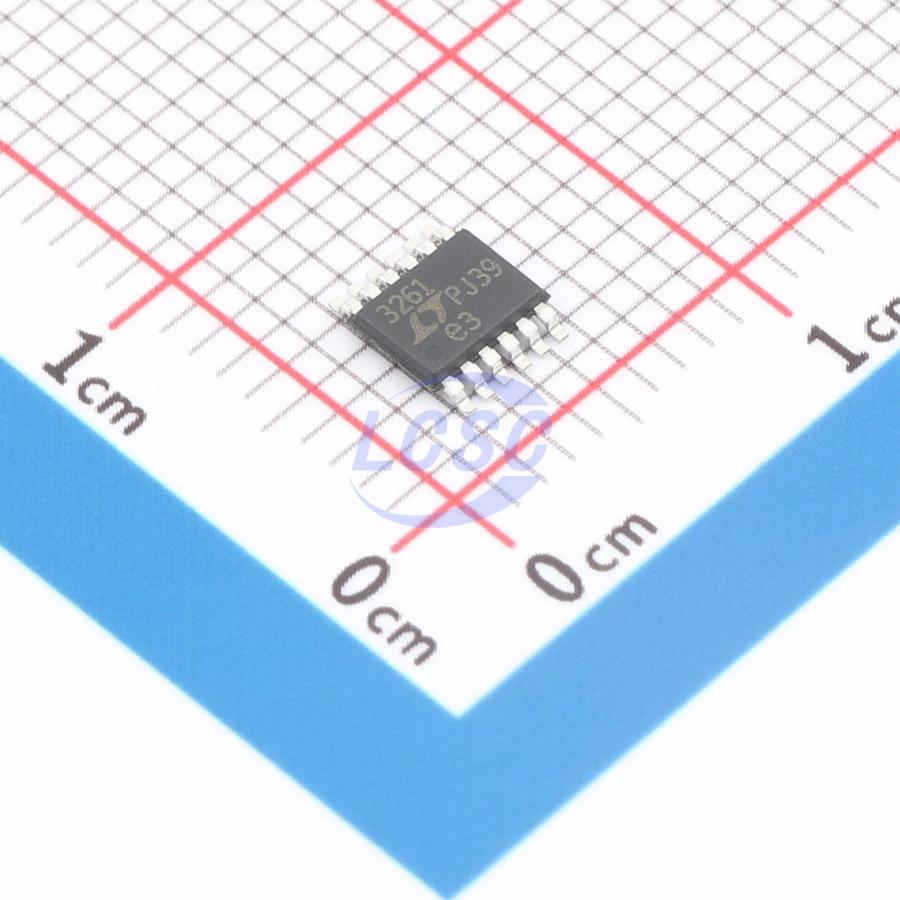

LTC3261IMSE#PBF
Inverted 500kHz -32V~-4.5V 100mA MSOP-12-EP-0.65mm Voltage Regulators - DC DC Switching Regulators RoHS
MSOP-12-EP-0.65mmROHS3 CompliantActive
High Voltage, Low Quiescent Current Inverting Charge Pump
- Manufacturer
- ADI
- Manufacturer part #
- LTC3261IMSE#PBF
- Store part #
- C684400
- Package / case
- MSOP-12-EP-0.65mm
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C684400
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,634.43 | ₹1,634.43 |
| 10+ | ₹1,464.53 | ₹14,645.30 |
| 30+ | ₹1,361.13 | ₹40,833.90 |
| 100+ | ₹1,274.22 | ₹1,27,422.00 |
1 × ₹1,634.43
₹1,634.43
excl. GST
₹1,928.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 37 per tube
LTC3261IMSE#PBF
₹1,634.43 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Inverted
- Frequency - Switching
- 500kHz
- Features
- Soft-start;Output short-circuit protection;Overcurrent Protection;Low-power standby
- Operating Voltage
- 4.5V~32V
- Output Voltage
- -32V~-4.5V
- Output Current
- 100mA
- Quiescent Current
- 60uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 37 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.332 g
Overview
The LTC3261 is a high voltage inverting charge pump that operates over a wide 4.5V to 32V input range and is capable of delivering up to 100mA of output current. The charge pump employs either low quiescent current Burst Mode operation or low noise constant frequency mode. In Burst Mode operation the charge pump Vout regulates to - 0.94 • VIN and the LTC3261 draws only 60μA of quiescent current. In constant frequency mode the charge pump produces an output equal to - VIN and operates at a fixed 500kHz or to a programmed frequency between 50kHz to 500kHz using an external resistor. The LTC3261 is available in a thermally enhanced 12 - pin MSOP package.
Applications
- Bipolar/Inverting Supplies
- Industrial/Instrumentation Bias Generators
- Portable Medical Equipment
- Portable Instruments
Key features
- 4.5V to 32V VIN Range
- Inverting Charge Pump Generates - VIN
- 60pA Quiescent Current in Burst Mode Operation
- Charge Pump Output Current Up to 100mA
- 50kHz to 500kHz Programmable Oscillator Frequency
- Short - Circuit/Thermal Protection
- Low Profile Thermally Enhanced 12 - Pin MSOP Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LTC3261EMSE#PBF#C117414ADI · MSOP-12-EP-0.65mm | ADI | MSOP-12-EP-0.65mm | 45 | ₹1,361.75 · 45 in stock | View |
 | LTC3261MPMSE#PBF#C684402ADI · MSOP-12-EP-0.65mm | ADI | MSOP-12-EP-0.65mm | 13 | ₹1,395.47 · 13 in stock | View |
 | LTC3261IMSE#TRPBF#C684401ADI · MSOP-12-EP-0.65mm | ADI | MSOP-12-EP-0.65mm | 21 | ₹1,008.26 · 21 in stock | View |
| LTC3261HMSE#TRPBF#C684399ADI · MSOP-12-EP-0.65mm | ADI | MSOP-12-EP-0.65mm | 99 | ₹1,148.01 · 99 in stock | View | |
 | LTC3261MPMSE#TRPBF#C684403ADI · MSOP-12-EP-0.65mm | ADI | MSOP-12-EP-0.65mm | 7 | ₹1,286.62 · 7 in stock | View |
