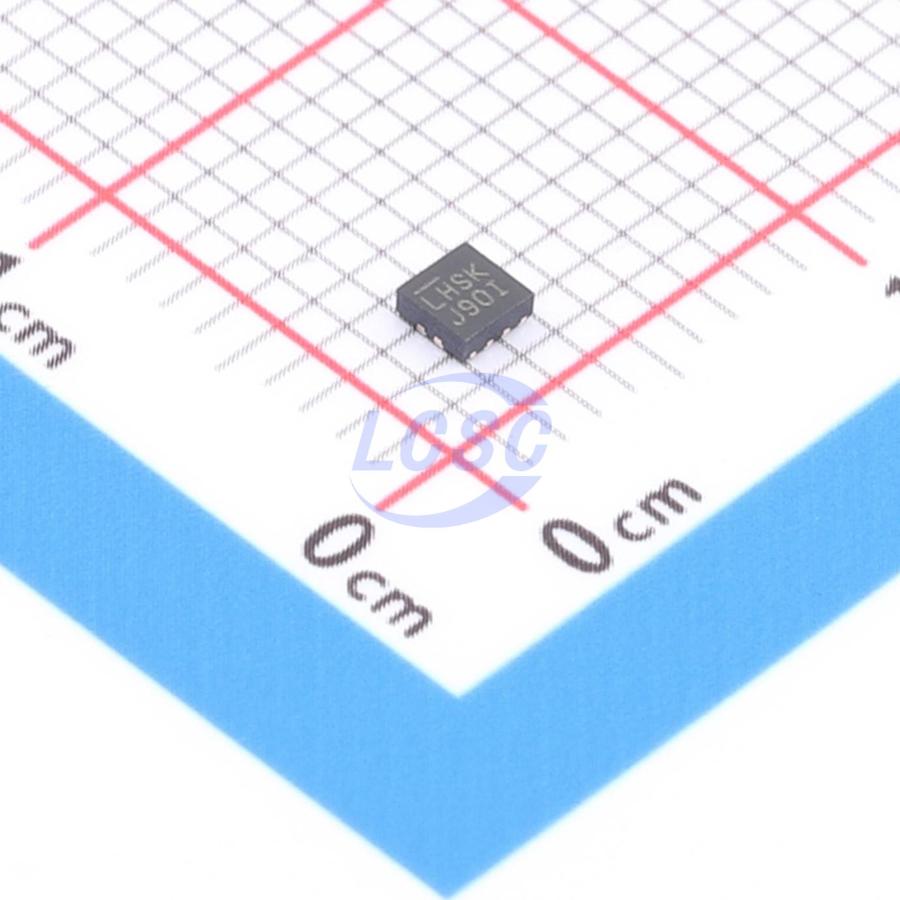

LTC3302ARUCM#TRPBF

The LTC3302 is a very small, high efficiency, low noise, monolithic synchronous 2A step-down DC/DC converter operating from a 2.25V to 5.5V input supply. Using constant frequency, peak current mode control, this regulator achieves fast transient response with small external components. The LTC3302 operates in forced continuous or pulse-skipping mode for low noise, or in low-ripple Burst Mode operation for high efficiency at light loads, ideal for battery-powered systems. The IC regulates output voltages as low as 500mV. The adjustable version operates from 500mV to VIN with two additional external resistors. Other features include output overvoltage protection, short-circuit protection, thermal shutdown, clock synchronization, and up to 100% duty cycle operation for low dropout. The LTC3302 is available in a low profile 2mm×2mm FCQFN package with exposed pad and side wettable flanks.

Applications

• Optical Networking
• Servers
• Telecom
• Automotive
• Industrial
• Communications
• Distributed DC Power Systems (POL)
• FPGA
• ASIC
• µP Core Supplies

Key features

• High Efficiency: 30mΩ NMOS, 85mΩ PMOS
• Peak Current Mode Control
• 27ns Minimum On-Time Wide Bandwidth, Fast Transient Response
• Low-Ripple Burst Mode Operation with IO of 80µA
• Up to 6MHz Operation
• Safely Tolerates Inductor Saturation in Overload
• VIN Range: 2.25V to 5.5V
• Fixed VOUT Range: 0.5V to 3.65V, Factory Programmed in 50mV Steps
• VOUT Accuracy: ±1% Overtemperature Range
• Precision 400mV Enable Threshold
• Shutdown Current: 1µA
• Power Good, Internal Compensation and Soft-Start
• Thermally Enhanced, 12-Pin, 2mm×2mm, Flip Chip (FCQFN) Package with Side Wettable Flanks
• AEC-Q100 Qualified for Automotive Applications
