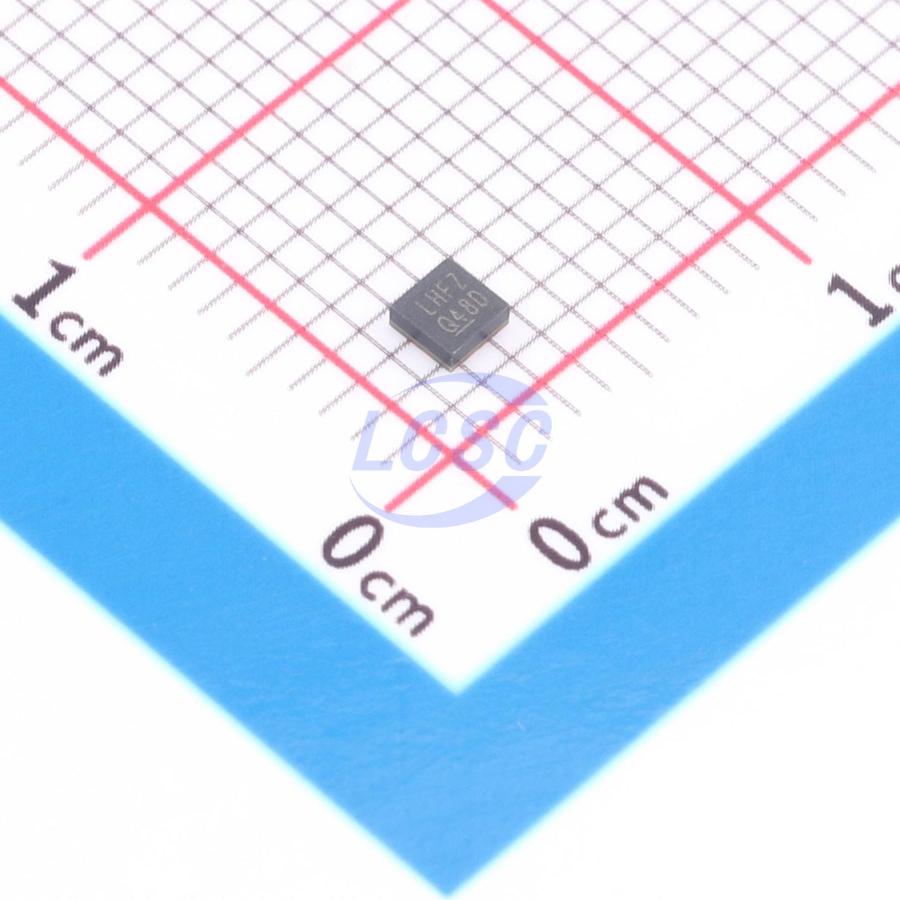

LTC3315BJV#TRMPBF

The LTC3315B features dual 2A monolithic synchronous step-down converters operating from a 2.25V to 5.5V input supply in one package for space-constrained applications with demanding performance requirements. Using constant frequency, peak current mode control at switching frequencies up to 10MHz with a minimum ontime as low as 25ns, both bucks achieve high efficiency and fast transient response in a very small application footprint. The LTC3315B operates in forced continuous or pulse skip mode for low noise or in Burst Mode operation for high efficiency at light loads. The common buck switching frequency is 6MHz and can be synchronized to an external oscillator via the MODE/SYNC pin. The LTC3315B can regulate outputs as low as 500mV. Other features include precision enable thresholds, a PGOOD signal, output overvoltage protection, thermal shutdown, output short-circuit protection, and up to 100% duty cycle operation for low dropout. The LTC3315B is available in a compact 2mm × 2mm LQFN package.

Applications

• Servers
• Telecom Supplies
• Optical Networking
• Distributed DC Power Systems (POL)
• FPGA
• ASIC
• µP Core Supplies
• Industrial/Automotive/Communications

Key features

• Dual Outputs Each with 2A Output Current
• High Efficiency: 19mΩ NMOS and 75mΩ PMOS
• Wide Bandwidth, Fast Transient Response
• Switching Frequency Synchronizable Up to 10MHz
• VIN Range: 2.25V to 5.5V
• VOUT Range: 0.5V to VIN
• VOUT Accuracy: ±1%
• Low Ripple Burst Mode Operation
• Peak Current Mode Control
• Minimum On-Time: 25ns
• Safely Tolerates Inductor Saturation in Overload
• Shutdown Current: 1.2μA
• Precision 400mV Enable Thresholds
• Internal Soft-Start and Compensation
• Power Good Output
• Low Profile, Thermally Enhanced 12-Lead 2mm×2mm×0.74mm LQFN Package
• AEC-Q100 Qualified for Automotive Applications
