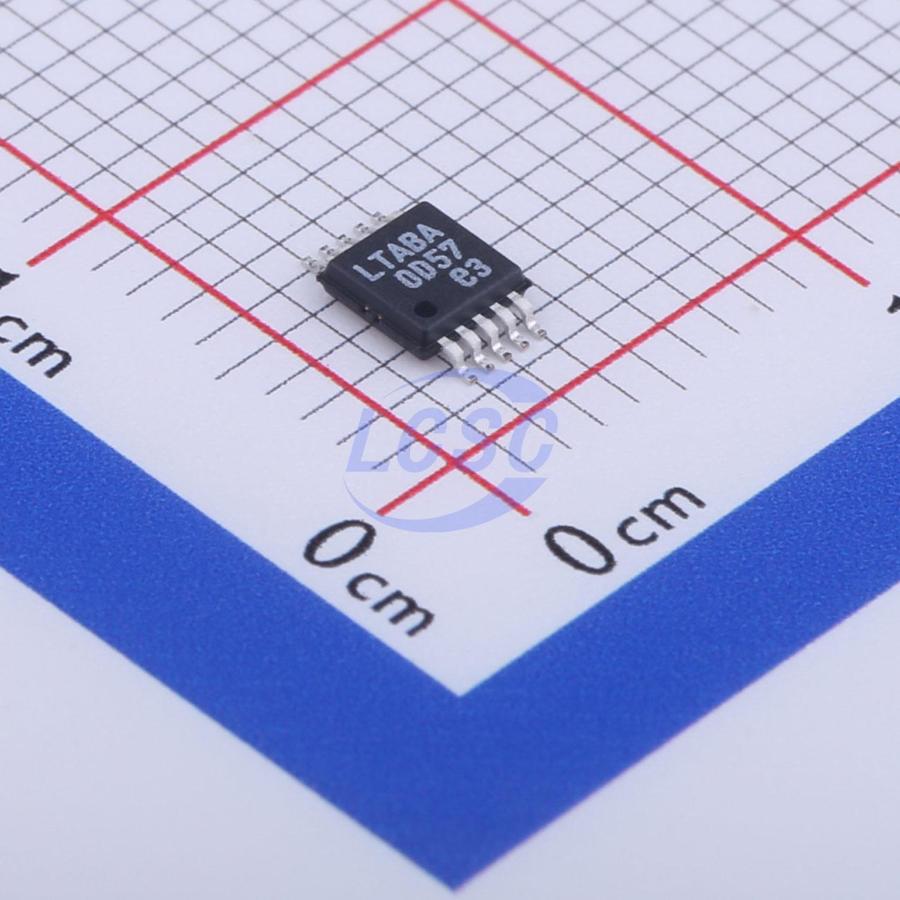

LTC3407EMSE#TRPBF

The LTC3407 is a dual, constant frequency, synchronous step down DC/DC converter. Intended for low power applications, it operates from 2.5V to 5.5V input voltage range and has a constant 1.5MHz switching frequency, allowing the use of tiny, low cost capacitors and inductors 2mm or less in height. Each output voltage is adjustable from 0.6V to 5 V. Internal synchronous 0.35Ω, 1A power switches provide high efficiency without the need for external Schottky diodes. A user selectable mode input is provided to allow the user to trade-off ripple noise for low power efficiency. Burst Mode operation provides high efficiency at light loads, while pulse-skipping mode provides low ripple noise at light loads. To further maximize battery life, the P-channel MOSFETs are turned on continuously in dropout (100% duty cycle), and both channels draw a total quiescent current of only 40μA. In shutdown, the device draws <1μA.

Applications

• PDAs/Palmtop PCs
• Digital Cameras
• Cellular Phones
• Portable Media Players
• PC Cards
• Wireless and DSL Modems

Key features

• High Efficiency: Up to 96%
• Very Low Quiescent Current: Only 40μA
• 1.5MHz Constant Frequency Operation
• High Switch Current: 1A on Each Channel
• No Schottky Diodes Required
• Low RDS(ON) Internal Switches: 0.35Ω
• Current Mode Operation for Excellent Line and Load Transient Response
• Short-Circuit Protected
• Low Dropout Operation: 100% Duty Cycle
• Ultralow Shutdown Current: IQ<1μA
• Output Voltages from 5V down to 0.6V
• Power-On Reset Output
• Externally Synchronizable Oscillator
• Small Thermally Enhanced MSOP and 3mm×3mm DFN Packages
