ADI

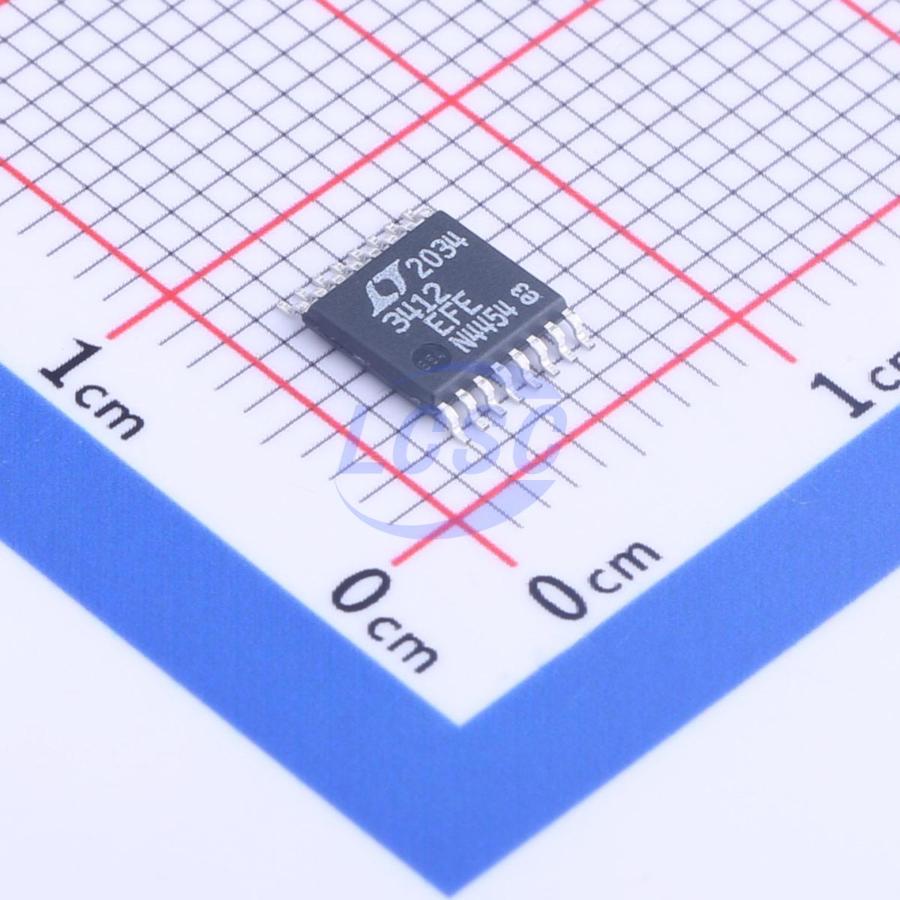

LTC3412EFE#TRPBF

4MHz Step-down type Adjustable 2.5A 800mV~5V TSSOP-16-EP Voltage Regulators - DC DC Switching Regulators RoHS

TSSOP-16-EPROHS3 CompliantActive

2.5A, 4MHz, single-chip synchronous step-down voltage regulator

Manufacturer: ADI
Manufacturer part #: LTC3412EFE#TRPBF
Store part #: C580724
Package / case: TSSOP-16-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

50 in stock

#C580724

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹709.54	₹709.54
10+	₹608.96	₹6,089.60
30+	₹547.77	₹16,433.10
100+	₹496.40	₹49,640.00

Quantity (min 1)

1 × ₹709.54

₹709.54

excl. GST

₹837.26 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LTC3412EFE#TRPBF

₹709.54 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 4MHz
Function: Step-down type
Number of Outputs: 1
Features: Frequency synchronization;Light load efficient mode;Adjustable soft-start;Operating status indication
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.625V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 2.5A
Output Voltage: 800mV~5V
Quiescent Current: 62uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.25 g

Overview

The LTC3412 can be configured for either Burst Mode operation or forced continuous operation. Forced continuous operation reduces noise and RF interference while Burst Mode operation provides high efficiency by reducing gate charge losses at light loads. In Burst Mode operation, external control of the burst clamp level allows the output voltage ripple to be adjusted according to the requirements of the application. To further maximize battery life, the P-channel MOSFET is turned on continuously in dropout (100% duty cycle).

Applications

Portable Instruments
Battery-Powered Equipment
Notebook Computers
Distributed Power Systems
Cellular Telephones
Digital Cameras

Key features

High Efficiency: Up to 95%
2.5A Output Current
Low Quiescent Current: 62µA
Low RDS(ON) Internal Switches: 85mΩ
Programmable Frequency: 300kHz to 4MHz
No Schottky Diode Required
±2% Output Voltage Accuracy
0.8V Reference Allows Low Output Voltage
Selectable Forced Continuous/Burst Mode Operation with Adjustable Burst Clamp
Synchronizable Switching Frequency
Low Dropout Operation: 100% Duty Cycle
Power Good Output Voltage Monitor
Overtemperature Protection
Available in 16-Lead Thermally Enhanced TSSOP and QFN Packages

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LTC3412AEFE#TRPBF#C684695ADI · TSSOP-16-EP	ADI	TSSOP-16-EP	15	₹1,065.41 · 15 in stock	View
LM2854MH-500/NOPB#C1355662TI · HTSSOP-16-EP	TI	HTSSOP-16-EP	5	₹581.17 · 5 in stock	View
LM2854MHX-500/NOPB#C2070886TI · HTSSOP-16-EP	TI	HTSSOP-16-EP	5	₹760.24 · 5 in stock	View
LM2854MHX-1000/NOPB#C2072822TI · HTSSOP-16-EP	TI	HTSSOP-16-EP	3	₹712.73 · 3 in stock	View
LM20123MH/NOPB#C206175TI · HTSSOP-16-EP	TI	HTSSOP-16-EP	15	₹695.55 · 15 in stock	View
