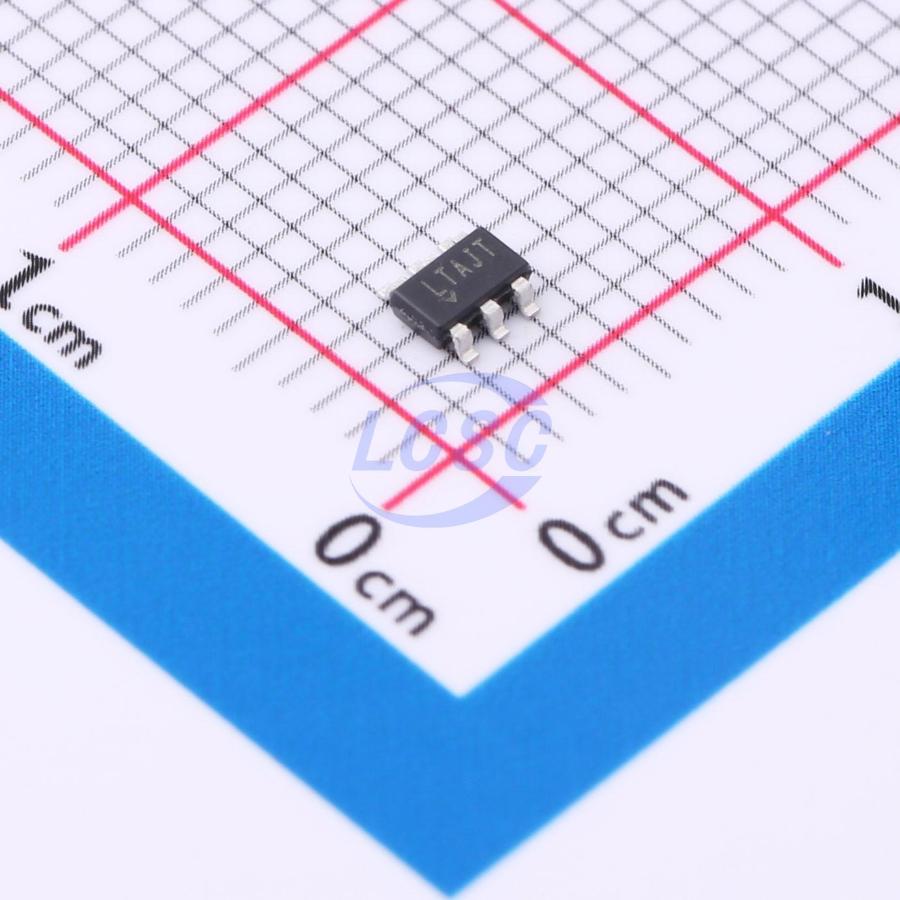

LTC3426ES6#TRPBF
1.2MHz Boost Adjustable 2.25V~5V 2A TSOT-23-6L Voltage Regulators - DC DC Switching Regulators RoHS
TSOT-23-6LROHS3 CompliantActive
1.2MHz Step-Up DC/DC Converter in SOT-23
- Manufacturer
- ADI
- Manufacturer part #
- LTC3426ES6#TRPBF
- Store part #
- C684768
- Package / case
- TSOT-23-6L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22 in stock
#C684768
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹816.38 | ₹816.38 |
| 10+ | ₹702.09 | ₹7,020.90 |
| 30+ | ₹632.34 | ₹18,970.20 |
| 100+ | ₹574.10 | ₹57,410.00 |
1 × ₹816.38
₹816.38
excl. GST
₹963.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LTC3426ES6#TRPBF
₹816.38 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 1.2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 1.6V~4.3V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2.25V~5V
- Output Current
- 2A
- Quiescent Current
- 600uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.08 g
Overview
The LTC3426 step-up switching regulator generates an output voltage of up to 5.5V from an input voltage as low as 1.6V. Ideal for applications where space is limited, it switches at 1.2MHz, allowing the use of tiny, low cost and low profile external components. Its internal 2A, 100mΩ NMOS switch provides high efficiency even at heavy load, while the constant frequency, current mode architecture results in low, predictable output noise that is easy to filter. Antiringing circuitry reduces EMI concerns by damping the inductor while in discontinuous mode, and internal soft-start eases inrush current worries. Internal frequency compensation is designed to accommodate ceramic output capacitors, further reducing noise. The device features very low shutdown current of 0.5μA. The LTC3426 is available in the 6-lead SOT-23 package.
Applications
- White LED Driver Supply
- Local 3.3V or 5V Supply
- Battery Back-Up
Key features
- Internal 2A MOSFET Switch
- 1.2MHz Switching Frequency
- Integrated Soft-Start
- Low 1.6V VIN Operation
- Low RDS(ON) Switch: 100mΩ at 5V Output
- Delivers 5V at 800mA from a 3.3V Input
- Delivers 3.3V at 800mA from a 2.5V Input
- Uses Small, Low Profile External Components
- Low Profile (1mm) SOT-23 (ThinSOT) Package
