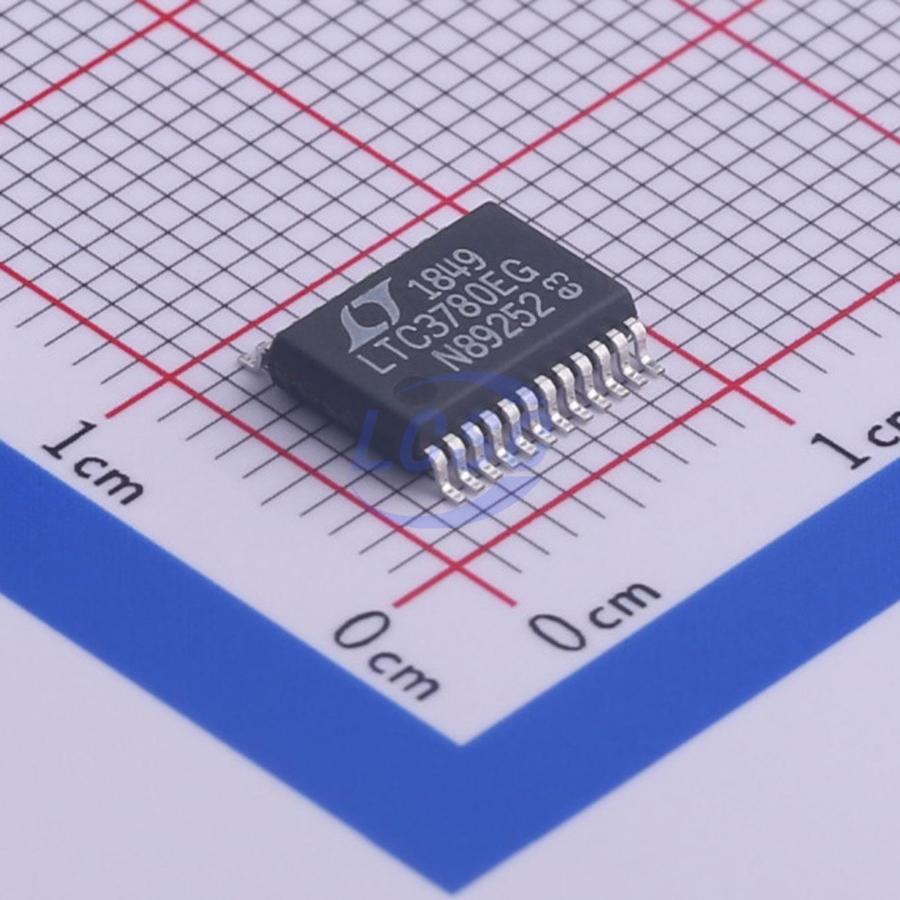

LTC3780EG#TRPBF
1 800mV~30V 3A Adjustable Buck-Boost SSOP-24-208mil DC DC Switching Controllers RoHS
High Efficiency, Synchronous, 4-Switch Buck-Boost Controller
- Manufacturer
- ADI
- Manufacturer part #
- LTC3780EG#TRPBF
- Store part #
- C462631
- Package / case
- SSOP-24-208mil
- Category
- DC DC Switching Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,450 in stock
#C462631
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,931.82 | ₹1,931.82 |
| 10+ | ₹1,705.68 | ₹17,056.80 |
| 30+ | ₹1,487.57 | ₹44,627.10 |
| 100+ | ₹1,372.00 | ₹1,37,200.00 |
1 × ₹1,931.82
₹1,931.82
excl. GST
₹2,279.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
LTC3780EG#TRPBF
₹1,931.82 for 1 + GST
Specifications
- Synchronous Rectifier
- Yes
- Features
- Adjustable soft-start;Load disconnect;Operating status indication;Light load efficient mode;Frequency synchronization;Built-in LDO regulator;Overcurrent Protection
- Number of Channels
- 1
- Topology
- Buck-Boost
- Operating Voltage
- 4V~30V
- Switch tube (built-in/external)
- External
- Output Voltage
- 800mV~30V
- Operating Temperature
- -40℃~+85℃@(TJ)
- Output Current
- 3A
- Frequency - Switching
- 200kHz~400kHz
- Output Type
- Adjustable
- Function
- Buck-Boost
- Quiescent Current
- 2.4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.254 g
Overview
The LTC3780 is a high performance buck-boost switching regulator controller that operates from input voltages above, below or equal to the output voltage. The constant frequency current mode architecture allows a phaselockable frequency of up to 400kHz. With a wide 4V to 30V (36V maximum) input and output range and seamless transfers between operating modes, the LTC3780 is ideal for automotive, telecom and battery-powered systems. The operating mode of the controller is determined through the FCB pin. For boost operation, the FCB mode pin can select among Burst Mode operation, discontinuous mode and forced continuous mode. During buck operation, the FCB mode pin can select among skip-cycle mode, discontinuous mode and forced continuous mode. Burst Mode operation and skip-cycle mode provide high efficiency operation at light loads while forced continuous mode and discontinuous mode operate at a constant frequency. Fault protection is provided by an output overvoltage comparator and internal foldback current limiting. A power good output pin indicates when the output is within 7.5% of its designed set point.
Applications
- Automotive Systems
- Telecom Systems
- DC Power Distribution Systems
- High Power Battery-Operated Devices
- Industrial Control
Key features
- Single Inductor Architecture Allows VIN Above, Below or Equal to VOUT
- Wide VIN Range: 4V to 36V Operation
- Synchronous Rectification: Up to 98% Efficiency
- Current Mode Control
- ±1% Output Voltage Accuracy: 0.8V < VOUT < 30 V
- Phase-Lockable Fixed Frequency: 200kHz to 400kHz
- Power Good Output Voltage Monitor
- Internal LDO for MOSFET Supply
- Quad N-Channel MOSFET Synchronous Drive
- VOUT Disconnected from VIN During Shutdown
- Adjustable Soft-Start Current Ramping
- Foldback Output Current Limiting
- Selectable Low Current Modes
- Output Overvoltage Protection
- Available in 24-Lead SSOP and Exposed Pad (5mm×5mm) 32-Lead QFN Packages
