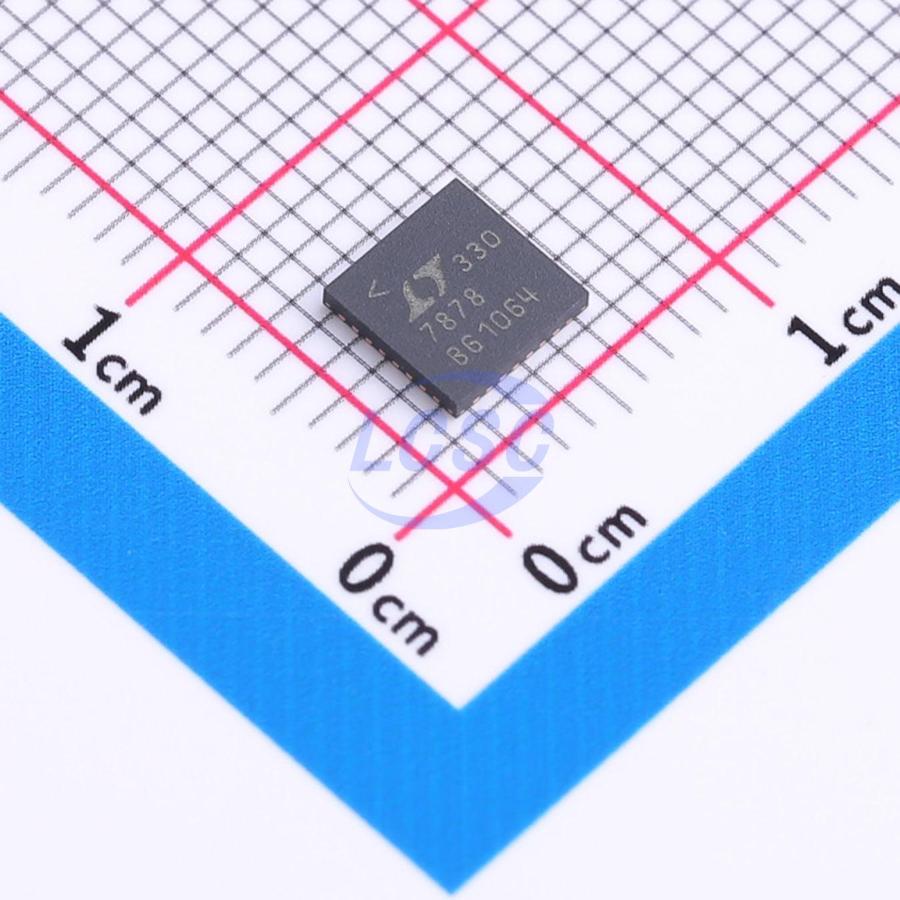

LTC7878AUH#TRPBF
1 1V~70V Adjustable Buck-Boost QFN-32(5x5) DC DC Switching Controllers RoHS
High Efficiency Synchronous Rectification 4-Switch Buck-Boost Controller
- Manufacturer
- ADI
- Manufacturer part #
- LTC7878AUH#TRPBF
- Store part #
- C5665467
- Package / case
- QFN-32(5x5)
- Category
- DC DC Switching Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,515 in stock
#C5665467
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,242.57 | ₹1,242.57 |
| 10+ | ₹1,062.14 | ₹10,621.40 |
| 30+ | ₹952.02 | ₹28,560.60 |
| 100+ | ₹859.73 | ₹85,973.00 |
1 × ₹1,242.57
₹1,242.57
excl. GST
₹1,466.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LTC7878AUH#TRPBF
₹1,242.57 for 1 + GST
Specifications
- Synchronous Rectifier
- Yes
- Features
- Adjustable current limiting;Cycle-by-cycle current limiting;Adjustable soft-start;Frequency synchronization;Light load efficient mode;Operating status indication
- Number of Channels
- 1
- Topology
- Buck-Boost
- Operating Voltage
- 5V~70V
- Switch tube (built-in/external)
- External
- Output Voltage
- 1V~70V
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 100kHz~600kHz
- Output Type
- Adjustable
- Function
- Buck-Boost
- Quiescent Current
- 3mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.161 g
Overview
A high performance buck-boost switching regulator controller that operates from an input voltage above, below or equal to the output voltage. The constant-frequency, peak current mode architecture allows a phase-lockable switching frequency of up to 600kHz, while a programmable input or output current loop regulates the average input or output current accurately supporting battery charging applications. With a wide 5V to 70V input and output range and seamless, low noise transitions between operating regions, it is ideal for industrial and telecom systems. Features forced continuous mode (FCM)/ pulse-skipping mode operation. Supports multiphase/ multi-ICs parallel operation for high power applications. Additional features include 7V N-Channel gate drivers, smart EXTVCC auxiliary supply and programmable inductor peak current limit. A PGOOD pin indicates when the output is within 10% of its designed set point. Available in a low profile 32-Lead QFN package.
Applications
- Industrial and Telecom Systems
- Distributed DC Power or Battery Systems
Key features
- Single Inductor Architecture Allows VIN Above, Below or Equal to the Regulated VOUT
- Synchronous Rectification: Up to 98% Efficiency
- Wide VIN Voltage Range: 5V to 70V
- ±1% Output Voltage Accuracy: 1V ≤ VOUT ≤ 70V
- DCR or RSENSE Current Sensing
- Peak Current Mode Control in Buck/Boost/Buck-Boost Mode
- Programmable Input or Output Current Regulation
- 7V NMOS Gate Drivers
- Phase-Lockable Frequency (100kHz to 600kHz)
- Multiphase/Multi-ICs Parallel Operation
- Selectable Continuous or Pulse-Skipping Mode
- Operation and Inductor Peak Current Limits
- Small 32-Lead 5mm × 5mm QFN Package
