LRC

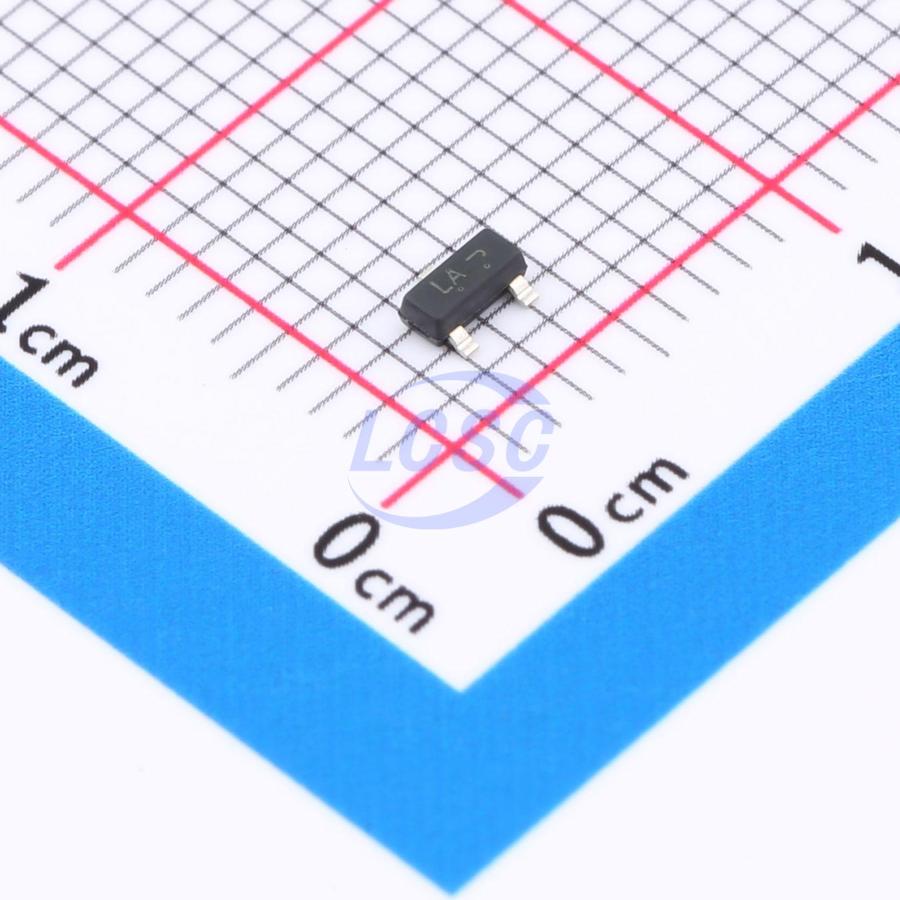

LTL431ALT1G

2.5V~36V ±0.5% 2.487V~36V 100mA Adjustable SOT-23 Voltage Reference

SOT-23RoHSActive

LINEAR INTEGRATED CIRCUIT PROGRAMMABLE PRECISION REFERENCE

Manufacturer: LRC
Manufacturer part #: LTL431ALT1G
Store part #: C83767
Package / case: SOT-23
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,910 in stock

#C83767

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹5.53	₹55.30
100+	₹4.79	₹479.00
300+	₹4.43	₹1,329.00
3,000+	₹4.15	₹12,450.00
6,000+	₹3.93	₹23,580.00
9,000+	₹3.82	₹34,380.00

Quantity (min 10, multiples of 10)

10 × ₹5.53

₹55.30

excl. GST

₹65.25 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LTL431ALT1G

₹55.30 for 10 + GST

Specifications

Output Voltage: 2.5V~36V
Tolerance: ±0.5%
Voltage - Supply: 2.487V~36V
Minimum Cathode Current for Regulation: 1mA
Output Current: 100mA
Operating Temperature: 0℃~+70℃
Output Type: Adjustable

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.031 g

Overview

The LRC LTL431 is a three-terminal adjustable regulator with a guaranteed thermal stability over applicable temperature ranges. The output voltage may be set to any value between Vref (approximately 2.5V) and 36V with two external resistors. It provides very wide applications, including shunt regulator, series regulator, switching regulator, voltage reference and others.

Key features

Programmable output Voltage to 36V.
Low dynamic output impedance 0.2Q.
Sink current capability of 1 to 100mA.
Equivalent full-range temperature coefficient of 50ppm/°C typical for operation over full rated operating temperature range.
Pb-Free package is available
