LRCDatasheet (PDF)

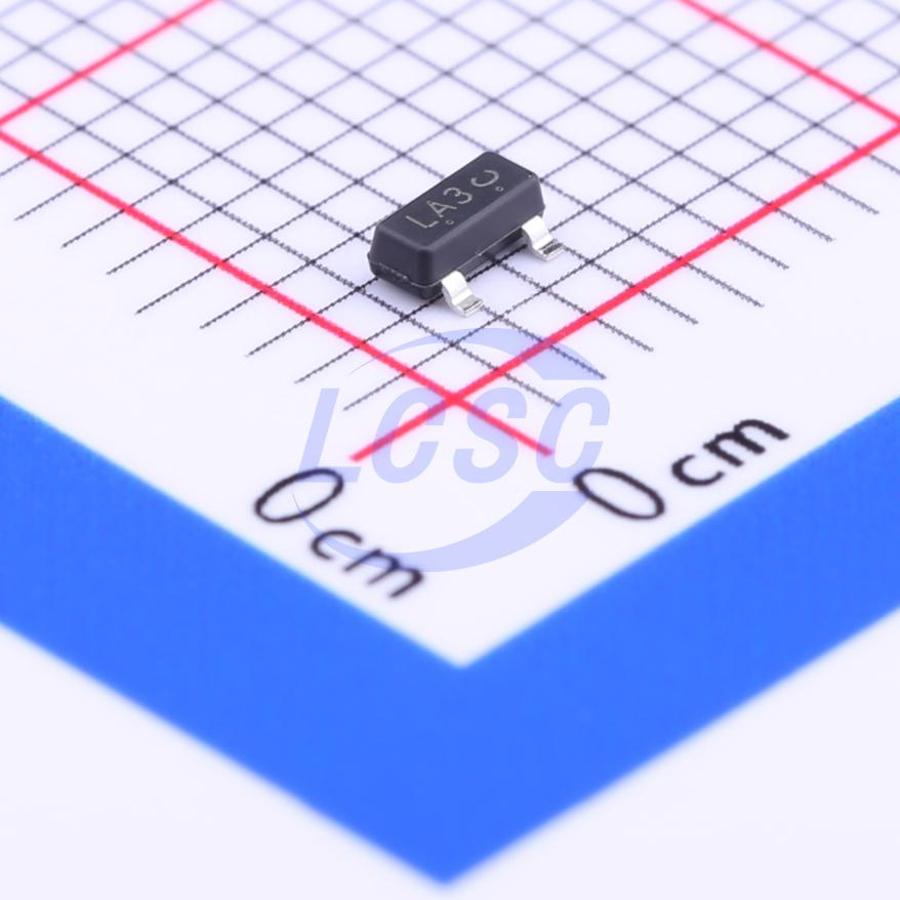

LTL431APTLT1G
2.495V~36V ±0.5% 2.5V~36V 100mA Adjustable SOT-23 Voltage Reference
SOT-23RoHSActive
LTL431 Programmable Precision Reference
- Manufacturer
- LRC
- Manufacturer part #
- LTL431APTLT1G
- Store part #
- C79294
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,800 in stock
#C79294
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.27 | ₹82.70 |
| 100+ | ₹6.64 | ₹664.00 |
| 300+ | ₹5.82 | ₹1,746.00 |
| 3,000+ | ₹4.37 | ₹13,110.00 |
| 6,000+ | ₹3.86 | ₹23,160.00 |
| 9,000+ | ₹3.63 | ₹32,670.00 |
10 × ₹8.27
₹82.70
excl. GST
₹97.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LTL431APTLT1G
₹82.70 for 10 + GST
Specifications
- Output Voltage
- 2.495V~36V
- Tolerance
- ±0.5%
- Voltage - Supply
- 2.5V~36V
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel;Series
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
The LRC LTL431 is a three-terminal adjustable regulator with a guaranteed thermal stability over applicable temperature ranges. The output voltage may be set to any value between Vref (approximately 2.5V) and 36V with two external resistors. It provides very wide applications, including shunt regulator, series regulator, switching regulator, voltage reference and others.
Key features
- Programmable output Voltage to 36V.
- Low dynamic output impedance 0.2.
- Sink current capability of 1 to 100mA.
- Equivalent full-range temperature coefficient of 50ppm*C typical for operation over full rated operating temperature range.
- Pb-Free package is available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LTL431ATLT1G#C83052LRC · SOT-23 | LRC | SOT-23 | 37,860 | ₹5.38 · 37,860 in stock | View |
 | LR431ATSLT1G#C190449LRC · SOT-23 | LRC | SOT-23 | 1,100 | ₹5.65 · 1,100 in stock | View |
 | LR431ATLT1G#C79252LRC · SOT-23 | LRC | SOT-23 | 91,150 | ₹7.00 · 91,150 in stock | View |
 | LTL431ATSLT1G#C2912066LRC · SOT-23 | LRC | SOT-23 | 3,140 | ₹5.19 · 3,140 in stock | View |
 | LR431APHLT1G#C2972811LRC · SOT-23 | LRC | SOT-23 | 1,360 | ₹6.42 · 1,360 in stock | View |
