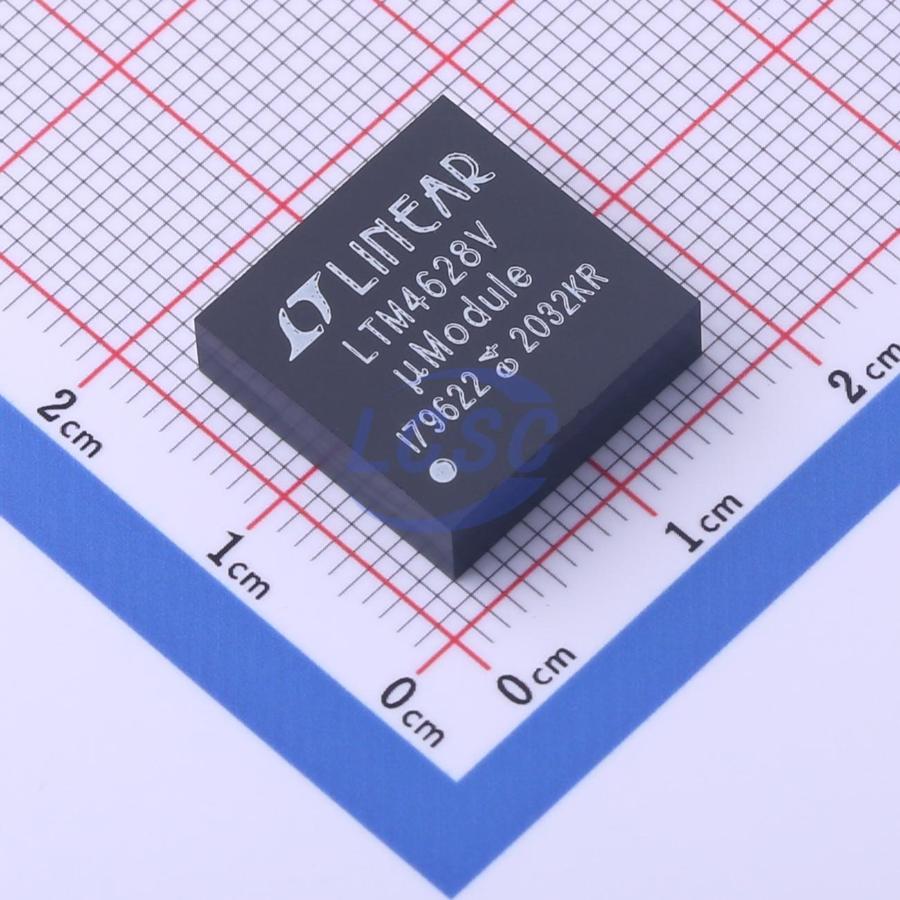

LTM4628IV#PBF ADI

LTM4628IV#PBF

Step-down type 600mV~5.5V 4.5V~26.5V LGA-144(15x15) DC DC Converters RoHS

LGA-144(15x15)ROHS3 CompliantActive

Dual 8A or Single 16A DC/DC μModule Regulator

Manufacturer: ADI
Manufacturer part #: LTM4628IV#PBF
Store part #: C494500
Package / case: LGA-144(15x15)
Category: DC DC Converters
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C494500

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹5,450.23	₹5,450.23
5+	₹4,969.28	₹24,846.40
30+	₹4,729.04	₹1,41,871.20

Quantity (min 1)

1 × ₹5,450.23

₹5,450.23

excl. GST

₹6,431.27 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 119 per tray

LTM4628IV#PBF

₹5,450.23 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Function: Step-down type
Output Voltage: 600mV~5.5V
Ripple Noise: 15mVp-p
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 5mA
Voltage - Supply: 4.5V~26.5V
Number of Outputs: 2
Iout: 8A
Output Voltage Accuracy: ±1.5%
Height: 4.32mm
Frequency - Switching: 500kHz
Features: Programmable output voltage;Remote sampling compensation;Over Current Protection;External clock synchronization;Light load efficient mode;Power-on timing control
Length: 15mm
Width: 15mm

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tray
Standard pack: 119 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 2.8 g
